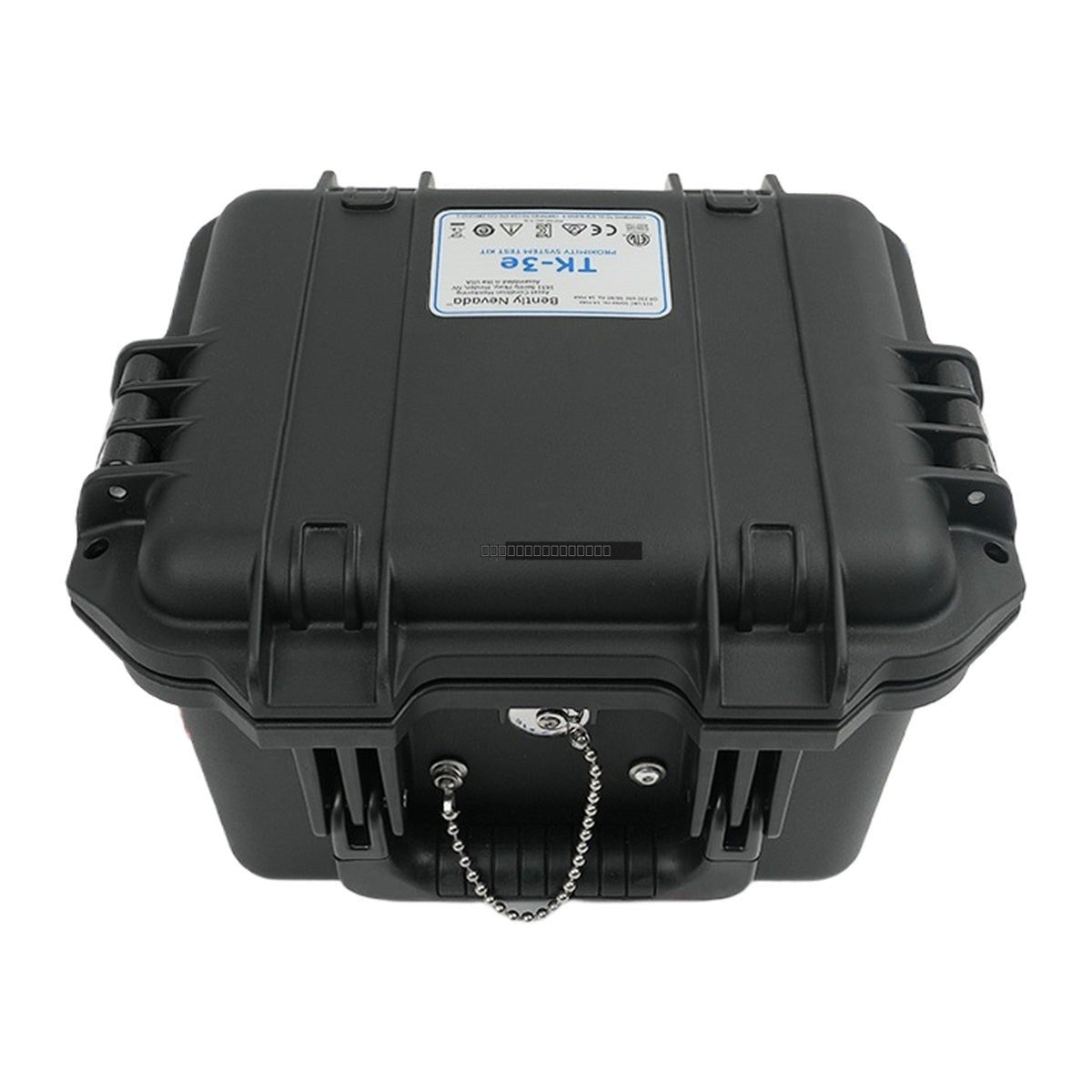

The Bently Nevada TK-3E 177313-02-01-00 is a portable Proximity System Test Kit designed for the static and dynamic verification of proximity transducer systems. This kit enables technicians to simulate shaft vibration and position, ensuring that transducer inputs and monitor readouts are accurately calibrated.
Features
Simulates shaft vibration and position for precise calibration of Bently Nevada monitoring equipment.

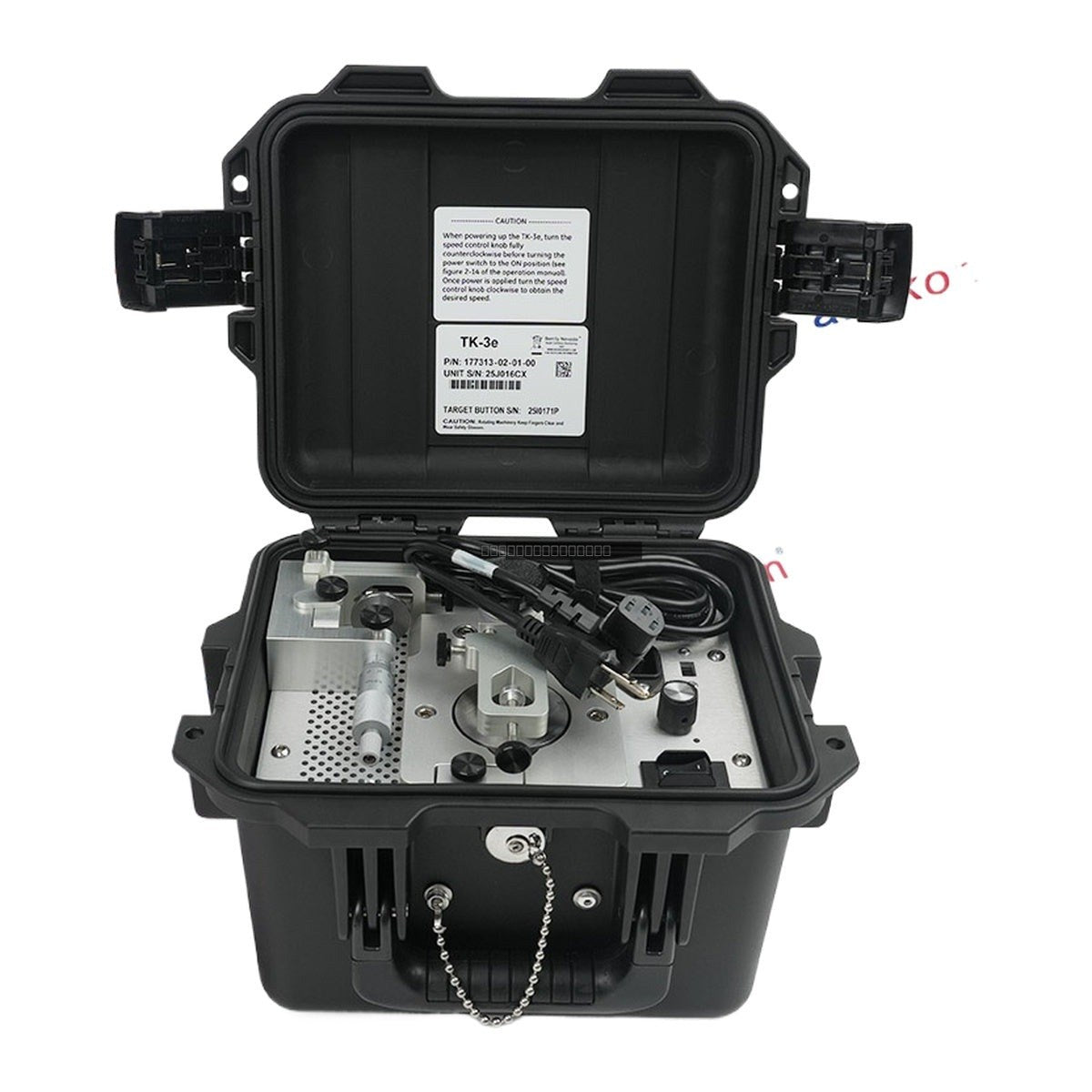

Includes a removable spindle micrometer assembly for checking transducer system and position monitor calibration.
Universal probe mount accommodates probe diameters from 5 mm to 19 mm (0.197 to 0.75 in).
Features a magnetic base on the spindle micrometer assembly for stable field use.
Supports both static and dynamic verification of proximity probes.
Applications
Predictive maintenance for pumps, compressors, and motors in petroleum and chemical refineries.
Calibration of vibration monitoring systems for generators and steam turbines in the power generation industry.
Verification of axial position and radial vibration sensors for rotating machinery.
Aircraft engine vibration monitoring calibration in the aerospace sector.
Technical Specifications
Model
TK-3E 177313-02-01-00
Manufacturer
Bently Nevada
Spindle Micrometer Range
25.4 mm
Power Cord Type
American
Scale Units
Metric
Weight
5.1 kg
Installation Guidelines
Ensure the test kit is placed on a stable, vibration-free surface during operation.
To zero the system, insert the probe into the spindle micrometer until the tip lightly touches the target button, then set the micrometer to 0.000.
Perform incremental gapping by moving the target away from the probe tip in precise, calibrated increments (e.g., 250 µm or 10 mils).
Use a high-impedance digital multimeter to record the DC voltage output from the Proximitor sensor at each increment.
Compare recorded voltage changes against the expected scale factor (typically 7.87 mV/µm or 200 mV/mil).
Always disconnect power before performing maintenance or cleaning of the test kit components.
FAQ
What is the TK-3E 177313-02-01-00?
The Bently Nevada TK-3E 177313-02-01-00 is an electrically driven, portable calibration kit used to verify the performance of proximity transducer systems and associated monitoring equipment.
What is the difference between the -01 and -02 power cord options?
The -01 order code indicates an American (USA) standard power cord, while the -02 indicates a European standard power cord.
What is the range of the vibration signal?
The mechanical vibration signal generated by the internal wobble plate mechanism can range from 50 to 254 µm (2 to 10 mils) peak-to-peak.
