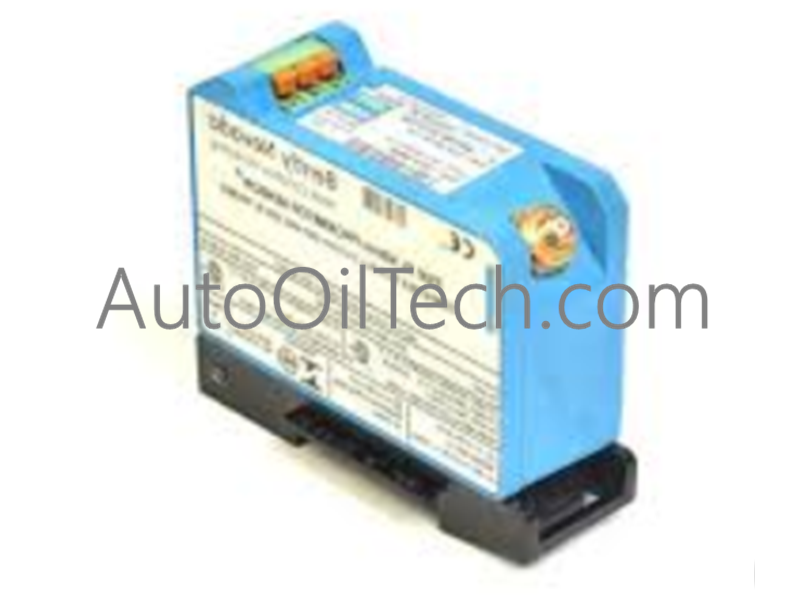

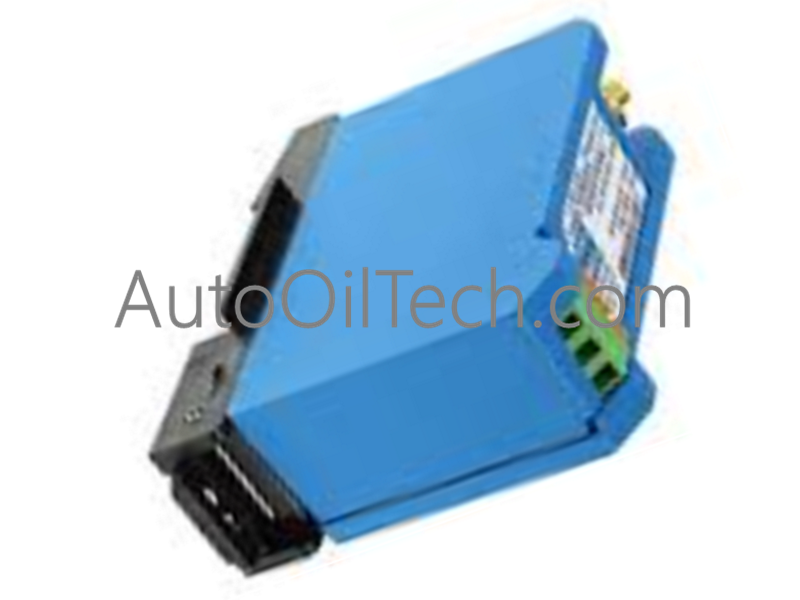

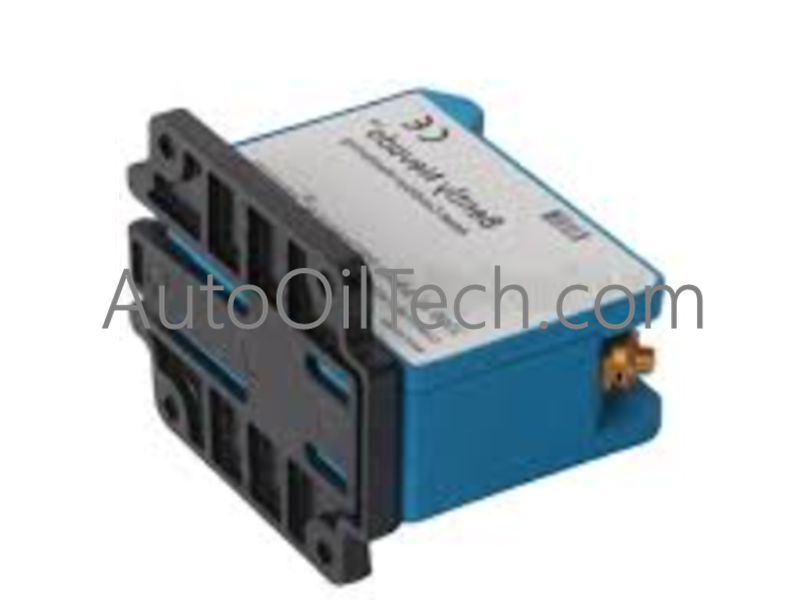

Bently Nevada conditioner 330980-70-00

Engineering Purpose

The 330980-70-00 is a specialized proximity signal conditioner designed for the 3300 XL NSv (Narrow Side-view) transducer system. This system is engineered for vibration and position monitoring in constrained environments where standard probes would experience interference from surrounding metal. It is the primary solution for monitoring small-diameter shafts (under 50 mm) in gearboxes, pumps, and aero-derivative turbines.

Technical Data Summary

• Component Type: 3300 XL NSv Proximitor Sensor

• Part Number: 330980-70-00

• System Length: 7.0 meters (23.0 feet)

• Scale Factor: 7.87 V/mm (200 mV/mil)

• Measurement Type: Eddy current displacement

• Frequency Response: DC to 10 kHz

• Operating Temperature: -35°C to +100°C

• Weight: 1.36 kg (3.0 lbs)

Decoding the Model Configuration

• 330980: Bently Nevada 3300 XL NSv (Narrow Side-view) Proximitor series base platform.

• 70: Total Length and Mounting Option. Factory-calibrated for a 7.0-meter system length. This specific option ensures the sensor is tuned to the electrical capacitance of a 7.0m combined probe and extension cable.

• 00: Agency Approval Option. Standard configuration for non-hazardous or general industrial locations.
