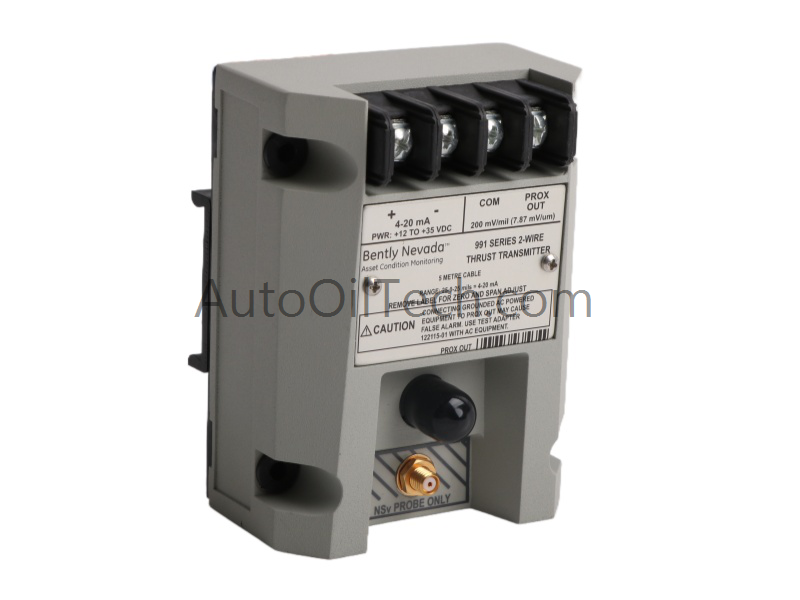

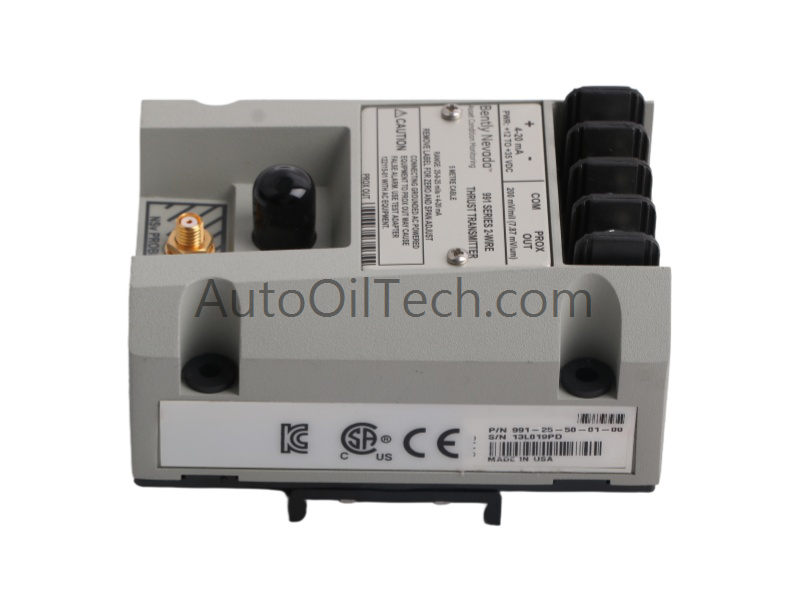

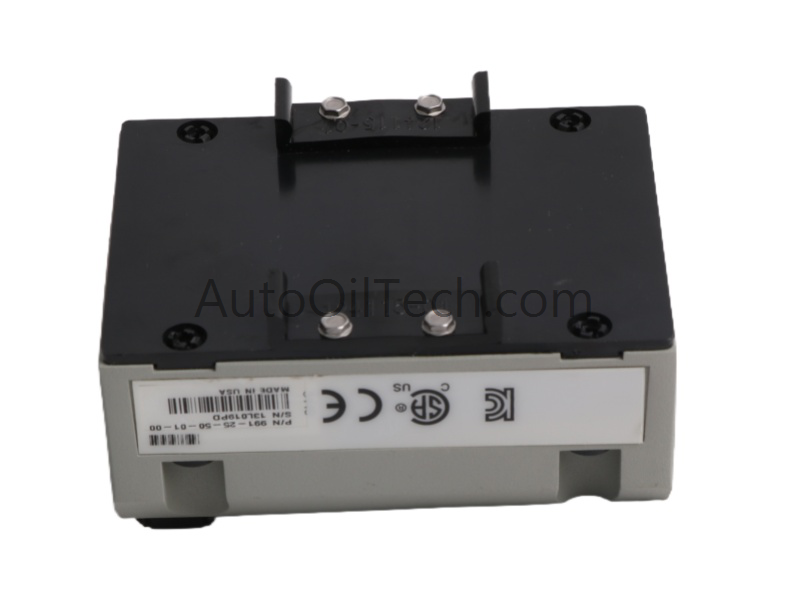

The 991-25-50-02-00 Bently Nevada 991 Thrust Transmitter is a compact, loop‑powered device designed for thrust position monitoring in critical rotating machinery. Featuring an integrated Proximitor® Sensor, it eliminates the need for external units and provides both vibration and gap voltage outputs for comprehensive diagnostics.
Technical Specifications
Parameter
Value
Model Number
991-25-50-02-00
Module Type
Thrust Transmitter
Manufacturer
Bently Nevada
Product Range
991 Thrust Transmitter
Dimension
1.8 × 1.6 × 123 cm
Weight
0.06 kg
Output Signal
Dynamic vibration + gap voltage
Terminals
PROX OUT, COM, coaxial diagnostic output
Adjustments
Zero and span potentiometers
Features
Test input pin, Not OK/Signal Defeat, power‑up inhibit
Mounting Options
DIN‑rail clips, bulkhead screws
Construction
Potted, withstands 100% condensing humidity
Probe Compatibility
3300 NSv proximity probes
Compliance
API 670
Origin
USA
Condition
Brand New
MOQ
1
HS Code
8537101190
Functional Description
The 991-25-50-02-00 thrust transmitter delivers accurate thrust position measurements with integrated diagnostics. Its power‑up inhibit circuit prevents transient signal errors, while the Not OK/Signal Defeat circuit eliminates false alarms from faulty probes or loose connections. Potted construction ensures durability in high‑humidity environments, and compatibility with 3300 NSv probes allows installation in tight spaces with minimal clearance.
Applications and Compatibility
Compatible with Bently Nevada 3300 NSv proximity probes.
Ideal for centrifugal air compressors and machinery with limited clearance.
Provides thrust position monitoring in both normal and counter directions.
Suitable for predictive maintenance and machinery protection programs.
Designed for harsh industrial environments with condensing humidity conditions.
