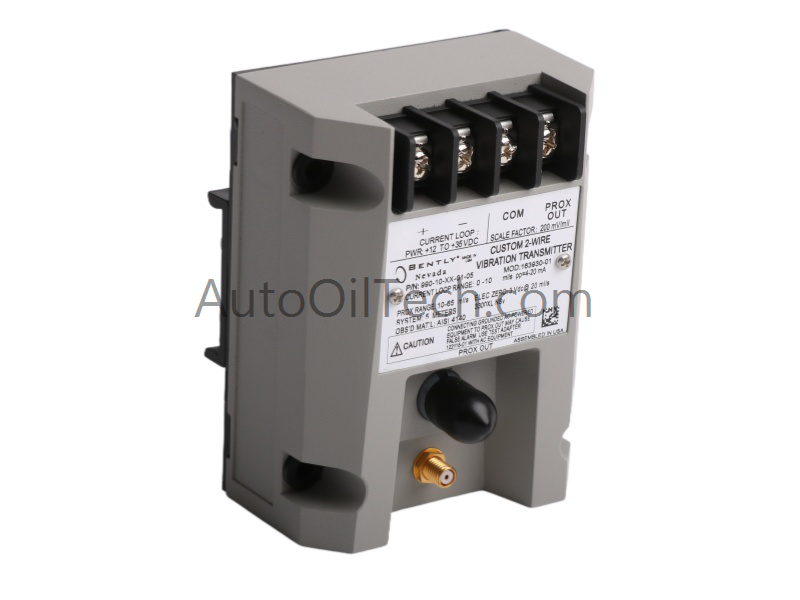

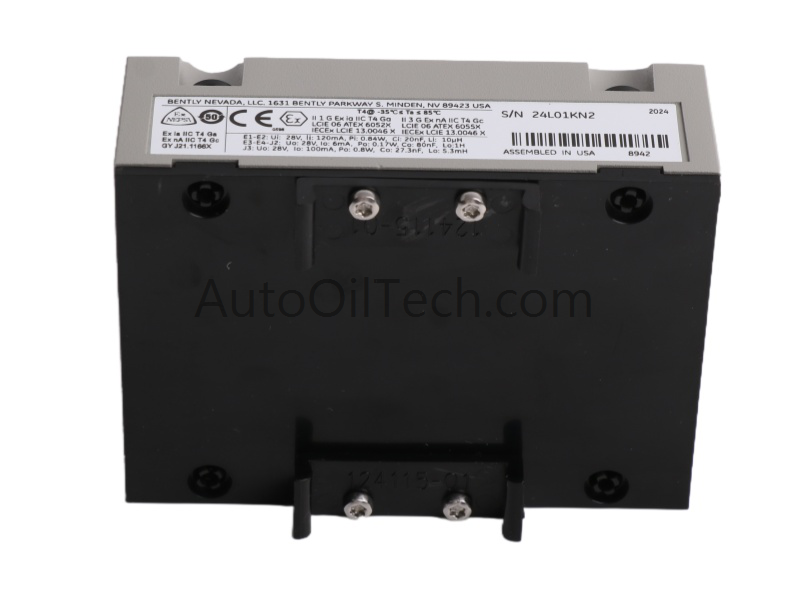

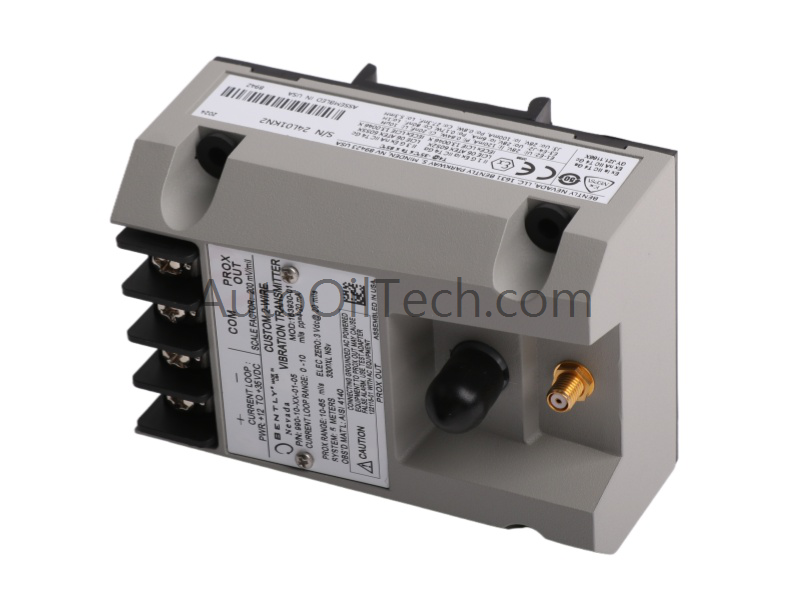

The Bently Nevada 990-10-XX-01-05 MOD:165353-07 transmitter delivers accurate vibration measurements for compressors, pumps, motors, and fans. The 2‑wire loop‑powered design simplifies integration with industrial control systems. The transmitter converts proximity probe signals into a proportional 4–20 mA output that supports machinery protection and predictive maintenance.
Structural Design
The 990-10-XX-01-05 MOD:165353-07 integrates a proximitor sensor that eliminates the need for external signal‑conditioning modules. The compact housing supports DIN‑rail mounting and fits easily into confined control panels. The transmitter operates within a 12–24 VDC loop voltage range, offering flexibility for diverse power configurations.
Technical Specifications
Mechanical & Electrical Parameters
Parameter
Value
Model Number
990-10-XX-01-05 MOD:165353-07
Module Type
990 Vibration Transmitter
Measurement Range
0–10 mils peak‑to‑peak
Frequency Response
5–6000 Hz (±3 dB)
Output Signal
4–20 mA
Power Requirement
12–24 VDC loop‑powered
Probe Compatibility
3300 NSv proximity probe
System Lengths
5 m or 7 m
Minimum Target Diameter
9.5 mm
Terminals
Dynamic vibration and gap voltage
Mounting
DIN rail
Weight
0.44 kg
Dimensions
10 × 7.5 × 5.2 cm
Origin
USA
Condition
Brand New
HS Code
8537101190
System Compatibility
TSI systems
Additional Attributes
The integrated proximitor sensor reduces installation complexity in OEM equipment.
The 4–20 mA output supports direct connection to PLCs and DCS systems.
The compact housing fits easily into small machinery control enclosures.
The transmitter supports predictive maintenance strategies for rotating equipment.
Application & Compatibility
Where the 990-10-XX-01-05 MOD:165353-07 Performs Best
The Bently Nevada 990-10-XX-01-05 MOD:165353-07 supports centrifugal compressors, small pumps, industrial motors, and cooling fans. The transmitter suits OEM machinery requiring compact vibration monitoring solutions. The design ensures stable performance in environments with continuous mechanical loading and thermal variation.
Compatible Use Cases
OEM compressor vibration monitoring
Pump and motor protection systems
Fan and blower vibration diagnostics
PLC‑based machinery protection
Predictive maintenance programs using 4–20 mA inputs
