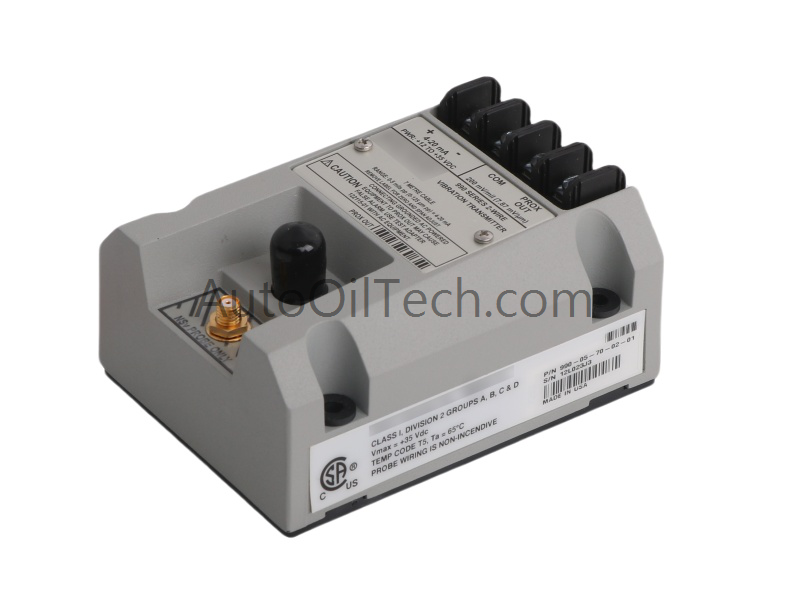

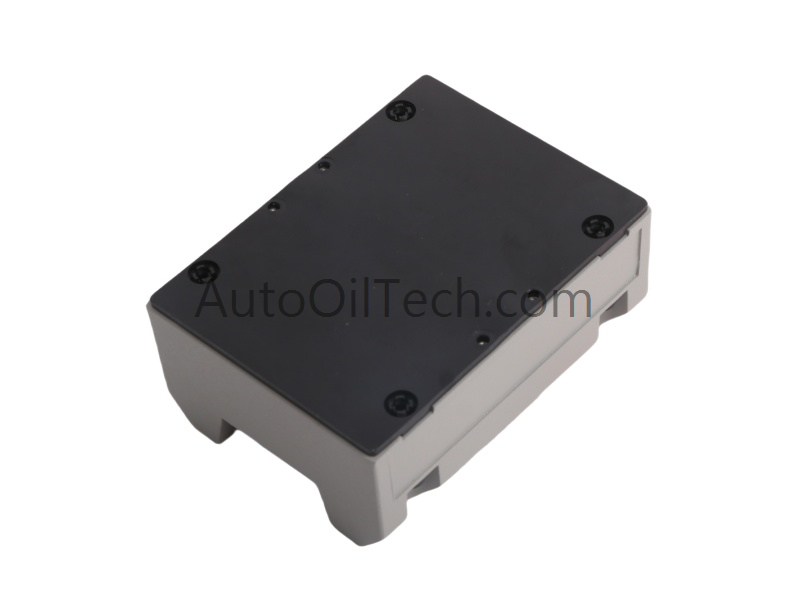

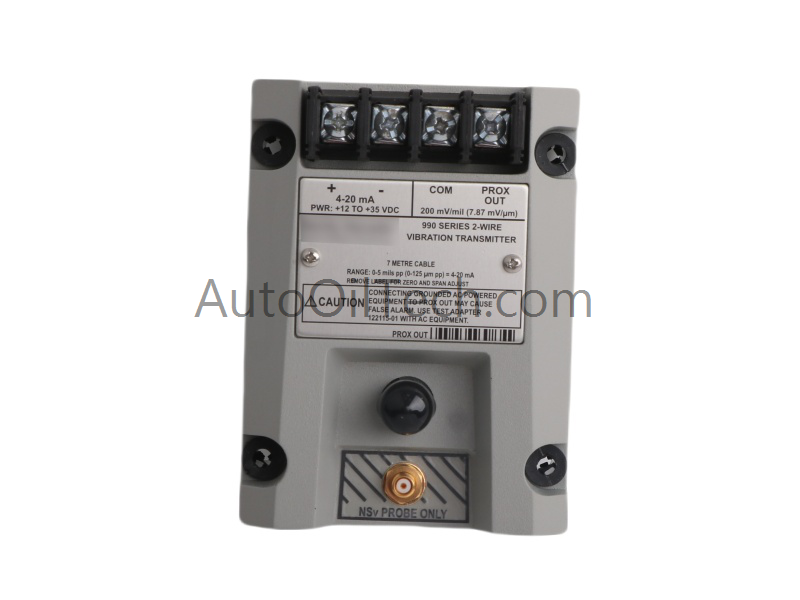

The Bently Nevada 990-05-70-02-01 Vibration Transmitter is part of the 990 series, designed to provide a simple and reliable vibration monitoring solution for smaller, non-critical machinery. It delivers a 4–20 mA output signal proportional to relative vibration, making it ideal for OEMs producing centrifugal compressors, pumps, motors, and fans.
Technical Specifications
Parameter
Value
Model Number
990-05-70-02-01
Module Type
Vibration Transmitter
Manufacturer
Bently Nevada
Condition
Brand New
Series
990 series
Dimensions
7.4 × 4.6 × 10 cm
Weight
0.44 kg
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System Compatibility
TSI
Communication Service
Ethernet router
Functional Description
The 990-05-70-02-01 transmitter accepts input from a Bently Nevada 3300 NSv proximity probe and extension cable (available in 5 m and 7 m lengths). As a two-wire, loop-powered device, it draws operating power from the same wires used to transmit its output signal.
Its core function is to condition probe signals into engineering units representing peak-to-peak vibration amplitude, then output this as a 4–20 mA current. This industry-standard signal integrates easily into control systems, enabling alarms, shutdowns, or other protective logic based on vibration levels. A key feature is the integrated Proximitor sensor, simplifying installation and reducing system complexity.
