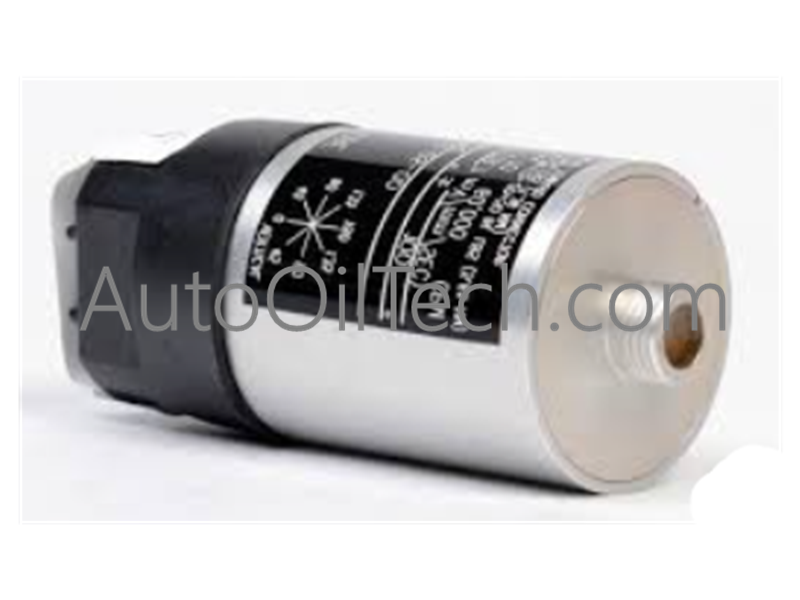

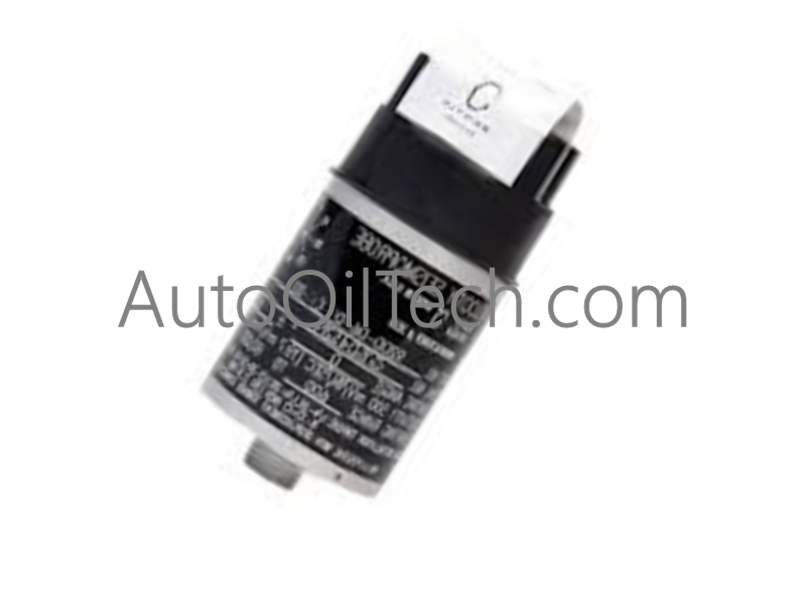

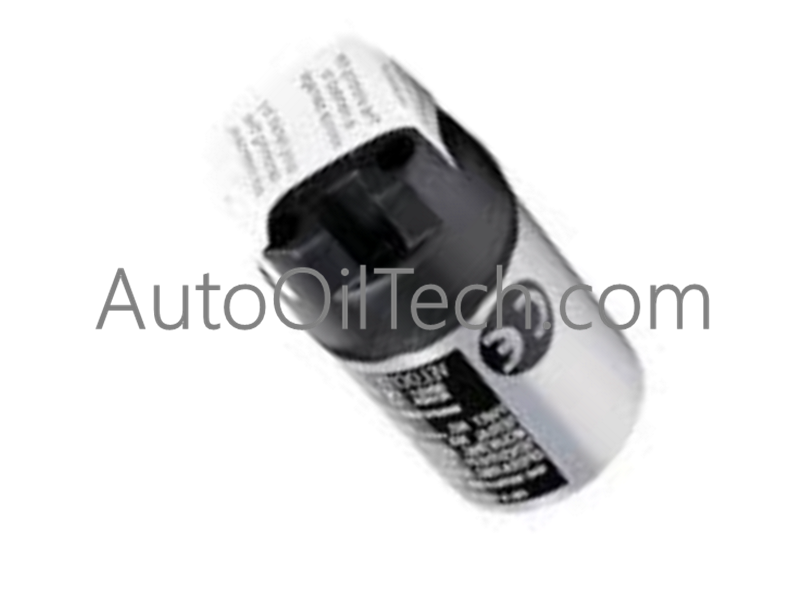

Bently Nevada 9200-03-06-10-00 Velocity Sensor

Engineering Purpose

The 9200-03-06-10-00 is a self-powered velocity transducer designed for absolute vibration measurement on machine casings and bearing housings. Utilizing a moving-coil design, it generates a voltage output directly proportional to vibration velocity. This sensor is a cornerstone for monitoring mid-frequency mechanical faults like imbalance and misalignment in motors, pumps, and fans.

Technical Data Summary

• Component Type: Velocity Seismoprobe (Transducer)

• Part Number: 9200-03-06-10-00

• Measurement Principle: Moving-coil (Self-generating)

• Output Signal: Voltage proportional to velocity

• Mounting: 1/4-28 UNF mounting stud

• Connector: Top-exit MIL-style connector

• Cable Length: 6 feet (approx. 1.8 meters)

• Power Requirement: None (Self-powered)

Decoding the Model Configuration

• 9200: Bently Nevada 9200 series velocity seismoprobe platform.

• 03: Sensitivity & Velocity Option. Configured for standard high-performance velocity monitoring.

• 06: Mounting & Base Option. Optimized for specific industrial mounting requirements using a 1/4-28 UNF stud.

• 10: Connector/Cable Option. Features a Top-exit MIL-style connector paired with a 6-foot integral or accessory cable.

• 00: Agency Approval Option. Standard version for general industrial or non-hazardous locations.
