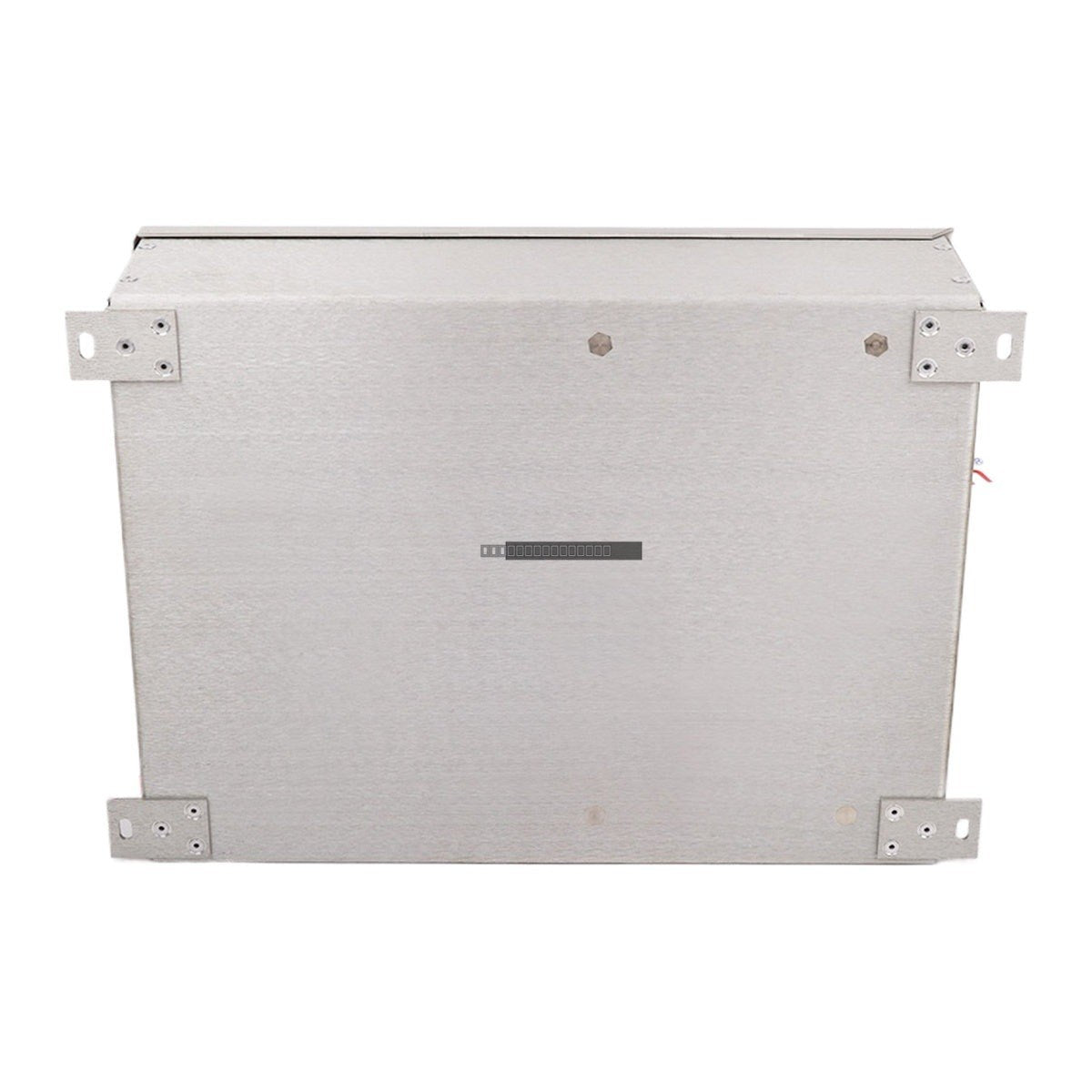

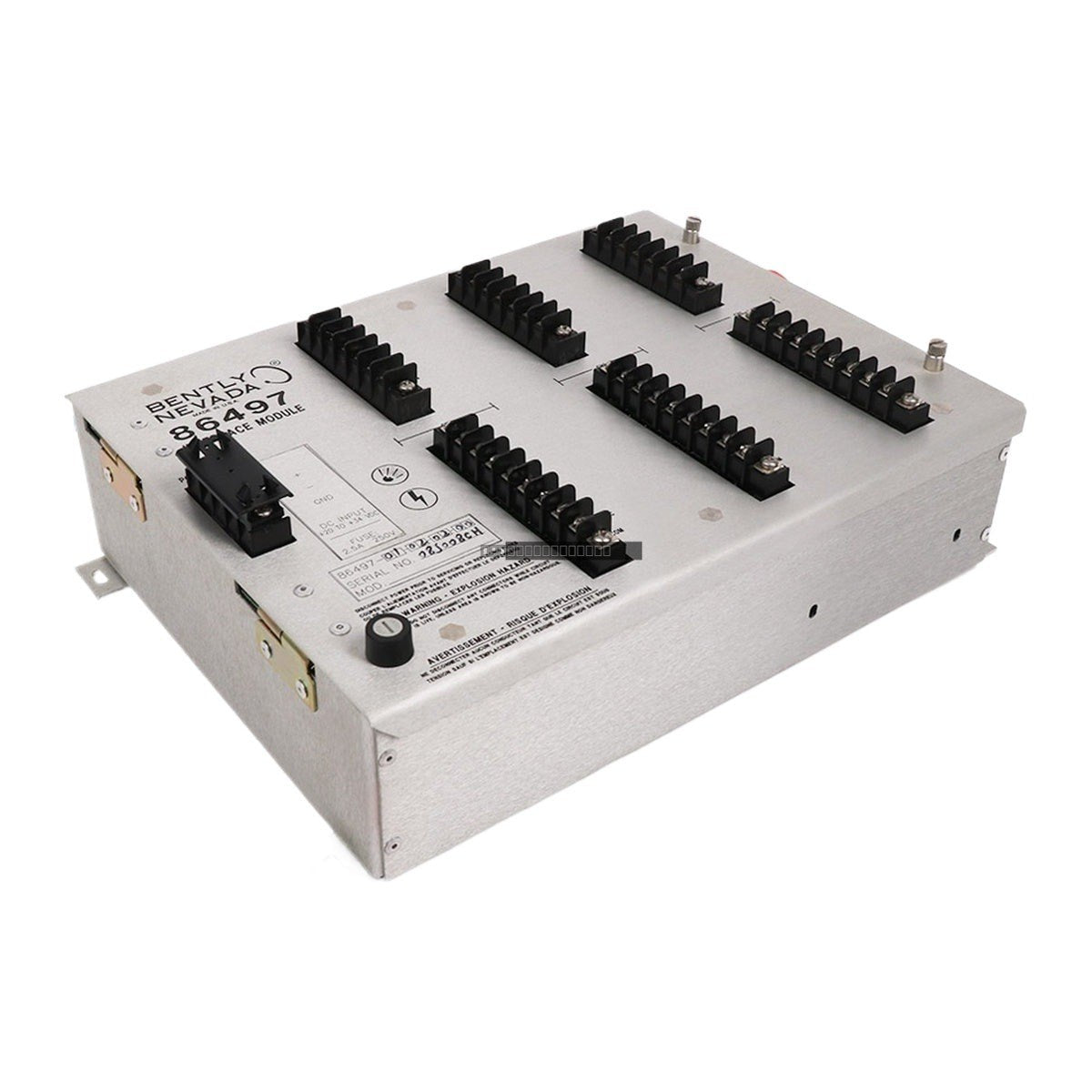

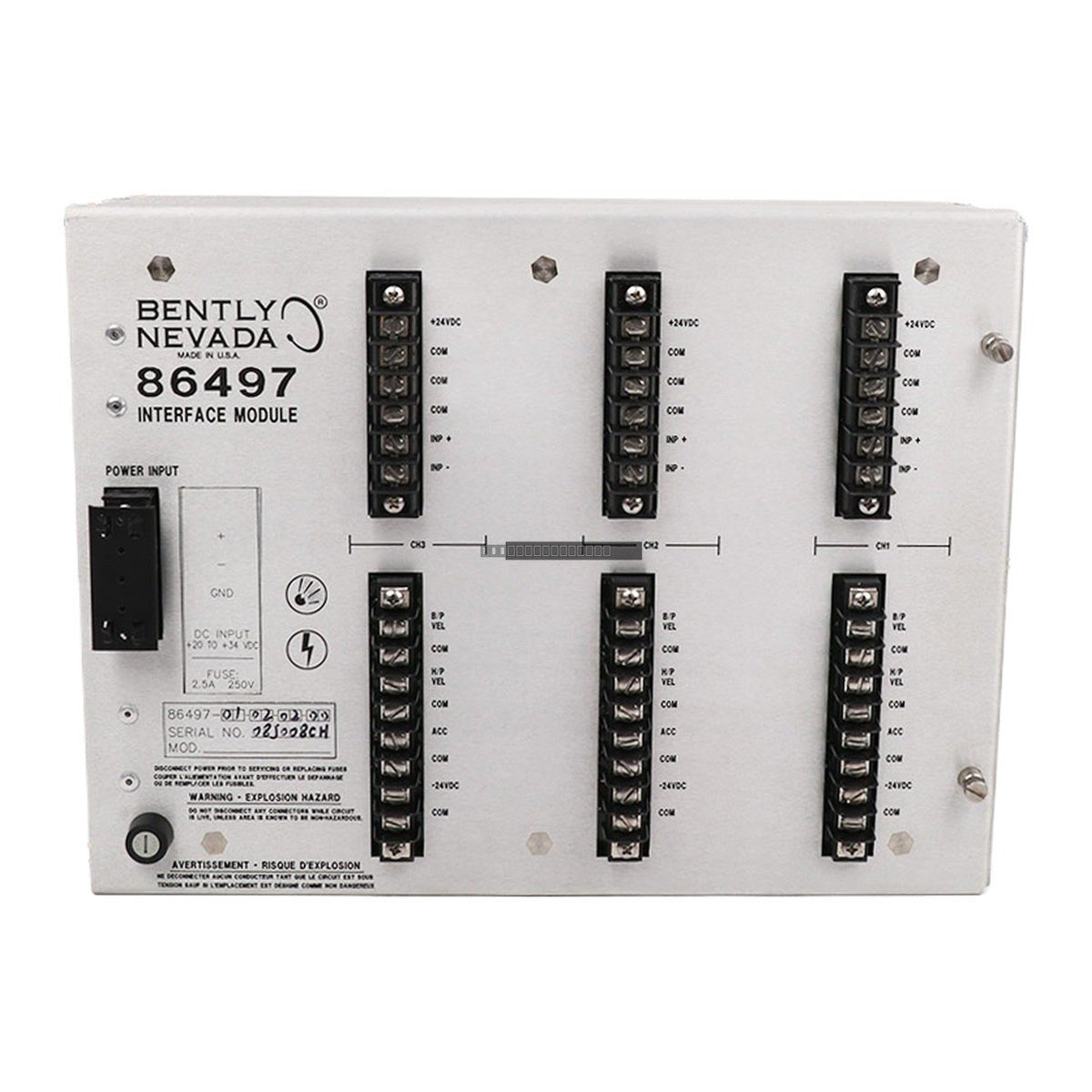

The Bently Nevada 86497-01-02-02-00 is an interface module designed for industrial monitoring and control systems. This module facilitates reliable signal processing and interconnection within the Bently Nevada architecture, ensuring robust performance in demanding environments.
Features
Input voltage range: 20-34 VDC
Integrated 2.5 Amp @ 250 V fuse for circuit protection
Configured with 6 groups of 8 points for high-density signal management
Designed for high reliability in harsh industrial conditions
Technical Specifications
Model
86497-01-02-02-00
Input Voltage
20-34 VDC
Fuse Rating
2.5 Amp @ 250 V
I/O Configuration
6 groups of 8 points
Operating Temperature
-40 degC to +70 degC
Storage Temperature
-50 degC to +85 degC
Humidity
0-95% RH (non-condensing)
Vibration Resistance
5g (10-500Hz)
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module to prevent electrical damage.
Mount the module in a clean, dry, and vibration-controlled environment, adhering to standard industrial rack or panel mounting practices.
Verify that all wiring connections are secure and that the input voltage is within the specified 20-34 VDC range.
Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
Use shielded cabling for signal lines to minimize electromagnetic interference (EMI) in high-noise industrial environments.
FAQ
What is the primary function of the 86497-01-02-02-00?
This unit serves as an interface module, providing signal distribution and protection for monitoring systems, featuring 6 groups of 8 points for organized connectivity.
What are the power requirements for this module?
The module operates on a DC input voltage range of 20-34 VDC and includes an integrated 2.5 Amp fuse rated for 250 V.
Is this module suitable for extreme temperatures?
Yes, the module is rated for operation in temperatures ranging from -40 degC to +70 degC, making it suitable for a wide variety of industrial field applications.
