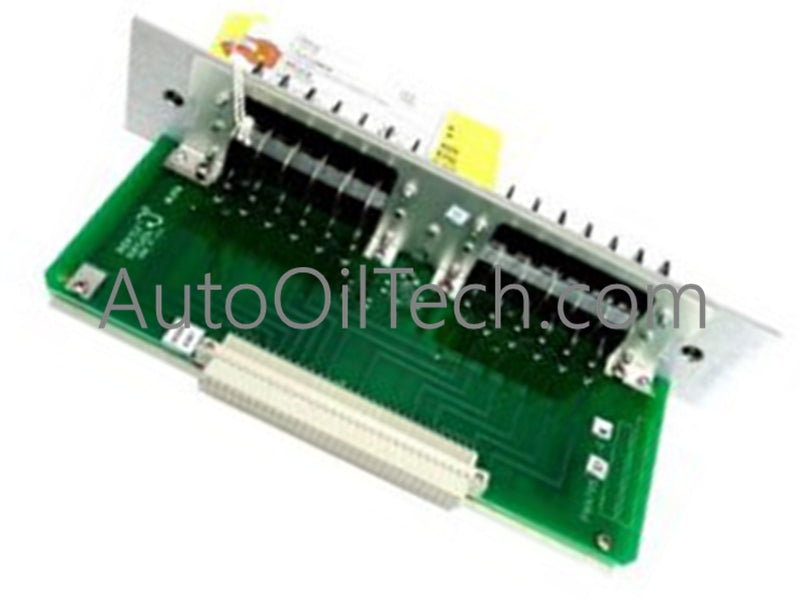

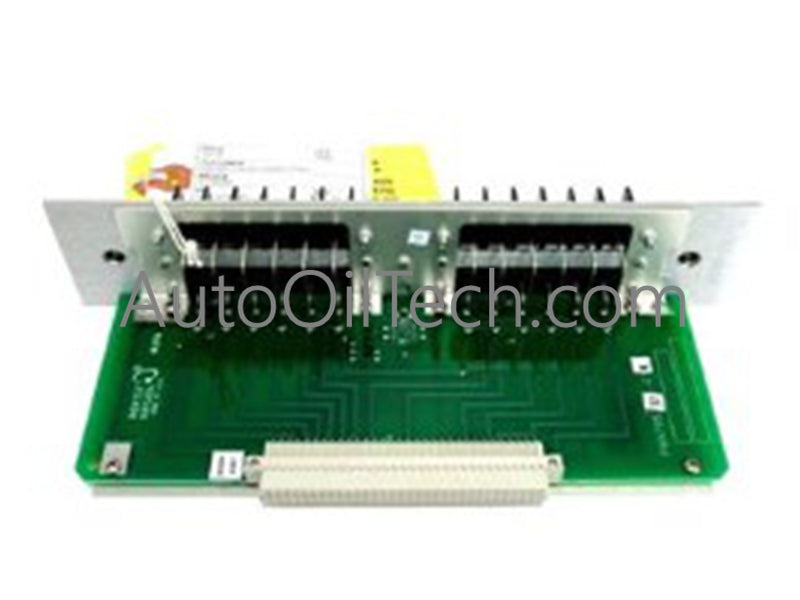

Bently Nevada 80074-02 Velocity Sensor Interface

Product Overview

The Bently Nevada 80074-02 is a specialized Velometer I/O and Record Terminal Module engineered to bridge field-mounted velocity transducers (Velometers) with Bently Nevada’s machinery protection monitors. This passive module acts as a high-reliability termination point, ensuring that critical vibration signals are transmitted from the machine casing to the monitoring system without loss or distortion.

Technical Specifications

• Brand/Manufacturer: Bently Nevada

• Model Number: 80074-02

• Category: Velometer I/O and Record Terminal Module

• Compatible Transducers: Velometers (Velocity Transducers)

• Number of Input Channels: Supports up to 6 channels

• Weight: 0.45 kg (Approx. 1.0 lb)

• Dimensions (H x W x D): 241 mm x 24.4 mm x 99.1 mm

• Connection Type: Terminal block for field wiring and recorder outputs

Key Features

• Six-Channel High Density: Maximizes rack efficiency by allowing up to six separate velocity sensors to be connected to a single module slot.

• Passive Signal Transmission: Ensures that the low-voltage signals from Velometers remain accurate and unaffected by internal electronic interference.

• Dedicated Record Terminals: Provides independent outputs for each channel, allowing users to connect external data recorders or analyzers without disturbing the primary protection loop.

• Streamlined Field Wiring: Features robust screw-terminal blocks designed for easy installation and secure wire retention in high-vibration areas.

• Universal 3500 Compatibility: Designed to integrate seamlessly into the Bently Nevada 3500 series architecture, fitting standard I/O slots at the rear of the rack.
