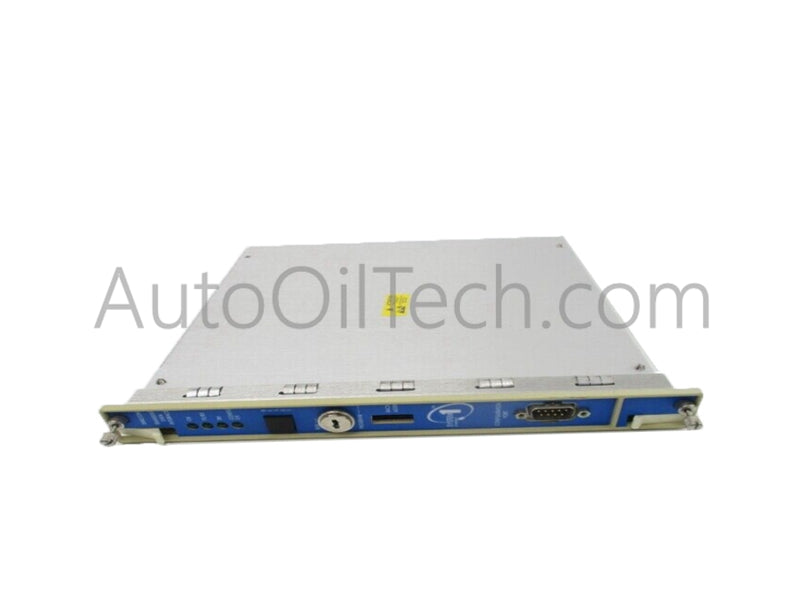

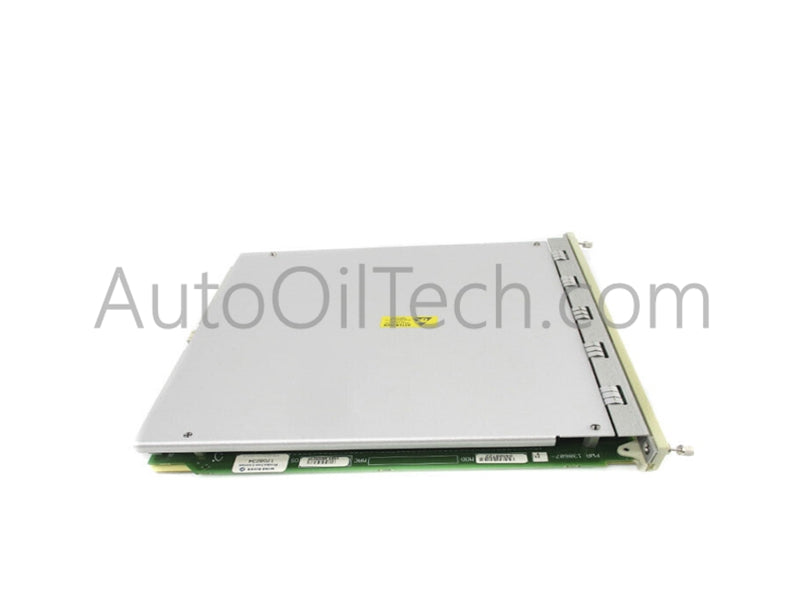

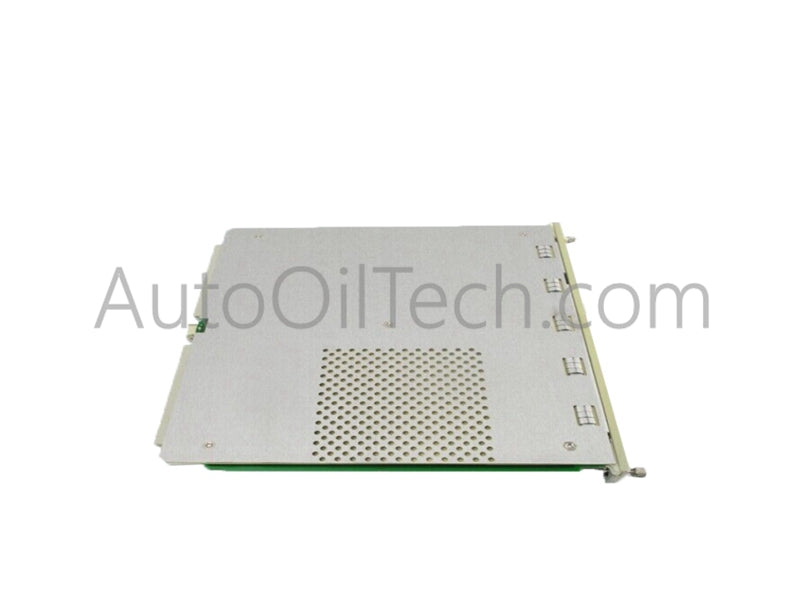

The Bently Nevada 3500/91-01-01-01 EGD Communication Gateway Module is a specialized interface module within the 3500 Machinery Protection System. It provides secure and reliable communication between the 3500 rack and external systems using Ethernet Global Data (EGD) protocol, enabling seamless integration with plant control and monitoring networks.
Specifications
Manufacturer: Bently Nevada (Baker Hughes)
Model: 3500/91
Part Number: 3500/91-01-01-01
Product Type: EGD Communication Gateway Module
Function: Transfers machinery protection and condition monitoring data from the 3500 rack to external systems
Protocol Supported: Ethernet Global Data (EGD)
Rack Compatibility: Fits into any slot in the 3500 rack except the power supply slots
Power Supply: Provided by the 3500 rack backplane
Operating Temperature: -40 °C to +65 °C
Shipping Weight: ~2 kg
Features
EGD Protocol Support: Enables high-speed Ethernet Global Data communication for real-time integration
Data Integration: Provides machinery protection and condition monitoring data to external systems
Flexible Connectivity: Designed for seamless communication with plant networks and control systems
Secure Communication: Ensures reliable data transfer between the 3500 rack and external platforms
Industrial Grade: Rugged design for continuous operation in demanding environments
