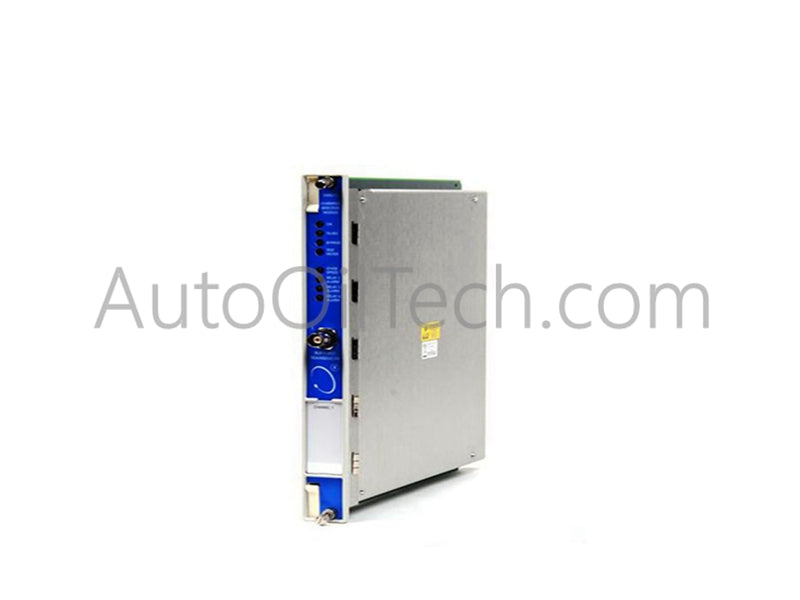

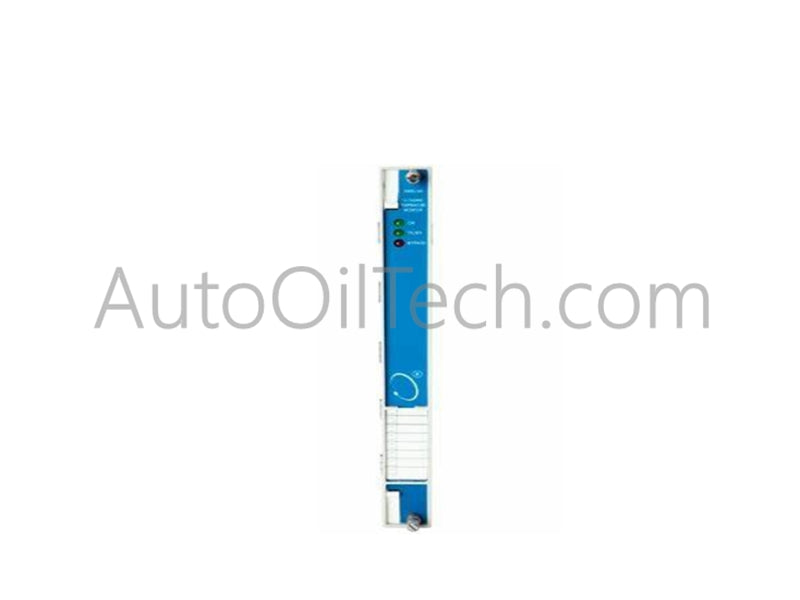

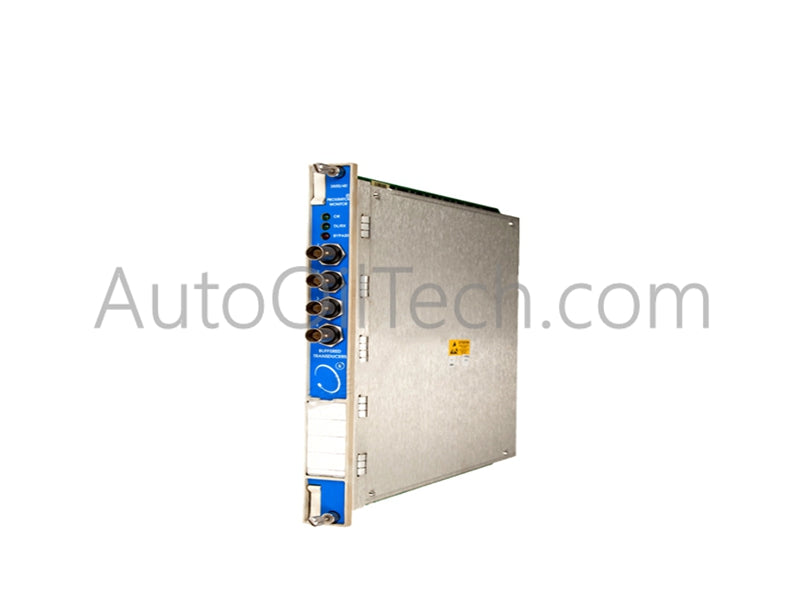

Bently Nevada 3500/22M 288055-02 Transient Data Interface Module

Description

The Bently Nevada 3500/22M (part number 288055-02) is a Transient Data Interface (TDI) module designed for the 3500 Series machinery protection system. It combines the functions of a Rack Interface Module (RIM) with advanced transient data collection, providing seamless communication between the 3500 monitoring rack and diagnostic software such as System 1 Condition Monitoring.

Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Model Number: 3500/22M

• Part Number: 288055-02

• Type: Transient Data Interface Module (TMR version with USB cable)

• Functions: Combines Rack Interface Module + Communication Processor

• Data Capture: Steady-state and transient dynamic waveform data

• Communication: Ethernet link to host software (System 1, 3500 Config Software)

• Compatibility: Works with M-series monitors (3500/40M, 3500/42M, etc.)

• Installation: Occupies slot adjacent to power supplies in 3500 rack

• Dimensions: 241.3 × 24.4 × 241.8 mm

• Weight: ~0.91 kg

• Condition: New, In Stock

• Origin: USA

• Warranty: 1 year

Features

• Integrated Functions: Replaces separate RIM and communication processors

• Transient Data Capability: Captures waveform and dynamic data for diagnostics

• Ethernet Connectivity: Fast and reliable data transfer to host systems

• System Compatibility: Designed for 3500 racks with M-series monitors

• Diagnostics: Provides static and dynamic data for predictive maintenance

• Flexible Integration: Supports System 1 Condition Monitoring software
