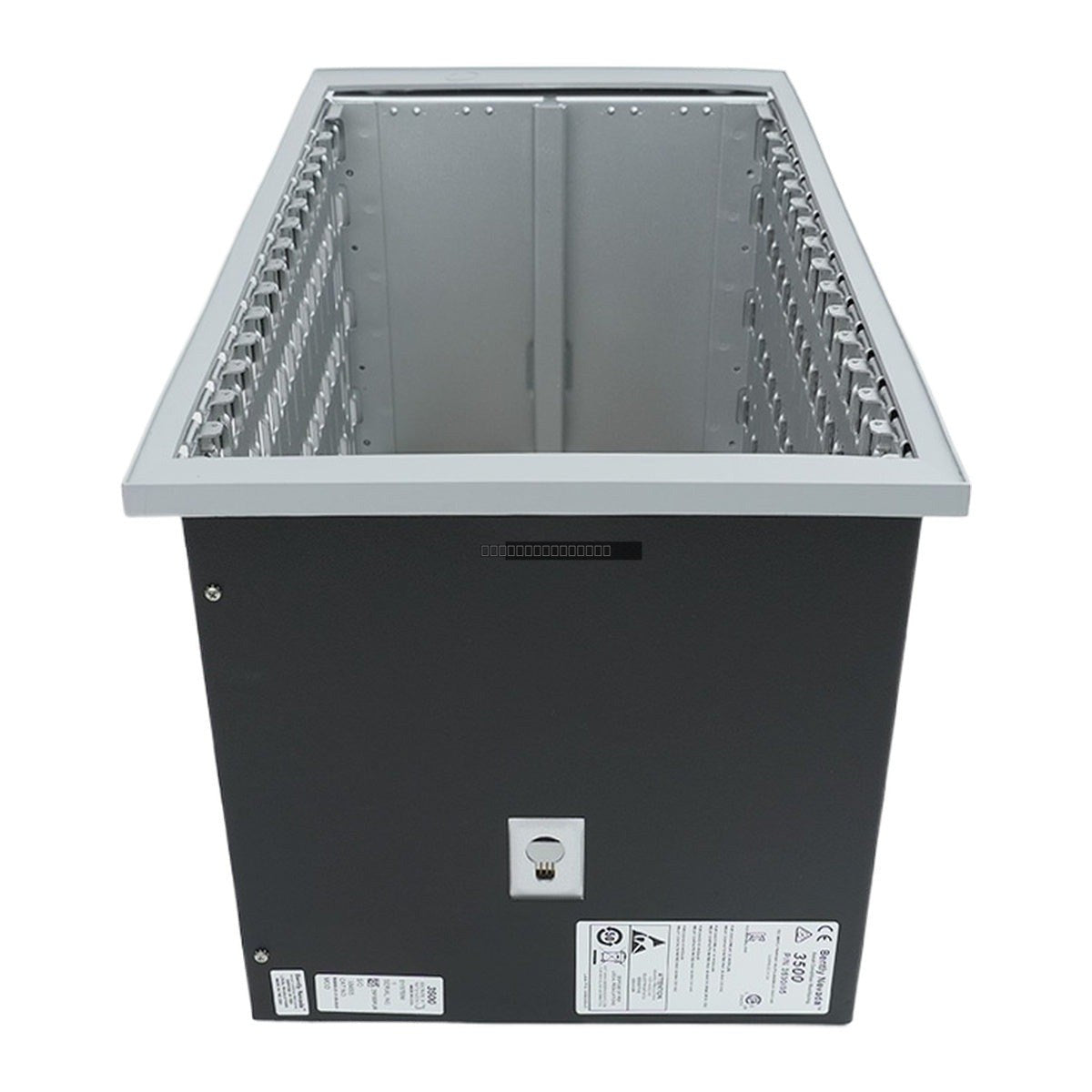

Bently Nevada 3500/05-01-01-00-00-01 System Rack

The Bently Nevada 3500/05-01-01-00-00-01 is a 19-inch full-size system rack designed to house the 3500 series machinery protection and condition monitoring components. This rack provides the necessary backplane communication and power distribution infrastructure for up to 14 monitoring modules, ensuring reliable integration within critical industrial environments.

Features

• 19-inch full-size rack configuration with 14 available module slots.
• Supports panel-mount installation for robust, integrated cabinet mounting.
• Dedicated far-left slots reserved for 3500/15 power supplies and the 3500/22M Transient Data Interface (TDI).
• Facilitates high-speed backplane communication between all installed monitor modules.
• CE compliant for international industrial standards.

Applications

• Oil & Gas: Monitoring of compressors, turbines, and pumps in refining and production.
• Power Generation: Vibration and process monitoring for thermal, hydro, and wind energy assets.
• Heavy Manufacturing: Critical machinery protection in pulp, paper, and mining operations.
• Maritime & Offshore: Suitable for deployment in offshore platforms and marine vessel monitoring systems.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry environment protected from excessive vibration and extreme temperatures.
• The rack secures to panel cutouts using the provided clamping hardware.
• Wiring connections and I/O modules are accessed from the rear of the rack for this specific configuration.
• Always power down the system before inserting or removing any 3500 monitor modules or power supplies to prevent electrical damage.
• Ensure proper grounding of the rack chassis to the cabinet earth bus to maintain signal integrity and safety.
• If utilizing internal barriers, a dedicated slot must be reserved for the 3500/04-01 Internal Barrier Earthing Module.

FAQs

What is the 3500/05-01-01-00-00-01?

It is a 19-inch full-size system rack designed to house Bently Nevada 3500 series monitoring modules, providing the physical housing, backplane communication, and power distribution for machinery protection systems.

How many modules can this rack accommodate?

This full-size rack features 14 slots for monitoring modules, in addition to the dedicated slots on the far-left side reserved for power supplies and the Rack Interface Module (RIM).

Where are the wiring connections located for this model?

For this panel-mount configuration, all wiring connections and I/O modules are accessed from the rear of the rack.

Is this rack compatible with all 3500 series modules?

Yes, this rack is designed to hold all standard 3500 monitor modules and power supplies, with the exception of specific hardware that may be restricted by the mini-rack format (which this full-size unit does not share).
