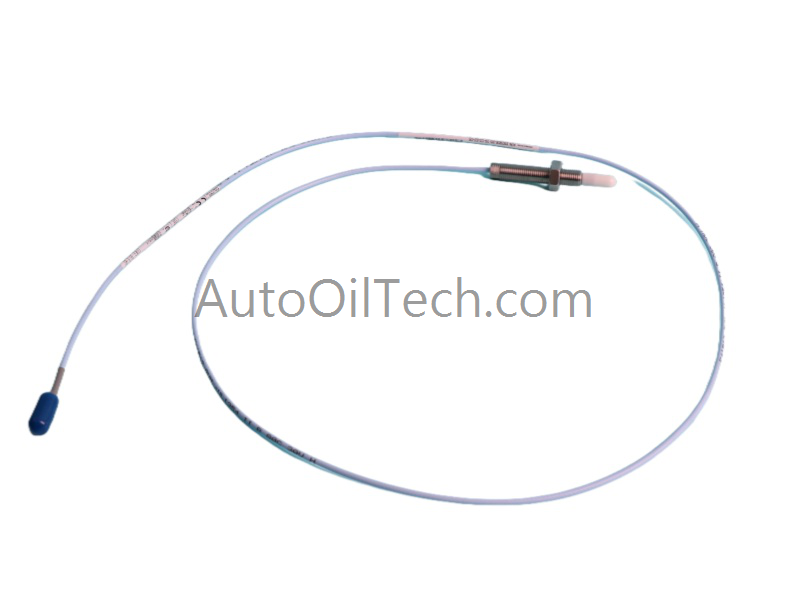

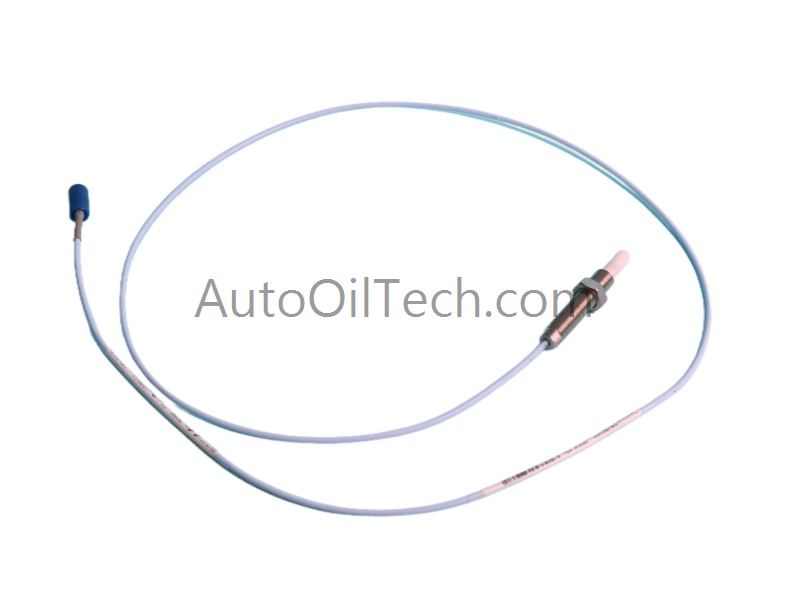

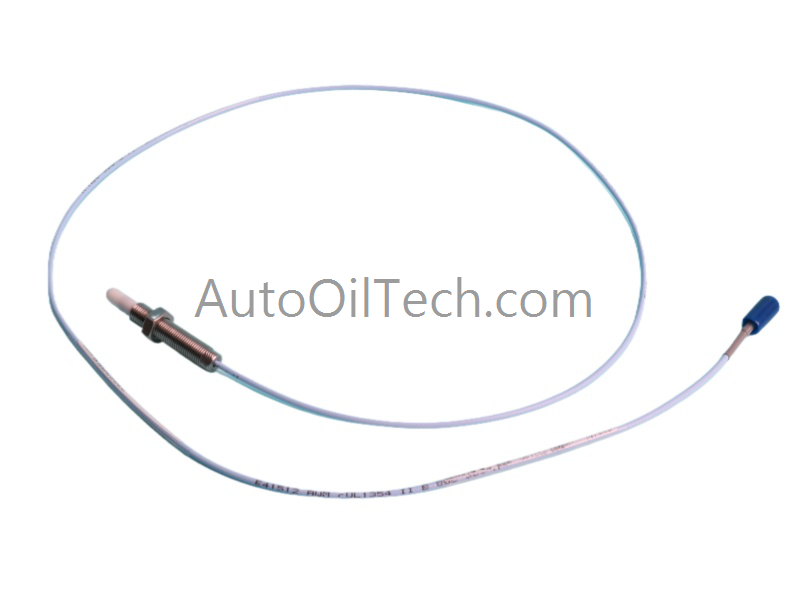

Bently Nevada 330908-00-18-10-02-05 3300 XL 25 mm Proximitor Sensor

Overview

The Bently Nevada 330908-00-18-10-02-05 Proximitor Sensor supports accurate vibration and position measurements for large rotating machinery. The 25 mm design provides extended measurement capability for applications requiring long linear range. The sensor integrates with the 3300 Proximity Transducer System and supports TSI protection platforms.

Structural Design

The 330908-00-18-10-02-05 offers armored and unarmored configurations with thread options including 1/4‑28, 3/8‑24, M8×1, and M10×1. The gold‑plated brass ClickLoc connectors lock securely during operation and prevent loosening in high‑vibration environments. The patented TipLoc molding process creates a strong bond between the probe tip and body, increasing long‑term durability.

The CableLoc design delivers a pull strength of 220 N (50 lb), ensuring secure attachment between the probe cable and tip. The sensor operates from −51°C to +100°C and stores safely from −51°C to +105°C. Connector protectors help prevent liquid ingress and maintain stable signal quality.

Technical Specifications

Mechanical & Electrical Parameters

Additional Attributes

• The TipLoc process increases mechanical strength in high‑load environments.

• The CableLoc design maintains secure cable retention during continuous operation.

• The ClickLoc connector ensures stable electrical contact in vibration‑intensive machinery.

• The sensor supports extended linear range for large‑displacement applications.

Application & Compatibility

Where the 330908-00-18-10-02-05 Performs Best

The Bently Nevada 330908-00-18-10-02-05 supports steam turbines, large compressors, and heavy rotating equipment requiring long‑range displacement monitoring. The rugged construction suits environments with high vibration, thermal cycling, and fluid exposure. The sensor integrates with 3300 XL Proximitor modules to deliver stable and accurate displacement data.

Compatible Use Cases

• Large‑shaft vibration monitoring

• Differential expansion measurement

• Turbine thrust position monitoring

• High‑temperature industrial machinery

• Systems requiring 25 mm linear range capability
