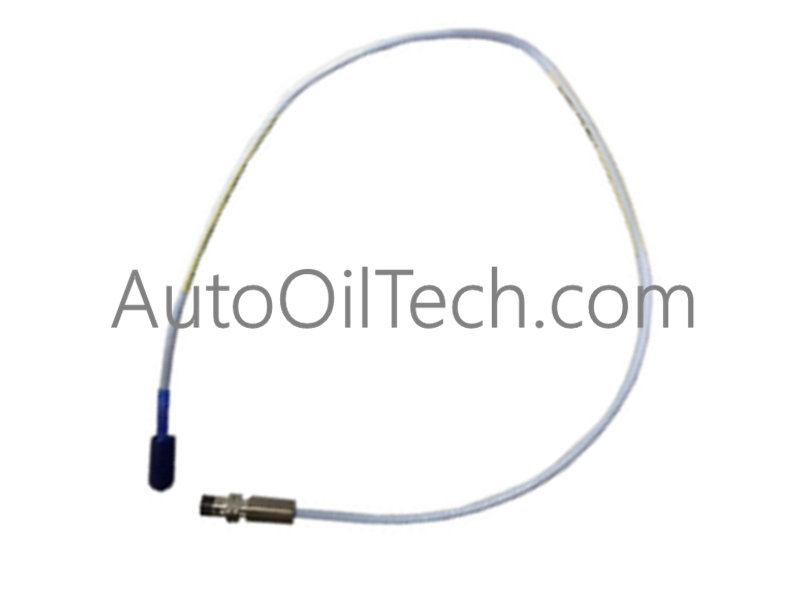

Bently Nevada 330880-28-40-058-01-02 | 3300 XL Test Plug

Engineering Purpose

The 330880-28-40-058-01-02 is a specialized test plug component for the 3300 XL series. It is used by maintenance engineers to verify system calibration and signal path integrity without removing permanently installed probes, ensuring the Proximitor and monitoring rack are receiving accurate data.

Technical Data Summary

• Component Type: 3300 XL Test Plug / Accessory

• System Series: 3300 XL

• Part Number: 330880-28-40-058-01-02

• Application: System Calibration and Diagnostics

• Total Length: ~5.8 inches (configured lead)

• Connector Type: Miniature Coaxial ClickLoc

• Compatibility: 3300 XL Proximitor Sensors

• Operating Temperature: Standard Industrial Range

Decoding the Model Configuration

• 330880: Identifies the 3300 XL series test/specialty accessory group.

• 28: Specifies the internal electrical characteristic or plug type.

• 40: Indicates the specific adapter or interface housing.

• 058: Defines the total length (5.8 inches) for the test lead or probe body.

• 01: Indicates a standard coaxial cable without armor.

• 02: Specifies the ClickLoc connector type for interface with extension cables or Proximitors.
