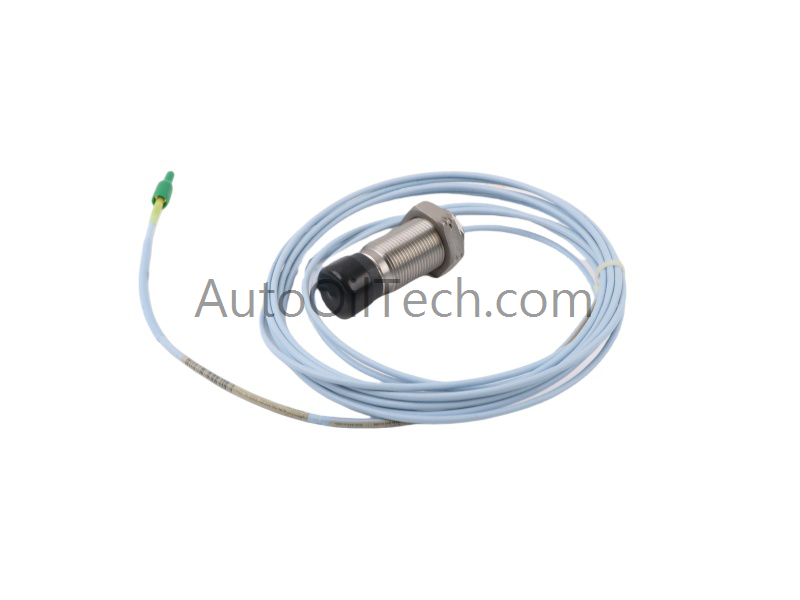

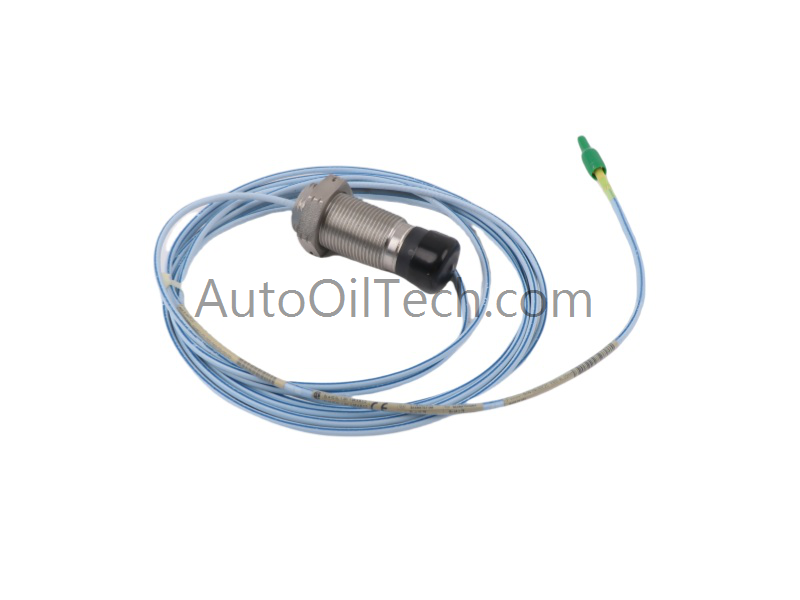

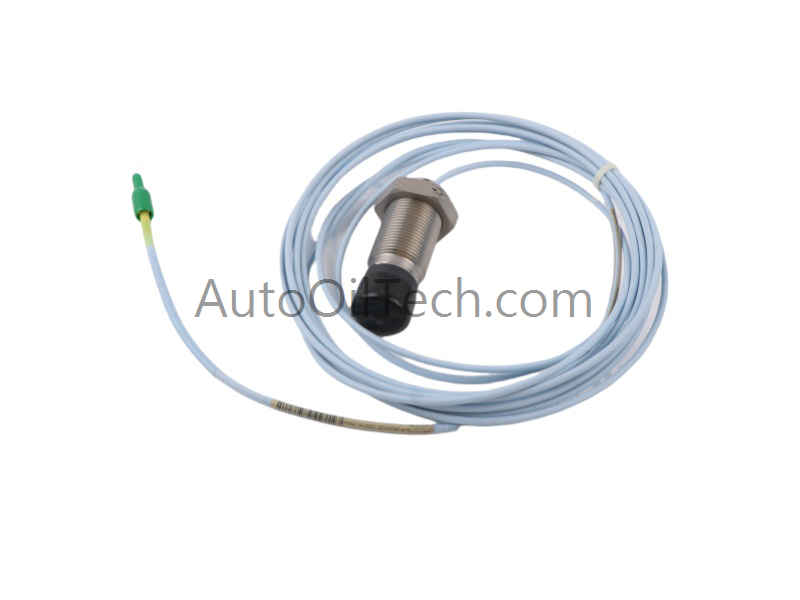

The Bently Nevada 330851-02-000-060-50-00-05 3300 XL 25 mm Proximity Probe is a high-precision sensor designed for non-contact detection in industrial control systems. With a robust IP67 rating and wide operating range, it ensures reliable performance in harsh environments.
Technical Specifications
Parameter
Specification
Model Number
330851-02-000-060-50-00-05
Manufacturer
Bently Nevada
Module Type
3300 XL 25 mm Proximity Probe
System Compatibility
TSI, 3300 series
Dimensions
23 × 23 × 4.5 cm
Weight
0.54 kg
Detection Range
Up to 200 mm
Minimum Detection
10 mm
Signal Output
4–20mA
Power Supply
DC 12V to 36V
Repeatability
±0.1%
Temperature Range
-40°C to +85°C
Protection Rating
IP67
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order Qty
1
Origin
USA
Discontinued Status
Active
Applications & Compatibility
The 330851-02-000-060-50-00-05 proximity probe is ideal for vibration monitoring, displacement measurement, and machinery protection in sectors like oil and gas, power generation, and manufacturing. It integrates with Bently Nevada 3300 series systems, supporting predictive maintenance and operational safety.
