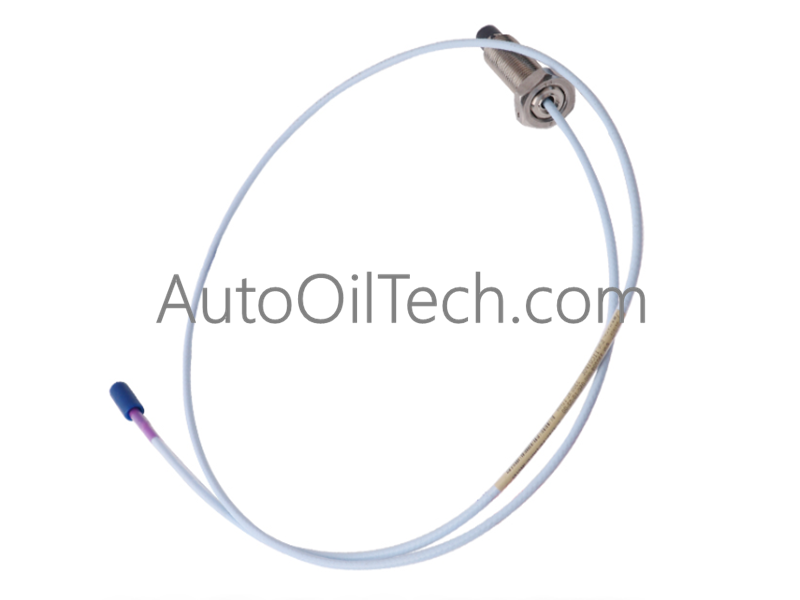

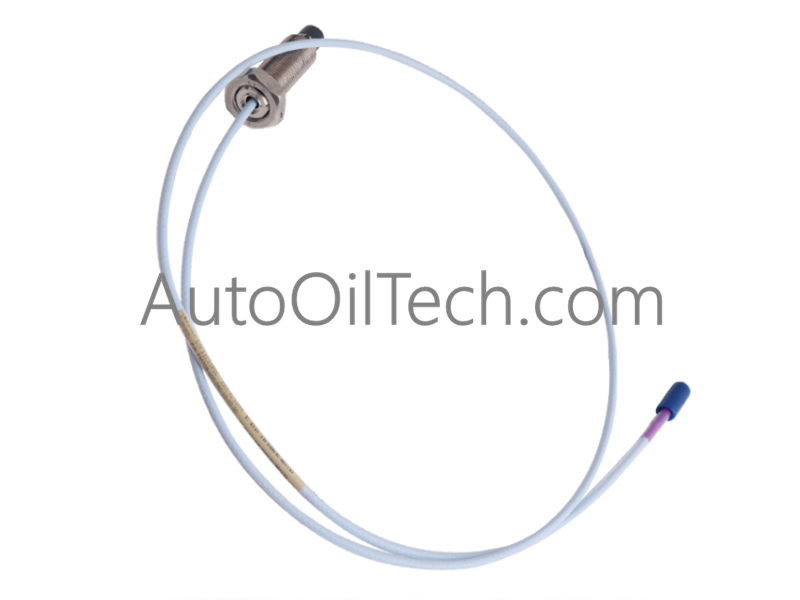

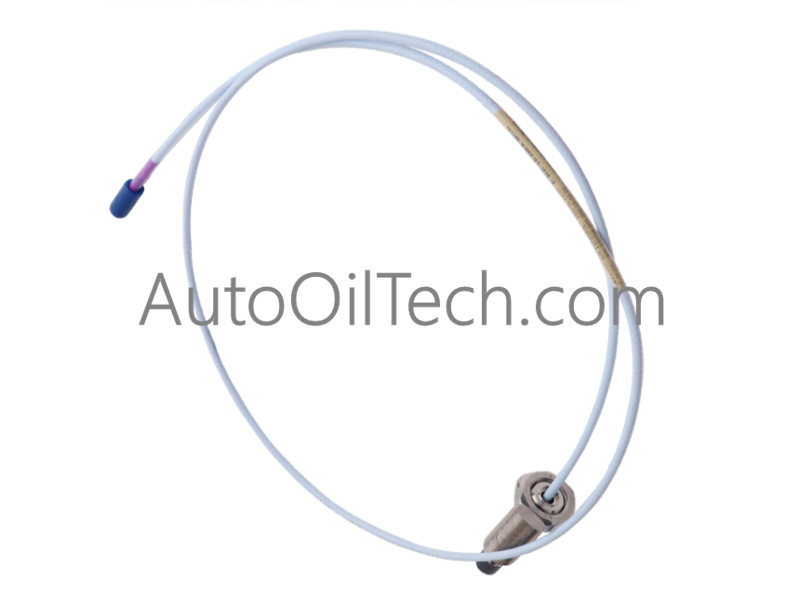

Bently Nevada 330709-000-070-10-02-00 3300 XL 11 mm Proximity Probe

Product Description

The Bently Nevada 330709-000-070-10-02-00 is a high-performance 3300 XL 11 mm Proximity Probe designed for precise, non-contact vibration and displacement measurement. Part of the renowned 3300 XL series, this transducer system is engineered for fluid-film bearing machines, providing a wider linear range than standard 8 mm systems. It is an essential component for monitoring axial thrust position, differential expansion, and shaft vibration in critical industrial assets like steam turbines and large compressors.

Technical Specifications

• Model Number: 330709-000-070-10-02-00

• Product Type: 3300 XL 11 mm Proximity Probe

• Manufacturer: Bently Nevada (Baker Hughes)

• Thread Configuration: M16 x 1.5

• Case Length: 70 mm

• Total Length: 1.0 meter (3.3 feet)

• Cable/Connector: Standard cable with miniature coaxial ClickLoc™ connector

• Armor: Without armor

• Probe Tip Material: Polyphenylene sulfide (PPS)

• Probe Case Material: AISI 304 Stainless Steel (SST)

• Weight: 0.14 kg

• Country of Origin: USA

Operational Capabilities

This probe is designed for long-term stability and harsh industrial environments. Its patented TipLoc™ and CableLoc™ designs ensure a robust bond between the probe tip and body, providing high pull strength and chemical resistance. The ClickLoc™ connector system prevents loose connections, ensuring signal integrity in high-vibration applications. It is fully compatible with existing 3300 XL proximitor sensors and extension cables, eliminating the need for bench calibration during component replacement.
