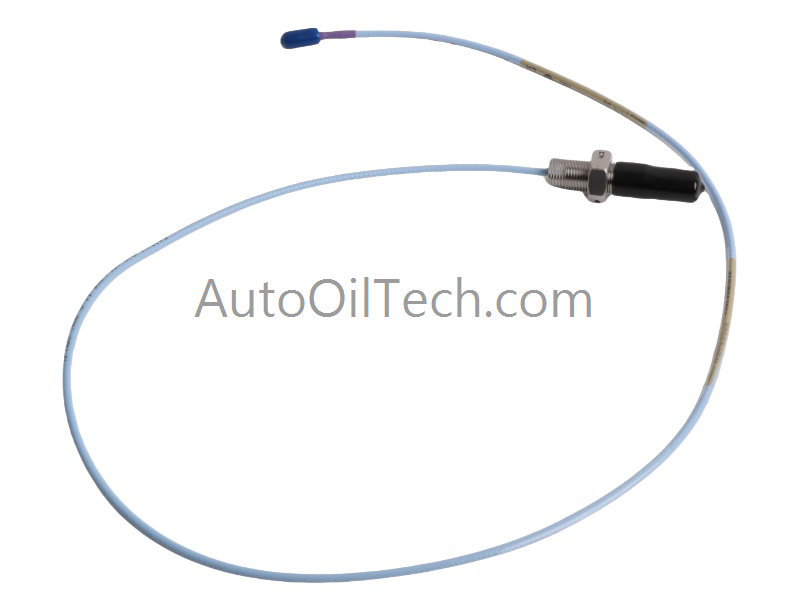

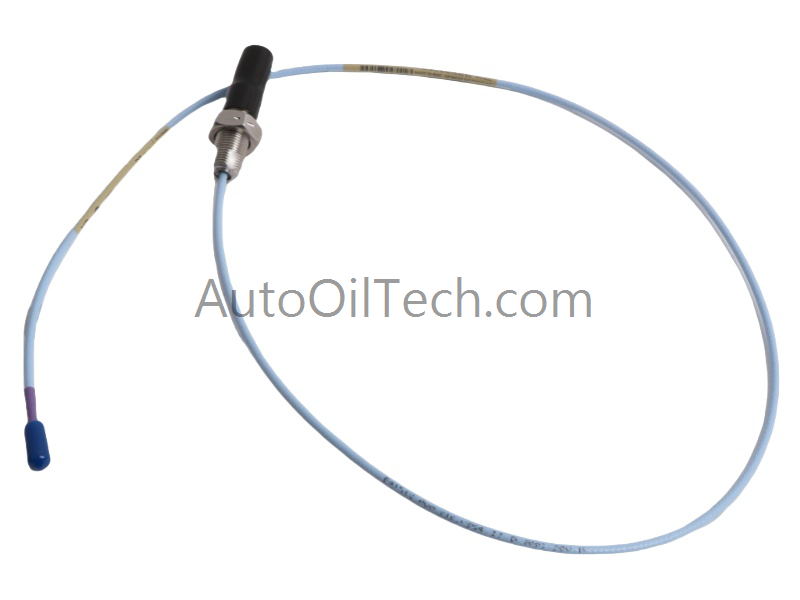

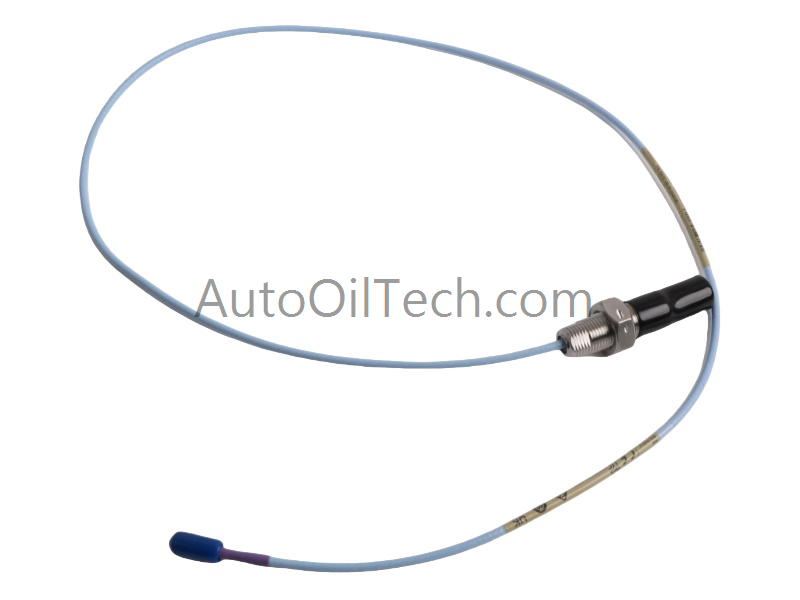

The 330707-00-25-10-12-00 Bently Nevada 3300 XL 11 mm Proximity Probe is designed for precise non‑contact vibration and displacement measurements in fluid‑film bearing machinery. Its larger 11 mm probe tip provides an extended linear range compared to standard 8 mm probes, making it ideal for applications requiring greater measurement capacity.
Technical Specifications
Parameter
Value
Model Number
330707-00-25-10-12-00
Module Type
Proximity Probe
Manufacturer
Bently Nevada
Product Range
3300 XL Proximity Transducer System
Dimension
20.5 × 22.4 × 3.3 cm
Weight
0.55 kg
Probe Size
11 mm
Output Sensitivity
3.94 V/mm (100 mV/mil)
Thread Size
5/8‑18 UNF
Minimum Case Length
2.5 in
Cable Length
1.0 m FluidLoc
Connector Type
Miniature coaxial ClickLoc
Armor
Not required
Compliance
API 670
Origin
USA
Condition
Brand New
MOQ
1
HS Code
8537101190
Functional Description
The 330707-00-25-10-12-00 probe delivers accurate vibration and displacement monitoring with extended linear range capability. It integrates seamlessly with extension cables and Proximitor Sensors, ensuring compatibility without the need for component matching or calibration. The FluidLoc cable and ClickLoc connector provide secure, interference‑free connections, while the rugged design ensures long‑term reliability in demanding environments.
Applications and Compatibility
Compatible with Bently Nevada 3300 XL 11 mm Proximitor Sensor systems.
Suitable for steam turbines, compressors, and other rotating machinery.
Commonly used for axial thrust position, rod position/drop, and ramp differential expansion measurements.
Supports tachometer, zero‑speed, and Keyphasor® phase reference signals.
Designed for predictive maintenance and machinery protection in industrial environments.
