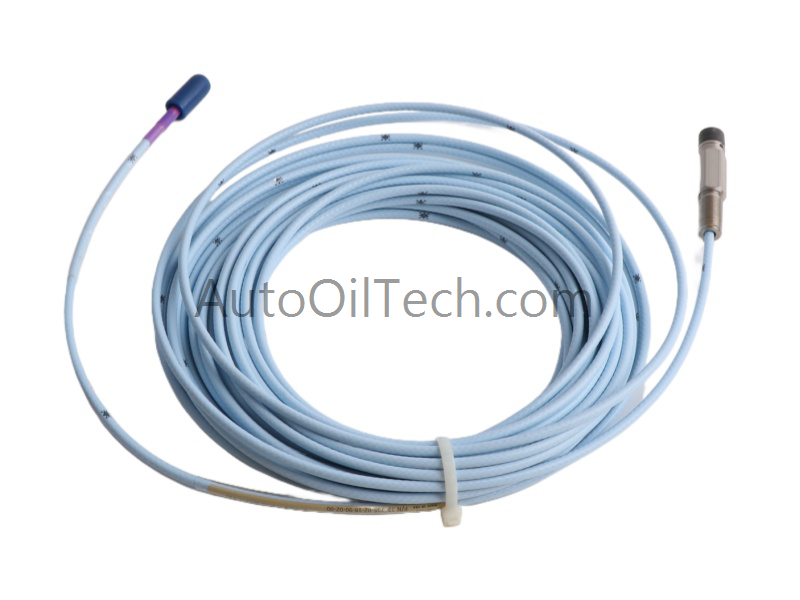

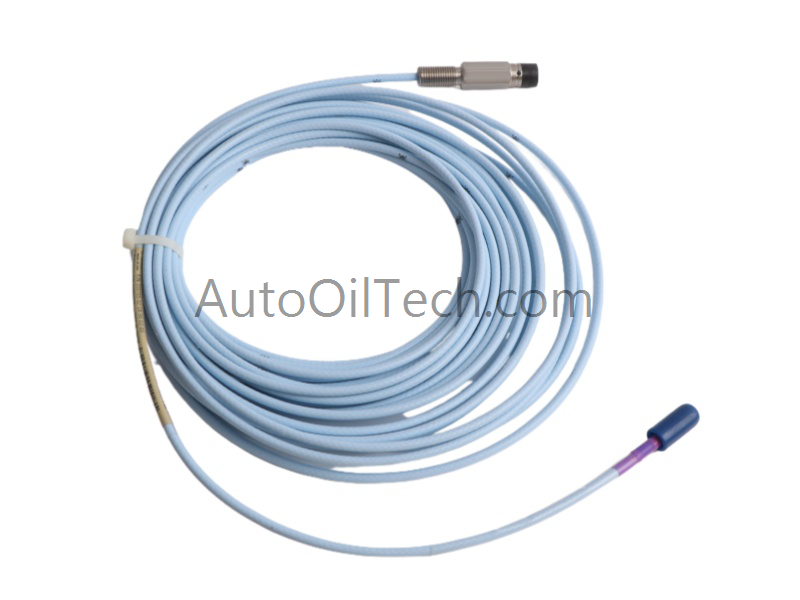

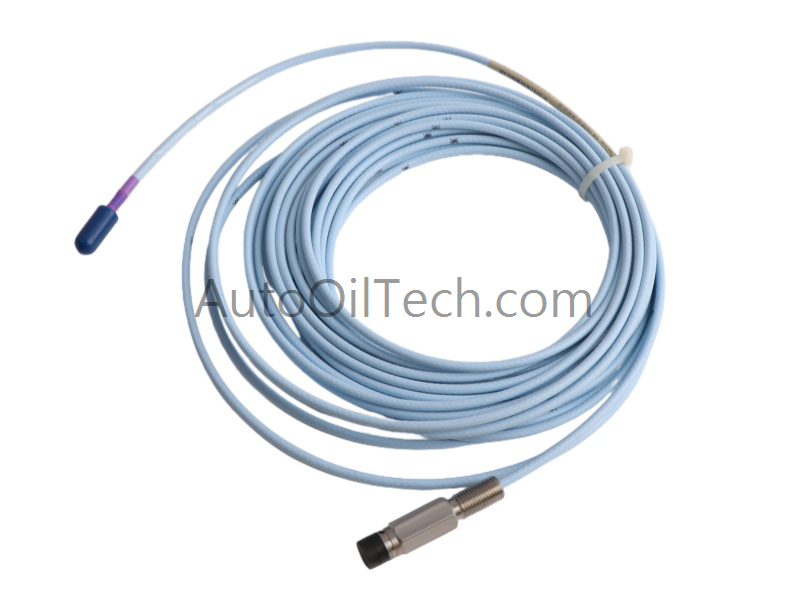

The 330705-02-18-90-02-00 Reverse Mount Probe from Bently Nevada is part of the 3300 XL Proximity Transducer System, designed for high-precision vibration and displacement monitoring in fluid-film bearing machinery. With a longer linear range than standard 8 mm probes, this 11 mm reverse mount probe ensures accurate non-contact measurements, making it ideal for critical machinery protection and condition monitoring.
Technical Specifications
Specification
Detail
Model Number
330705-02-18-90-02-00
Module Type
Reverse Mount Probe
Manufacturer
Bently Nevada
Range of Product
3300 Proximity Transducer System
Dimensions
1.8 × 1.6 × 123 cm
Weight
0.06 kg
Output Sensitivity
3.94 V/mm (100 mV/mil)
Thread Options
3/8-24 UNF or M10 × 1
Cable Length
1.0 m (available in 1, 5, or 9 m)
Connector Type
Miniature coaxial ClickLoc™, gold-plated brass
Housing Material
AISI 304 stainless steel (SST)
Probe Tip Material
Polyphenylene Sulfide (PPS)
Cable Insulation
Triaxial FEP
Pull Strength
330 N (75 lbf) via CableLoc™
Temperature Range
-51 °C to +177 °C
Seal
Viton O-ring for differential pressure
Communication
Ethernet router
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Product Origin
USA
MOQ
1
System
TSI
Discontinued Status
Active
Key Features
11 mm reverse mount probe offers longer linear range than standard 8 mm probes.
Accurate non-contact vibration and displacement monitoring for fluid-film bearing machinery.
