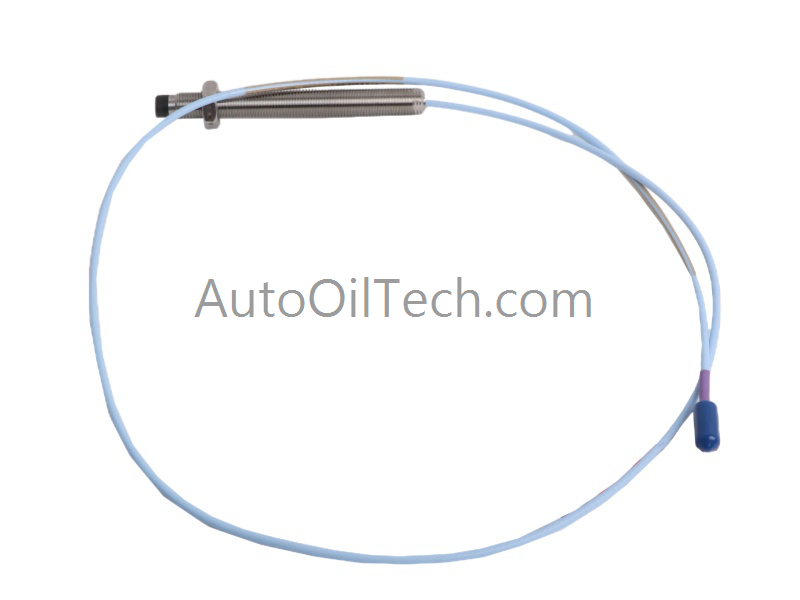

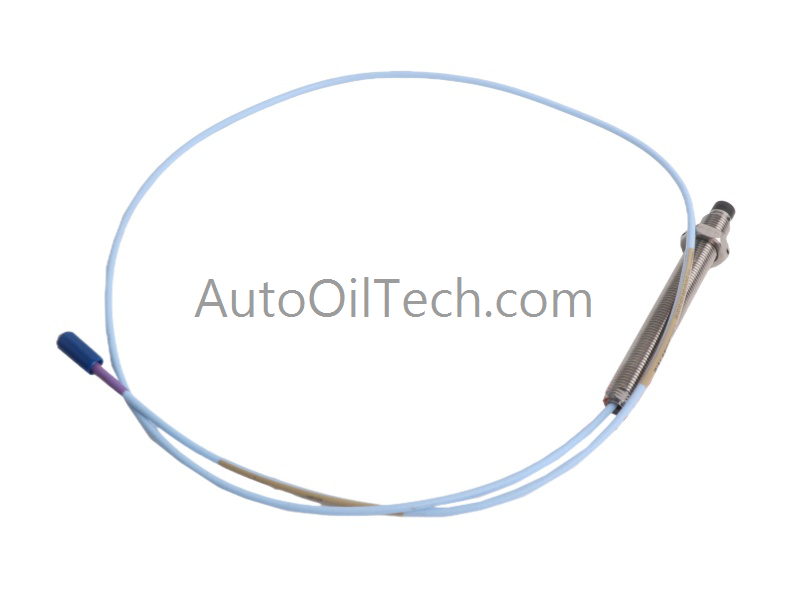

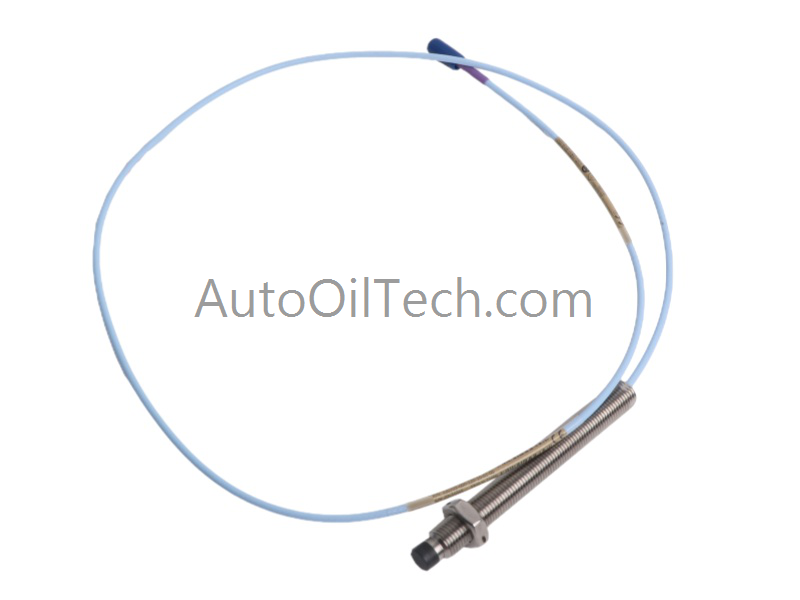

Bently Nevada 330703-000-178-10-02-00 3300 XL 11 mm Proximity Probes

Overview

The Bently Nevada 330703-000-178-10-02-00 proximity probe delivers precise vibration and displacement measurements for fluid‑film bearing machinery. The 11 mm sensing design provides a longer linear range than standard 8 mm probes, supporting demanding industrial applications. The probe integrates with the 3300 XL Proximity Transducer System and supports TSI‑based protection platforms.

Structural Design

The 330703-000-178-10-02-00 includes an 11 mm probe, extension cable, and Proximitor Sensor, forming a complete transducer system. The probe outputs 3.94 V/mm (100 mV/mil), ensuring high‑accuracy displacement measurement. The larger tip diameter increases linear range, making the probe suitable for axial thrust, differential expansion, and rod position monitoring.

The design supports tachometer, zero‑speed, and phase reference measurements using Keyphasor technology. The miniature coaxial ClickLoc connector locks securely with finger‑tight torque and simplifies installation. The probe’s rugged construction maintains stable performance in dynamic, high‑vibration environments.

Technical Specifications

Mechanical & Electrical Parameters

Additional Attributes

• The 11 mm tip increases linear range for large‑displacement machinery.

• The probe supports thrust, rod position, and differential expansion measurements.

• The ClickLoc connector ensures secure, tool‑free installation.

• The design maintains stable performance in high‑vibration environments.

Application & Compatibility

Where the 330703-000-178-10-02-00 Performs Best

The Bently Nevada 330703-000-178-10-02-00 supports steam turbines, reciprocating compressors, and large rotating equipment requiring extended linear range. The probe suits applications where standard 8 mm systems cannot provide sufficient measurement capability. The design maintains accuracy in environments with thermal cycling and mechanical stress.

Compatible Use Cases

• Axial thrust position monitoring

• Differential expansion measurement

• Rod position and rod drop monitoring

• Tachometer and Keyphasor reference signals

• High‑load rotating equipment diagnostics
