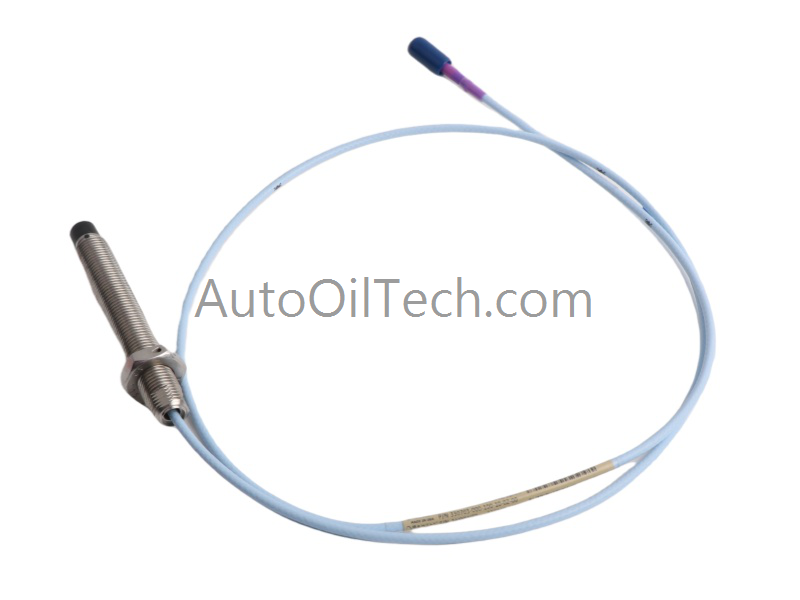

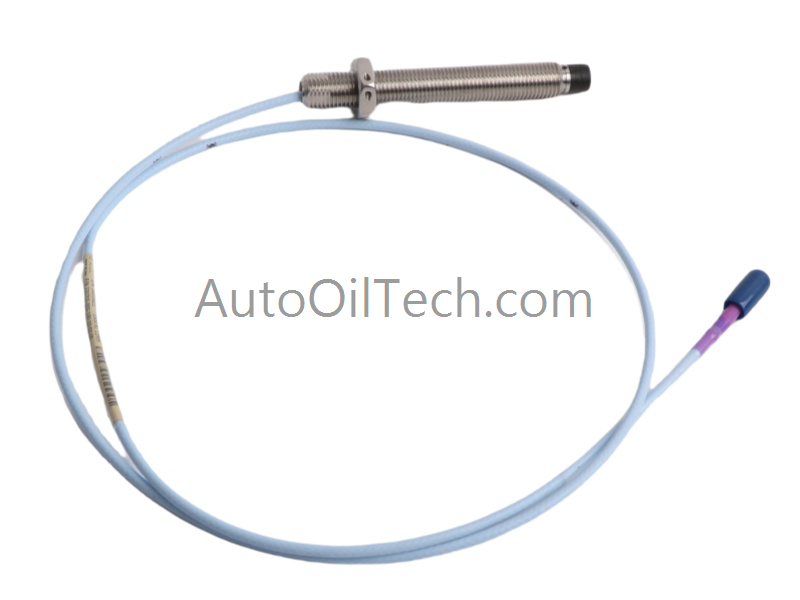

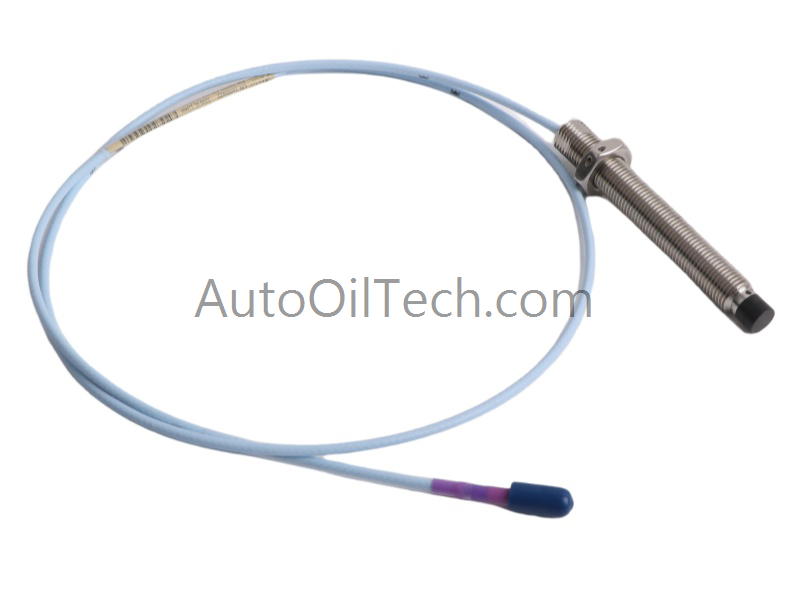

The Bently Nevada 330703-000-100-10-11-00 proximity probe is part of the advanced 3300 XL 11 mm Proximity Transducer System. It delivers precise, non-contact vibration and displacement measurements, making it ideal for monitoring fluid-film bearing machinery in critical industrial environments.
Technical Specifications
Parameter
Value
Model Number
330703-000-100-10-11-00
Module Type
3300 XL 11 mm Proximity Probe
Manufacturer
Bently Nevada
Condition
Brand New
Dimensions
116 × 2.5 × 2 cm
Weight
0.08 kg
Thread Type
M14 × 1.5
Probe Tip Size
11 mm
Cable & Sensor
Includes extension cable & Proximitor Sensor
Output Sensitivity
3.94 V/mm (100 mV/mil)
Measurement Functions
Vibration, displacement, axial thrust, differential expansion, rod position
The 330703-000-100-10-11-00 probe provides an extended linear range compared to standard 8 mm probes, making it highly effective for axial thrust position measurement, ramp differential expansion in steam turbines, and rod position monitoring in reciprocating compressors. Its robust design, M14×1.5 thread, and ClickLoc connector ensure secure installation and reliable signal transmission.
Applications and Compatibility
This probe is widely used in turbines, compressors, and other large rotating machinery. It integrates seamlessly into the 3300 XL 11 mm transducer system, providing accurate data for machinery protection and predictive maintenance programs.
Key Benefits
Extended linear range for large machinery monitoring.
High sensitivity at 3.94 V/mm (100 mV/mil).
Supports axial thrust, rod position, and differential expansion measurements.
Functions include tachometer, zero-speed detection, and Keyphasor signals.
Rugged design with ClickLoc connector for secure installation.
