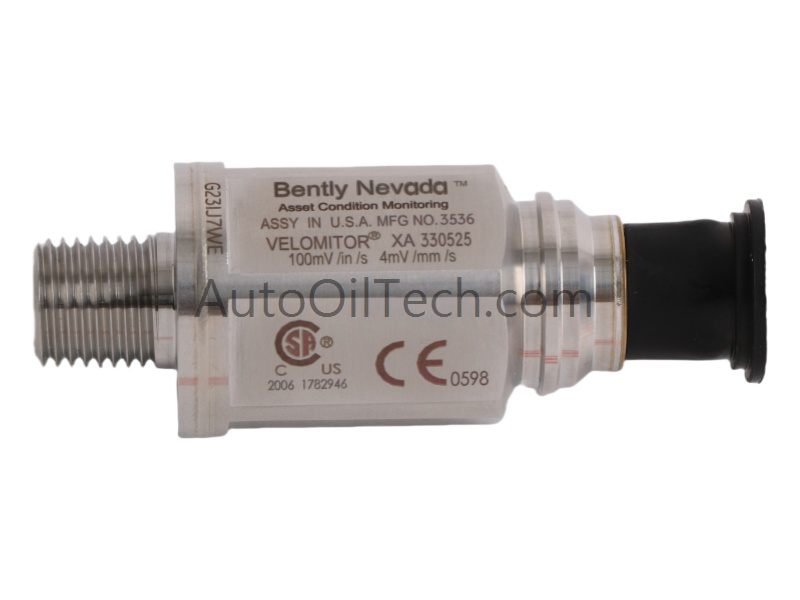

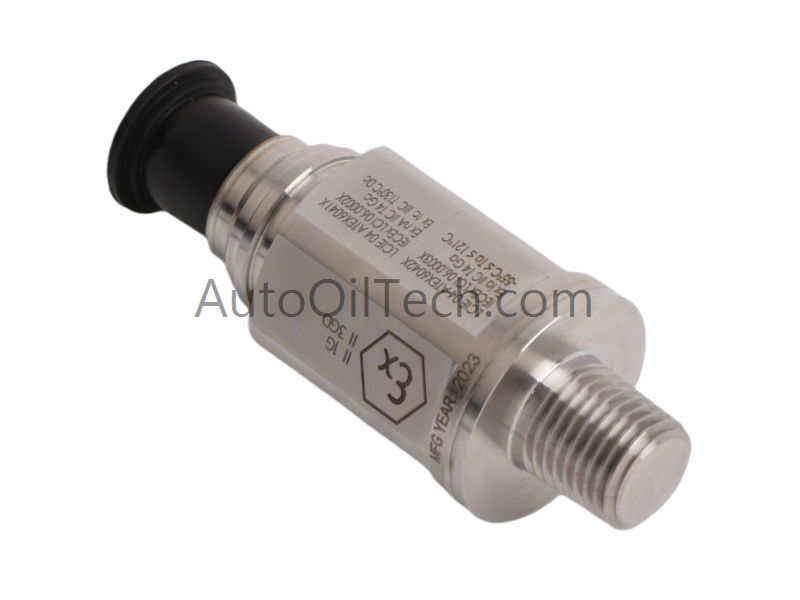

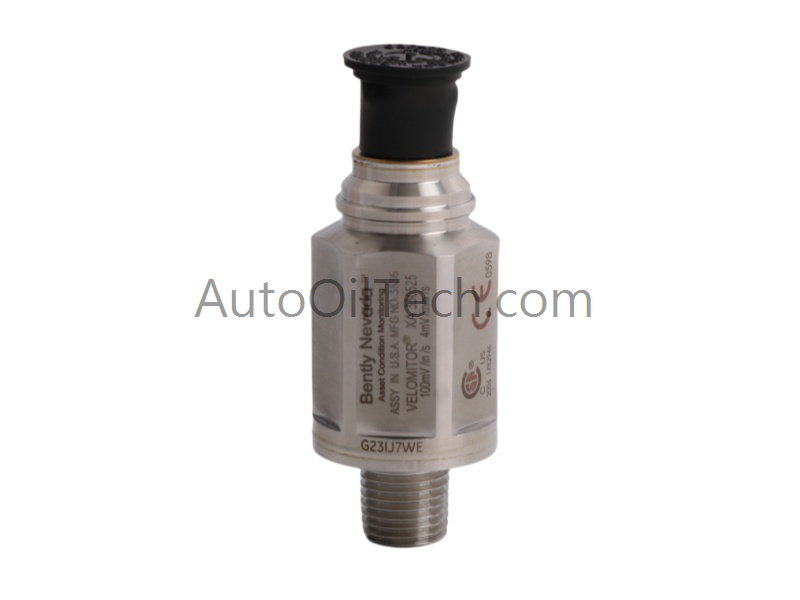

The Bently Nevada 330525-02 Velomitor XA Piezo‑Velocity Sensor is a compact, industrial‑grade velocity transducer engineered for casing vibration measurement on rotating machinery. As part of the Velomitor XA family, this model is built for harsh operating environments where moisture, dust, and mechanical stress are common. Its sealed stainless‑steel housing and weather‑resistant connector eliminate the need for external protective enclosures, enabling reliable long‑term monitoring in demanding field conditions.
Key Features
316L stainless‑steel body for corrosion resistance
Weatherproof connector and cable assembly
IP65 and NEMA 4X environmental protection (with proper installation)
Measures casing vibration where shaft access is limited
Compact form factor suitable for tight mounting locations
Designed for pumps, motors, compressors, and general rotating equipment
Optimized for industrial applications without radiation‑hardening requirements
Technical Specifications
Parameter
Value
Model
330525-02
Product Type
Velomitor XA Piezo‑Velocity Sensor
Output Sensitivity
100 mV/in/s (typical Velomitor XA rating)
Frequency Range
4.5 Hz to 2 kHz (typical XA range)
Housing Material
316L stainless steel
Protection Rating
IP65 / NEMA 4X
Dimensions
7.2 × 2.8 × 2.8 cm
Weight
0.14 kg
Operating Temperature
–55°C to +121°C (typical XA specification)
Mounting
Standard stud‑mount configuration
System Compatibility
3300 Proximity Transducer System / TSI
Cable Assembly
Moisture‑resistant, sealed connector
Origin
USA
Condition
Brand New
HS Code
8537101190
Lead Time
In Stock
MOQ
1
Application Scenarios
Casing vibration monitoring on pumps and motors
Outdoor or moisture‑prone installations
Machinery skids with limited mounting space
General industrial environments requiring rugged sensors
Predictive maintenance programs for rotating assets
FAQ
Q: What differentiates the 330525‑02 from the 330530 radiation‑resistant model A: The 330525‑02 is designed for general industrial environments, while the 330530 is engineered for radiation‑intensive applications.
Q: Does the sensor require an external housing A: No. Its weatherproof connector and sealed stainless‑steel body eliminate the need for additional enclosures.
Q: Can it be used for shaft vibration A: No. Velomitor sensors measure casing vibration; shaft vibration requires proximity probes.
