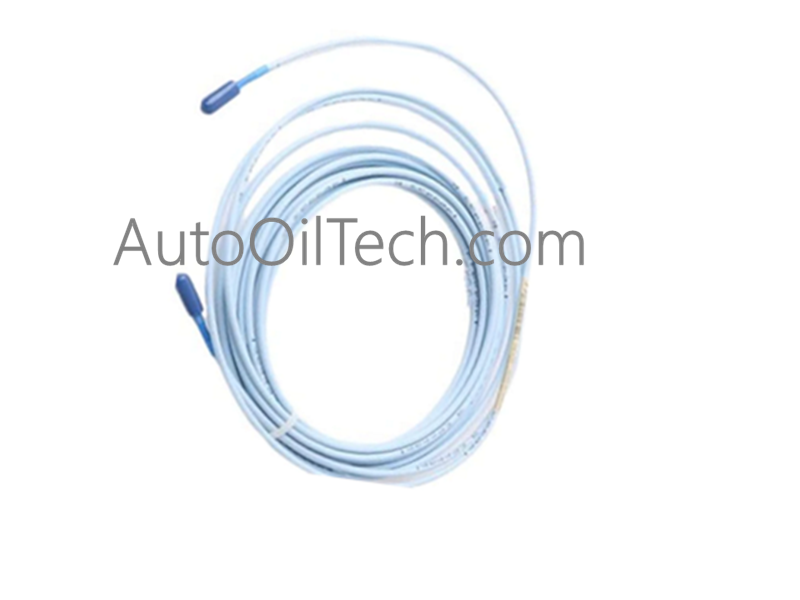

Bently Nevada 330171-00-94-10-02-00 NSv Transducer System

Product Overview

The 330171-00-94-10-02-00 is a 3300 XL NSv (Narrow Side View) proximity probe designed for precision vibration and position monitoring in confined spaces. Its M8 thread and specialized sensor tip allow for accurate measurements on small shaft targets where standard 8mm probes encounter excessive side-view interference.

Detailed Engineering Specifications

• System Series: Bently Nevada 3300 XL NSv Transducer System

• Thread Type: M8 x 1 metric thread

• Unthreaded Length: 0 mm (fully threaded case)

• Overall Case Length: 94 mm

• Total Lead Length: 1.0 Meter (approx. 3.3 feet)

• Jacket Material: Fluorinated Ethylene Propylene (FEP)

• Connector Plating: Gold-plated miniature coaxial

• Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F)

Modular Code Breakdown

The configuration suffix for the 330171-00-94-10-02-00 defines its physical build:

• -00 (Unthreaded Length): 0 mm. The entire 94mm body is threaded, allowing for maximum mounting depth flexibility.

• -94 (Overall Case Length): 94 mm. A mid-length housing suitable for standard machine casing depths.

• -10 (Total Length): 1.0 Meter. This is the probe lead length; it must be matched with a 4.0m or 6.0m extension cable to complete the 5m or 7m system calibration.

• -02 (Connector Option): Miniature coaxial connector with Connector Protector (installed).

• -00 (Agency Approval): Standard/No specialized hazardous area approvals required.
