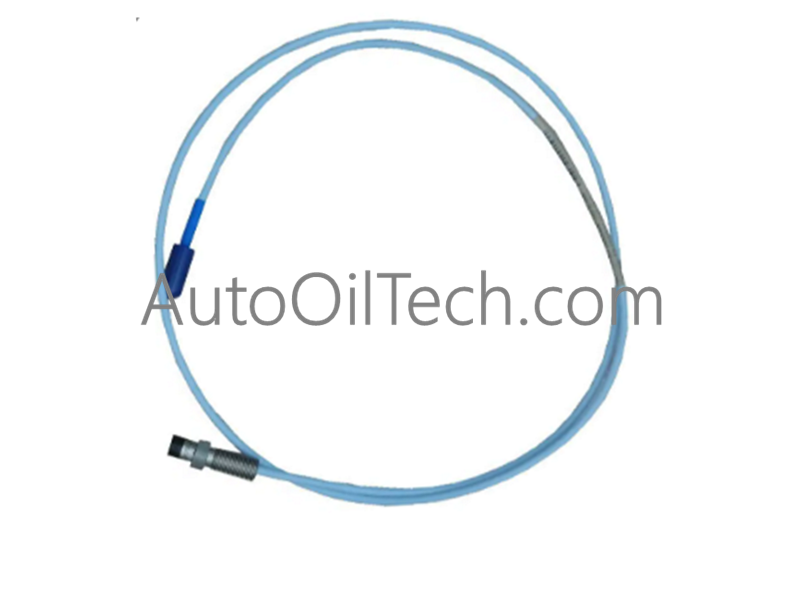

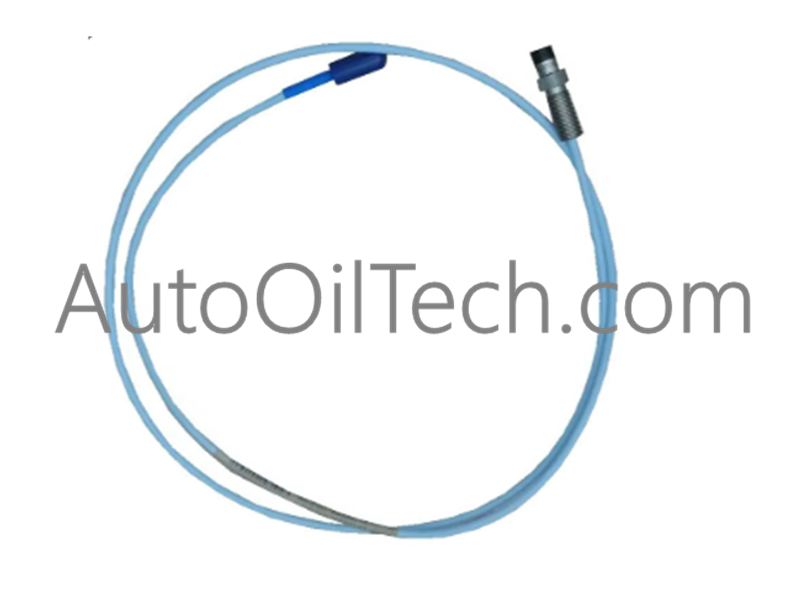

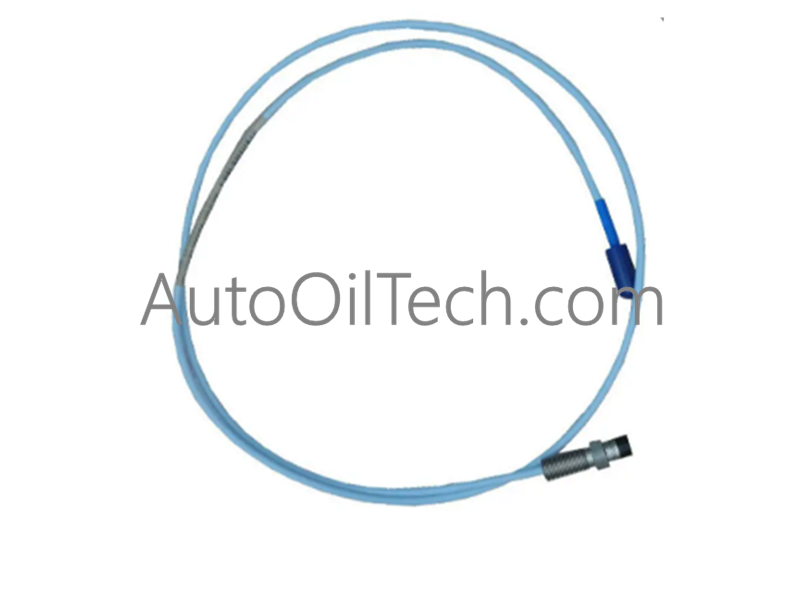

Bently Nevada 330171-00-20-10-02-00 Eddy Current Transducer

Engineering Purpose

The 330171-00-20-10-02-00 is a 3300 XL 8 mm proximity probe designed for reverse mount applications. It provides high-accuracy, non-contact measurement of vibration and axial position for critical rotating machinery.

Technical Data Summary

• Component Type: 8 mm Proximity Probe (Reverse Mount)

• System Series: 3300 XL

• Part Number: 330171-00-20-10-02-00

• Thread Size: 3/8-24 UNF

• Unthreaded Length: 0.0 in (0 mm)

• Overall Case Length: 2.0 in (50.8 mm)

• Total Length: 1.0 meter (3.3 ft)

• Connector Type: Miniature Coaxial ClickLoc (Standard)

• Agency Compliance: Standard/No specific certification (00)

• Operating Temperature: -51°C to +177°C

• Housing Material: AISI 303 Stainless Steel

Decoding the Model Configuration

• 330171: Identifies the 3300 XL 8 mm Reverse Mount probe series.

• 00: Specifies 0.0 inches of unthreaded case length.

• 20: Confirms an overall physical case length of 2.0 inches.

• 10: Defines the total integrated system cable length as 1.0 meter.

• 02: Indicates a standard Miniature Coaxial ClickLoc connector.

• 00: Specifies standard mounting and agency approvals.
