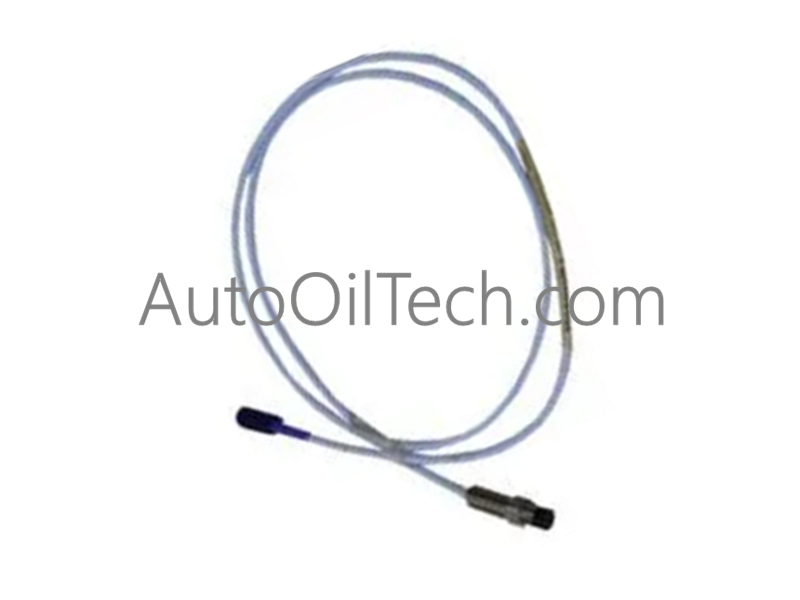

Bently Nevada 330130-080-02-05 Hazardous Area Rated

Product Overview

The 330130-080-02-05 is a high-performance 8-meter extension cable designed to facilitate precise vibration and position monitoring within the 3300 XL 8mm Proximitor Transducer System. By acting as a calibrated link between the probe and the sensor, it ensures high-fidelity signal transmission. This specific configuration is engineered for hazardous industrial environments, combining a chemically resistant FEP jacket with global safety certifications and integrated connector protection to prevent data loss in high-vibration scenarios.

Detailed Engineering Specifications

• System Integration: Calibrated for Bently Nevada 3300 XL 8mm Proximity systems

• Physical Length: 8.0 Meters (approx. 26.25 ft)

• Jacket Insulation: Fluorinated Ethylene Propylene (FEP) non-armored

• Connector Plating: Gold-plated miniature coaxial interfaces

• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)

• Maximum Capacitance: 69.9 pF/m (21.3 pF/ft)

• Bending Limits: 25.4 mm (1.0 in) minimum radius

• Safety Approvals: Multiple Agency Ratings (ATEX/IECEx/CSA/FM)

Modular Code Breakdown

The suffix string on the 330130-080-02-05 defines its exact mechanical and regulatory build:

• -080 (Length): Specifies an 8.0-meter cable. This is typically used to complete a 9-meter system when paired with a 1.0m probe, allowing the Proximitor to be mounted further from the machine casing.

• -02 (Connector Protection): Includes Connector Protectors. This indicates a sliding, ruggedized sleeve that provides mechanical stability and environmental sealing for the coaxial junction.

• -05 (Agency Approval): Denotes Multiple Approvals. This confirms the cable is fully certified for use in intrinsically safe and explosive atmospheres globally.
