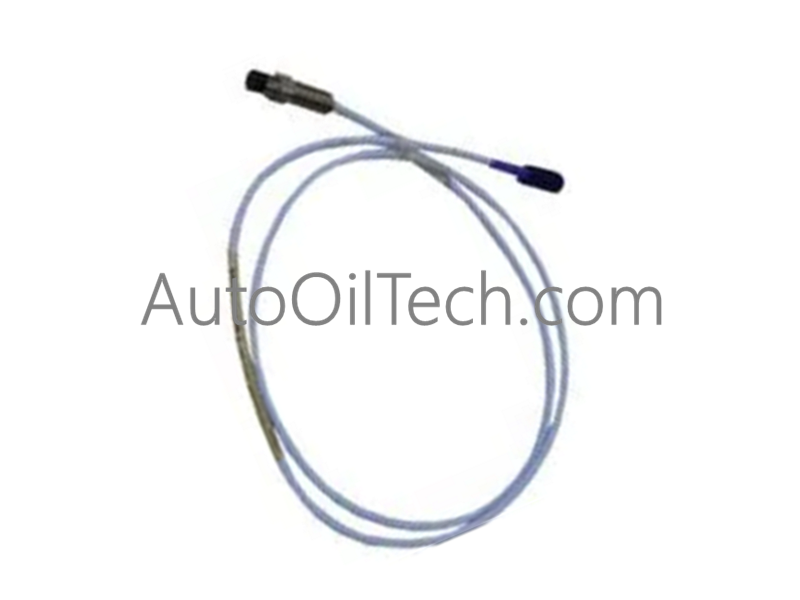

The330130-080-02-00is a precision-tuned coaxial extension cable designed for the Bently Nevada 3300 XL 8mm proximity transducer system. As a critical link in the machine condition monitoring (MCM) chain, it carries the high-frequency signal from the eddy current probe to the Proximitor sensor. This cable is specifically engineered to maintain the required system capacitance and impedance, ensuring that displacement and vibration data remain linear and accurate even in electrically noisy and thermally volatile industrial environments.
Detailed Technical Specifications
The330130-080-02-00is built to the following engineering standards:
System Compatibility: 3300 XL 8mm Proximitor Transducer System
Cable Length: 8.0 meters (approx. 26.2 feet)
Insulation Type: Fluorinated Ethylene Propylene (FEP) jacket and dielectric
Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)
System Impedance: 75$\Omega$(Factory calibrated)
Minimum Bend Radius: 25.4 mm (1.0 inch)
Physical Protection: Includes integrated connector protectors
Configuration Matrix (Model Breakdown)
The nomenclature of the330130-080-02-00defines its specific mechanical and electrical profile:
Cable Length Option (-080): Specifies an8.0-meterlength. This is typically paired with a 1.0m probe lead to complete a 9-meter calibrated system loop.
Connector Protector Option (-02): This indicates the inclusion ofConnector Protectors. These are sliding sleeves that shield the connection between the probe and extension cable, providing superior mechanical strain relief and sealing against environmental contaminants like oil and moisture.
Agency Approval Option (-00): Indicates theStandard/No Approvalsversion, suitable for non-hazardous industrial installations where specialized explosion-proof ratings are not required.
