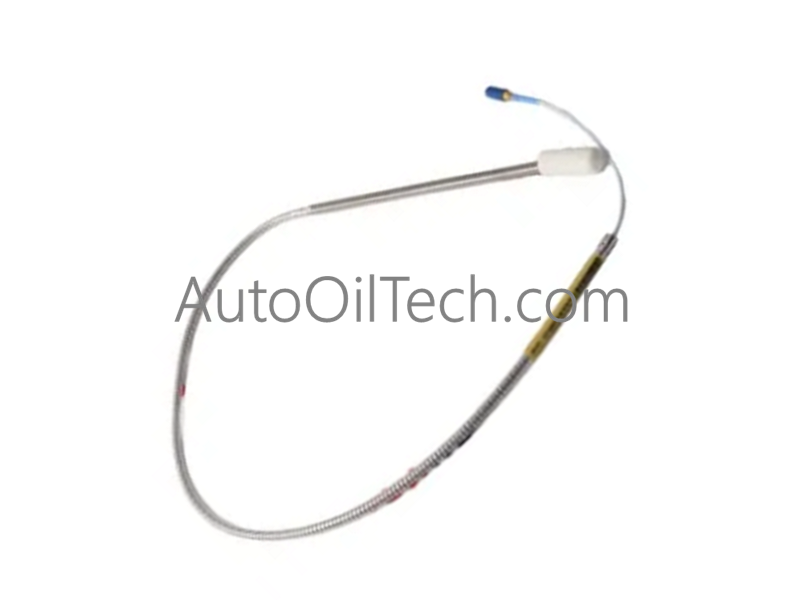

Bently Nevada 330130-040-12-CN Signal Transmission Cable

Engineering Purpose

The 330130-040-12-CN is a vital link in the Bently Nevada 3300 XL transducer system. It acts as the physical bridge between the proximity probe and the Proximitor sensor. Its primary purpose is to maintain signal integrity over the distance required for system installation, ensuring that high-frequency vibration signals are transmitted without attenuation or electrical interference.

Technical Data Summary

• Component Type: Extension Cable

• System Series: 3300 XL 8 mm/5 mm Transducer System

• Part Number: 330130-040-12-CN

• Cable Length: 4.0 meters (13.1 ft)

• Connector Type: Miniature Coaxial ClickLoc (with Protective Armor)

• Agency Approval: China/Regional Certification (CN)

• Temperature Range: -51°C to +177°C

• Cable Material: Coaxial cable with FEP jacket and stainless steel armor

Decoding the Model Configuration

The internal specification of the 330130-040-12-CN is defined by the following suffixes:

• 330130: Identifies the 3300 XL extension cable series.

• 040: Specifies a cable length of 4.0 meters.

• 12: Indicates the inclusion of stainless steel protective armor, providing high resistance to mechanical stress and industrial environmental damage.

• CN: Designates specific regional certification for the Chinese market.
