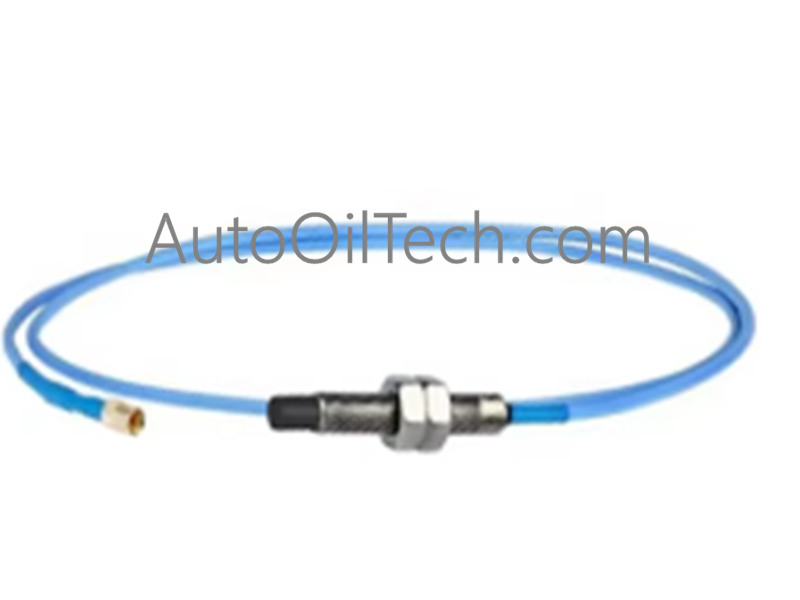

Bently Nevada 330105-20-12-10-02-00 metric proximity sensor

Product Overview

The Bently Nevada 330105-20-12-10-02-00 is an 8mm metric proximity sensor engineered for high-precision shaft monitoring. As a core component of the 3300 XL series, it tracks radial vibration and axial thrust by measuring the gap between the tip and target. It provides the essential data needed for predictive maintenance on critical turbines, compressors, and pumps in demanding industrial environments.

Technical Specifications

• Model Number: 330105-20-12-10-02-00

• Thread Type: M10 x 1 (Metric)

• Linear Range: 2.0 mm (80 mils)

• Scale Factor: 7.87 V/mm (200 mV/mil)

• Frequency Response: 0 to 10 kHz

• Operating Temp: -51 °C to +177 °C (-60 °F to +351 °F)

• Pressure Rating: Sealed to 70 psi (4.8 bar)

• Tip Material: Polyphenylene Sulfide (PPS)

• Case Material: 303/304 Stainless Steel

Typical Applications

• Shaft Vibration: Measuring dynamic motion within fluid-film bearings to identify rotor instability.

• Thrust Position: Monitoring axial shift to prevent internal contact between rotors and stators.

• Phase Reference: Providing Keyphasor pulses for speed and phase-angle diagnostics.

• Eccentricity: Evaluating shaft straightness during slow-roll turbine startups.

• Rod Position: Monitoring piston rod movement in large reciprocating machinery.
