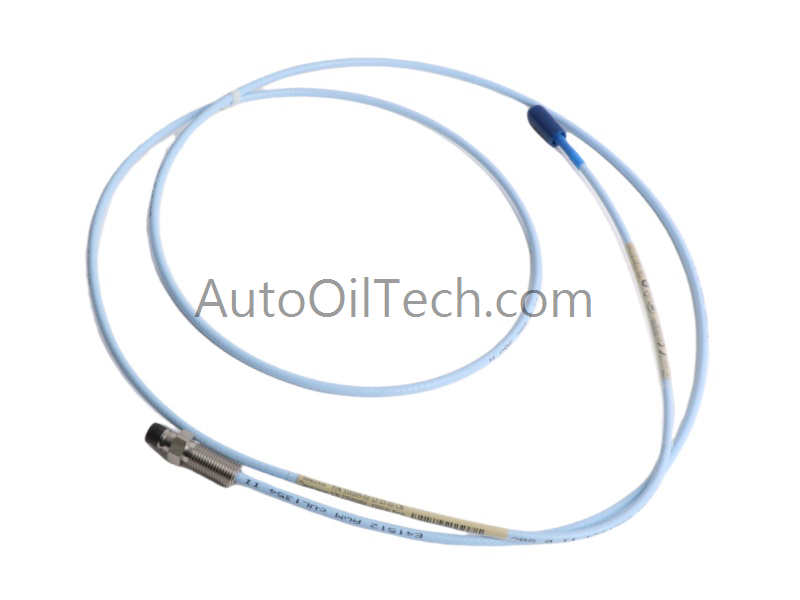

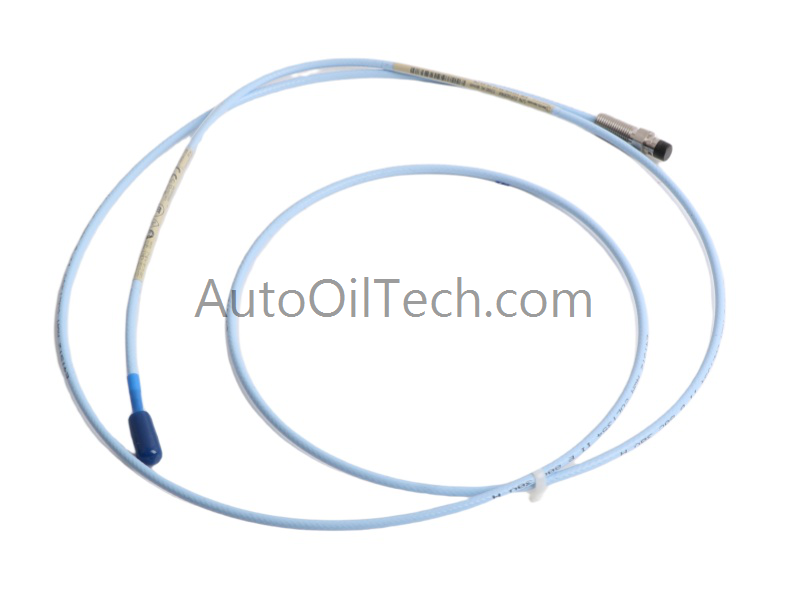

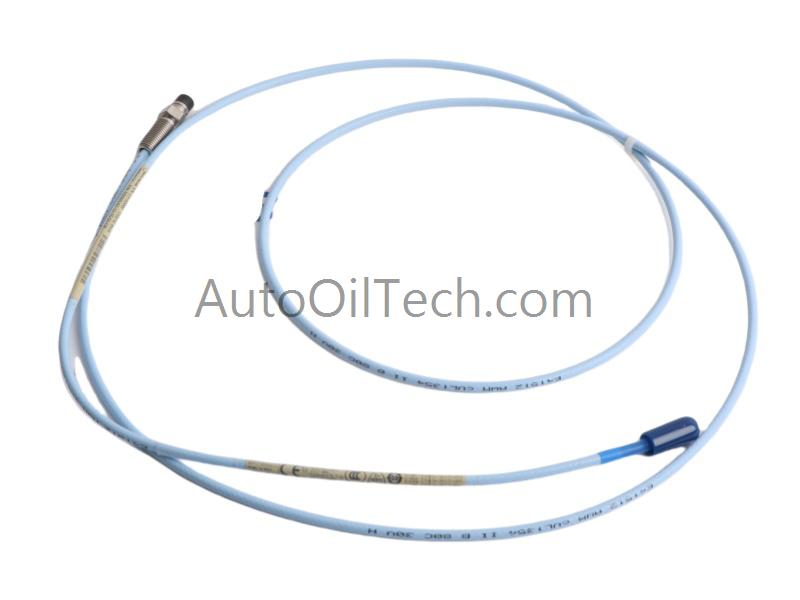

Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm Reverse Mount Probes

Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm Proximity Transducer System

The Bently Nevada 330105-02-12-15-02-05, also cataloged as the 330105 proximity transducer system, operates as a dedicated 8 mm eddy‑current measurement assembly for displacement and rotor‑dynamic monitoring across 3300 XL platforms. The unit implements a 0.5 m coaxial lead with ClickLoc termination and multiple agency approvals under suffix 05.

Suffix Breakdown & Model Matrix

• 330105: 8 mm proximity transducer system
• 02: Connector option = Miniature ClickLoc coaxial connector
• 12: Unthreaded length = Not specified in input (base transducer system variant)
• 15: Total cable length = 1.5 m (1.6 ft)
• 02: Standard cable with ClickLoc termination
• 05: Multiple agency approvals

(Input does not provide detailed mechanical segmentation for the 330105 series beyond cable and approval options; no additional suffix logic is inferred.)

Hardware Specifications

Gap Voltage Validation and Eddy‑Current Scaling

3300 XL transducer systems maintain a −10 VDC nominal gap‑voltage reference to ensure linear displacement scaling across the 8 mm sensing range. The short 0.5 m cable minimizes impedance variation, improving phase stability and rotor‑dynamic correlation. ClickLoc termination provides repeatable electrical seating, reducing cross‑talk and maintaining consistent channel‑to‑channel behavior in multi‑probe installations.

Frequently Asked Questions

Q: Can the transducer system be replaced while the proximitor remains energized? A: Replacement should occur only with the channel de‑energized to prevent transient gap‑voltage excursions.

Q: Does the 0.5 m cable length require proximitor recalibration? A: No recalibration is required; the cable length is factory‑matched for standard 3300 XL proximitor modules.

Q: Do the multiple approvals under suffix 05 affect installation? A: Approvals do not alter electrical behavior; installation requirements remain identical to standard 3300 XL probes.

Field Installation Guidelines

• Maintain clean mounting surfaces to ensure stable mechanical seating.
• Terminate cable shielding at the proximitor end only to prevent ground‑loop formation.
• Avoid sharp bends that may alter coaxial impedance.
• Route cable away from high‑current conductors to reduce electromagnetic interference.
• Verify ClickLoc connector engagement before energizing the monitoring channel.
