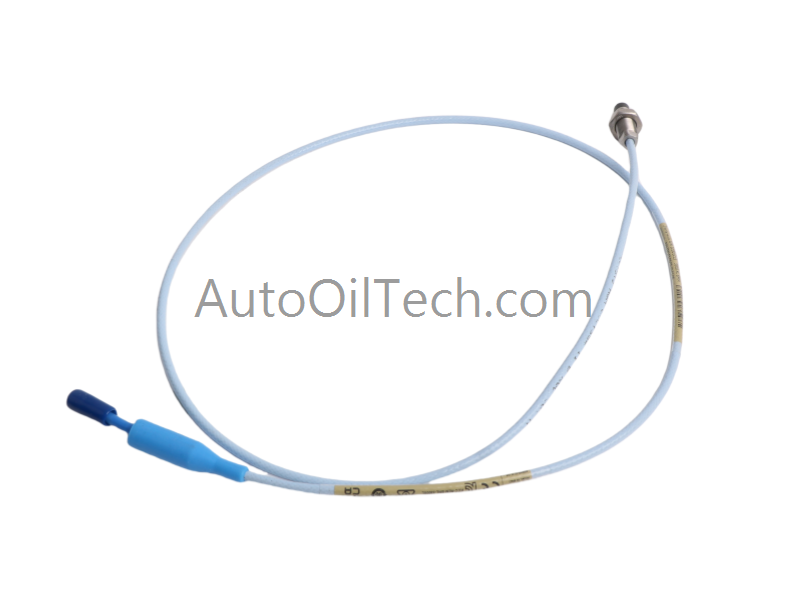

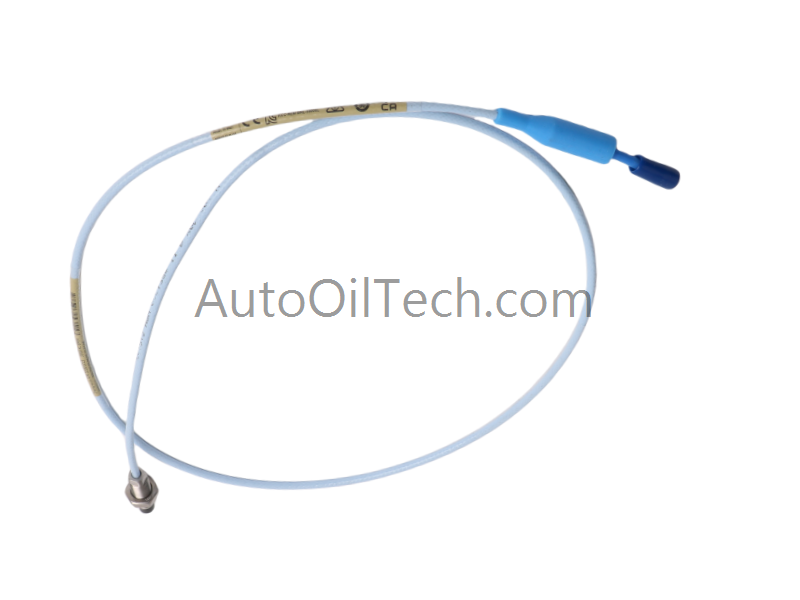

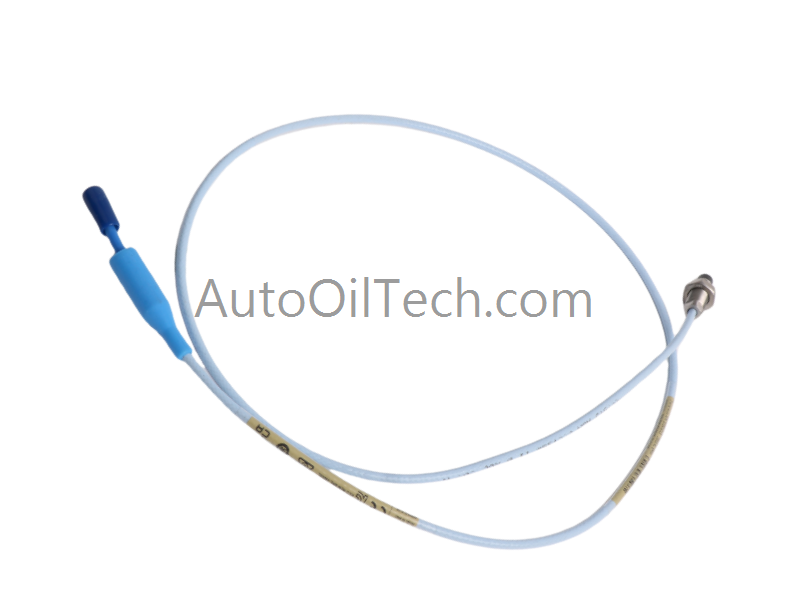

Bently Nevada 330103-00-03-10-01-00 | 3300 XL 8 mm Probe (M10 x 1, No Armor)

Overview

The 3300 XL 8 mm Probe is a key component of the Bently Nevada 3300 monitoring system, designed for precision vibration and displacement measurements. This version comes with an M10 x 1 thread, a 30 mm case length, a 1.0 m total length, and a Miniature coaxial ClickLoc connector. Built for durability, it supports both standard and extended temperature ranges, ensuring accurate performance in demanding environments.

Environmental Limits

• Operating & Storage Temperature

• Standard Probe: -52°C to +177°C (-62°F to +350°F)

• Extended Range Probe: -52°C to +218°C (tip), -51°C to +260°C (cable/connector)

• Pressure Resistance

• Seals differential pressure using a Viton® O-ring

• Pressure testing available upon request

• Humidity

• Less than 3% ASF change in 93% humidity (IEC 68-2-3, up to 56 days)

Mechanical Specifications

• System Lengths: 5 m or 9 m (with extension cable), or 1 m probe-only version

• Weight: 323 g per meter (11.4 oz)

• Thread Engagement Limit: M10 x 1 → 15 mm maximum engagement

Ordering Information

• Part Number: 330103-00-03-10-01-00

• Configuration:

• A (Unthreaded Length): 00 = 0 mm

• B (Overall Case Length): 03 = 30 mm

• C (Total Length): 10 = 1.0 meter

• D (Connector Type): 01 = Miniature coaxial ClickLoc connector with protector

• E (Agency Approval): 00 = Not required

Applications

The Bently Nevada 3300 XL 8 mm Probe is widely used for:

• Turbomachinery vibration monitoring

• Shaft position and displacement measurements

• Harsh industrial environments with high temperature and humidity

• Integration with 3300 XL Proximitor® sensors and extension cables
