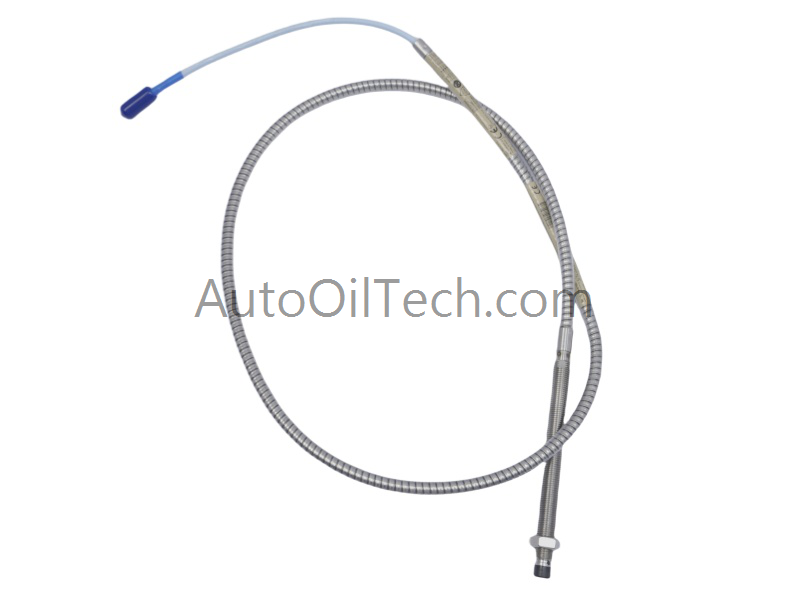

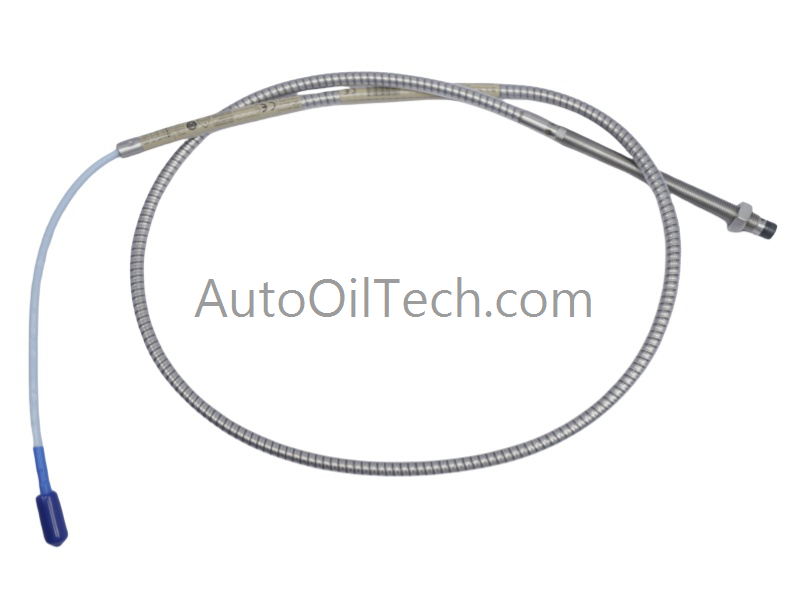

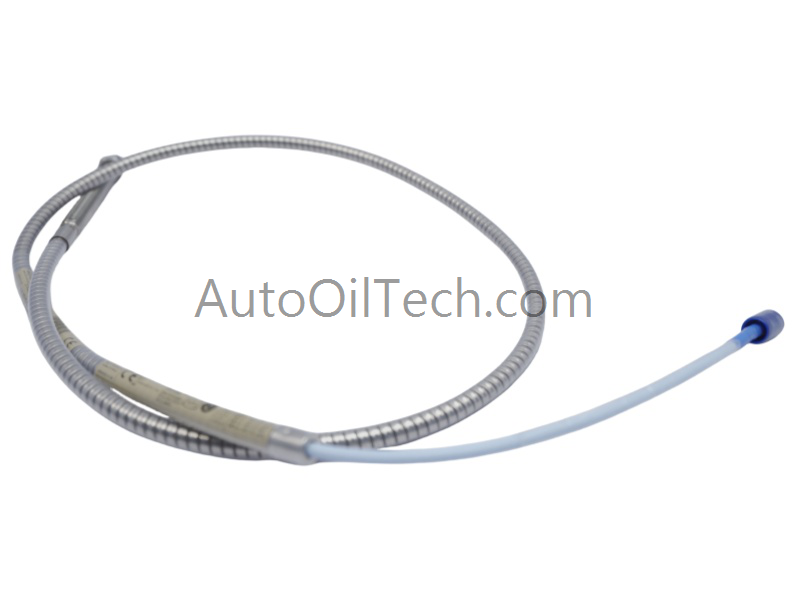

Bently Nevada 330102-00-30-10-02-00 3300 XL 8 mm Proximity Transducer Probe

Bently Nevada 330102-00-30-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102‑00‑30‑10‑02‑00, part of the 3300 XL 8 mm Proximity Probe family, is designed for continuous vibration and position monitoring in industrial rotating machinery. This armored probe variant provides enhanced durability for harsh environments while maintaining precise eddy‑current measurement performance.

Suffix Breakdown & Model Matrix

• 330102 — 3300 XL 8 mm proximity probe, 3/8‑24 UNF thread, armored
• 00 — Unthreaded length option (0 mm / 0 in)
• 30 — Case length = 3.0 in (76 mm)
• 10 — Cable length = 1.0 m (3.3 ft)
• 02 — Miniature coaxial ClickLoc connector with standard cable
• 00 — Agency approval option (none / standard)

Hardware Specifications

Functional Description

This probe uses eddy‑current transducer technology to deliver a proportional voltage output relative to shaft displacement. The armored cable design enhances mechanical protection, making it suitable for rugged industrial environments. Its linear range of 2 mm (80 mils) and 200 mV/mil sensitivity ensure accurate monitoring of both static and dynamic shaft behavior.

Frequently Asked Questions

Q: Can the 330102‑00‑30‑10‑02‑00 be hot‑swapped? A: No. Probes must be disconnected only when the system is de‑energized to preserve calibration integrity.

Q: Is it interchangeable with other 3300 XL probes? A: Yes. It is fully compatible with standard 3300 XL extension cables and Proximitor sensors without requiring bench recalibration.

Q: What applications are typical? A: Radial vibration, axial thrust position, and speed/phase reference measurements on turbomachinery.

Field Installation Guidelines

• Do not cut or modify the armored probe cable; factory termination preserves calibration.
• Maintain proper bend radius to avoid altering coaxial geometry.
• Route cables away from high‑frequency switching conductors to reduce induced noise.
• Ensure ClickLoc connector is fully seated before energizing the system.
• Confirm installation practices comply with site standards for vibration monitoring systems.
