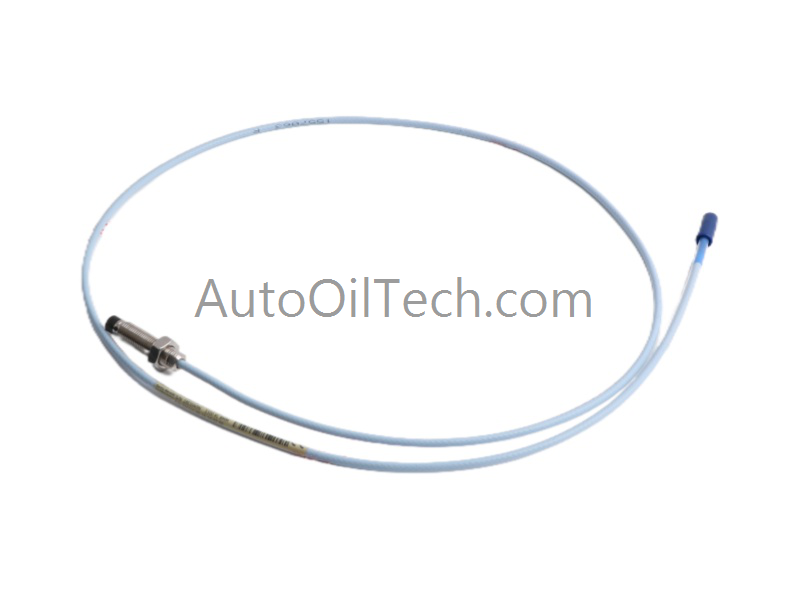

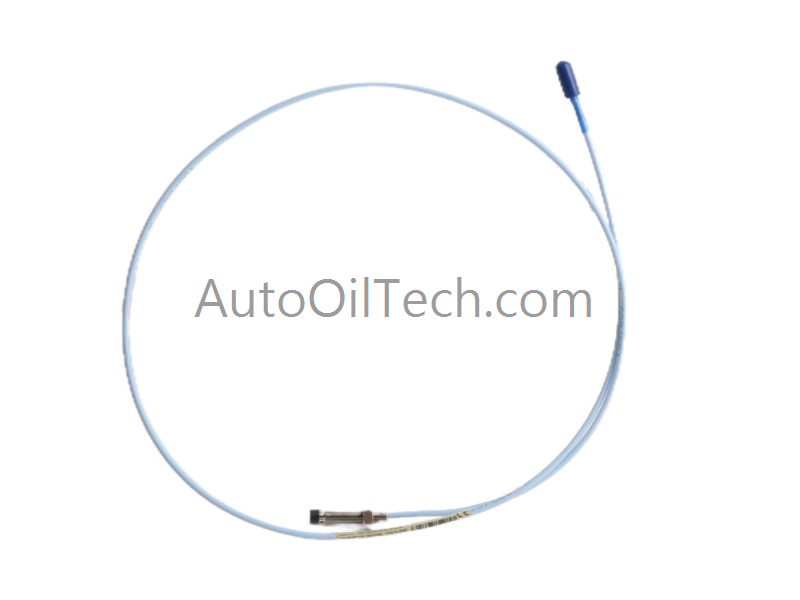

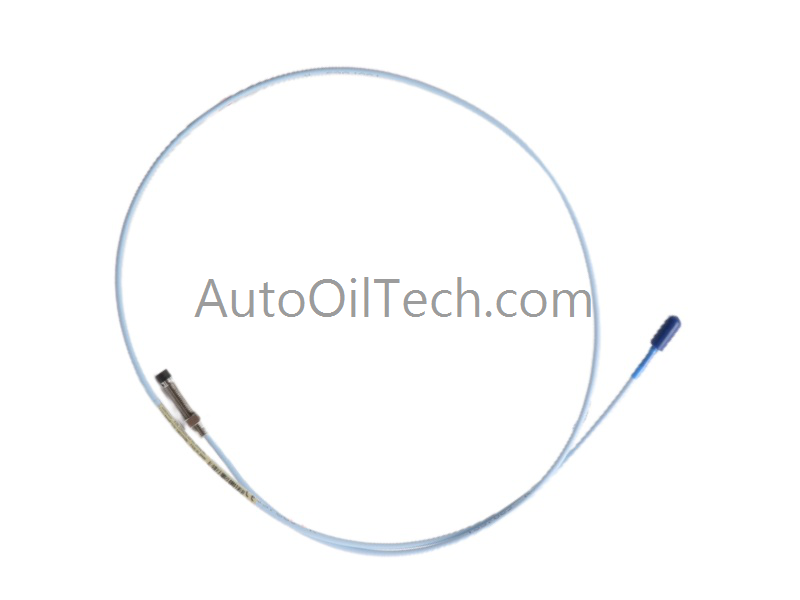

The 330101‑00‑15‑10‑02‑05 uses an M10 × 1 threaded armored body with a molded PPS plastic tip that protects the internal coil. This thicker encapsulation improves durability during continuous operation. The probe integrates smoothly into 3300 XL transducer systems and supports precise eddy‑current measurements across a wide range of machinery applications.
Technical Specifications
Parameter
Value
Model Number
330101‑00‑15‑10‑02‑05
Module Type
3300 XL 8 mm Proximity Probe
Thread Type
M10 × 1
Cable Length
1.5 m
Probe Tip Material
PPS molded plastic
Pull Strength
330 N (CableLoc)
Connector Type
Miniature coaxial ClickLoc
Interchangeability
Full with 3300 XL and non‑XL 5 mm / 8 mm components
Certifications
CSA, ATEX, IECEx
Dimensions
1.8 × 1.6 × 123 cm
Weight
0.06 kg
Origin
USA
Condition
Brand New
MOQ
1
Performance and Design
The 330101‑00‑15‑10‑02‑05 generates a voltage output proportional to the probe‑to‑target distance, which supports accurate static and dynamic measurements. Its TipLoc molding method strengthens the bond between the probe tip and body, while the CableLoc design provides 330 N of pull strength for secure cable retention. These features improve reliability in high‑vibration environments.
Applications and Compatibility
The 330101‑00‑15‑10‑02‑05 supports vibration monitoring, shaft position measurement, and Keyphasor reference tasks in high‑speed rotating equipment. Its full interchangeability eliminates the need for matching or bench calibration. The probe maintains backward compatibility with non‑XL 3300 series components when minimum bend radius requirements are followed.
Key Features
Uses armored M10 × 1 threaded design for rugged installations
Provides accurate static and dynamic proximity measurements
Features PPS molded tip for enhanced coil protection
Offers TipLoc and CableLoc technologies for improved durability
Carries CSA, ATEX, and IECEx approvals for hazardous environments
Ensures full compatibility with 3300 XL and non‑XL systems
