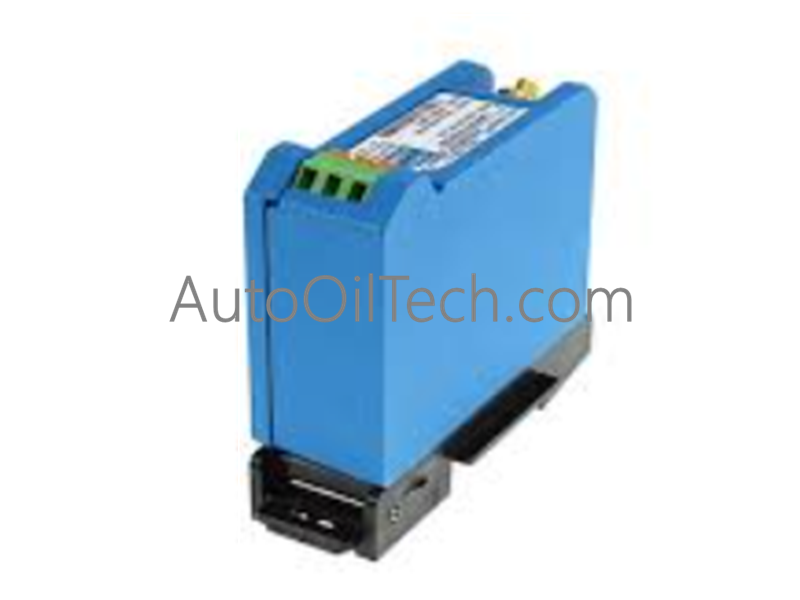

Bently Nevada 330100-50-01 signal conditioner

Engineering Purpose

The 330100-50-01 is a high-performance signal conditioner that processes non-contact displacement data. It generates an RF signal to drive a 3300-series or 3300 XL 8 mm probe, converting the resulting impedance change into a linear -18 to -26 Vdc voltage. This allows for precise monitoring of vibration and axial position on high-speed rotating machinery.

Technical Data Summary

• Component Type: Proximitor Sensor (Signal Conditioner)

• Part Number: 330100-50-01

• System Length: 5.0 meters (16.4 feet)

• Linear Range: 0.25 to 2.3 mm (10 to 90 mils)

• Scale Factor: 7.87 V/mm (200 mV/mil) $\pm$5%

• Frequency Response: 0 to 10 kHz (+0, -3 dB)

• Power Supply: -17.5 to -26 Vdc

• Agency Approval: CSA/NRTL/C (Option 01)

Decoding the Model Configuration

• 330100: Bently Nevada 3300 series Proximitor base platform.

• 50: Total System Length. Tuned for 5.0-meter probe/cable assemblies.

• 01: Agency Approval Option. Certified for CSA/NRTL/C standards, suitable for specific hazardous area classifications in North America.
