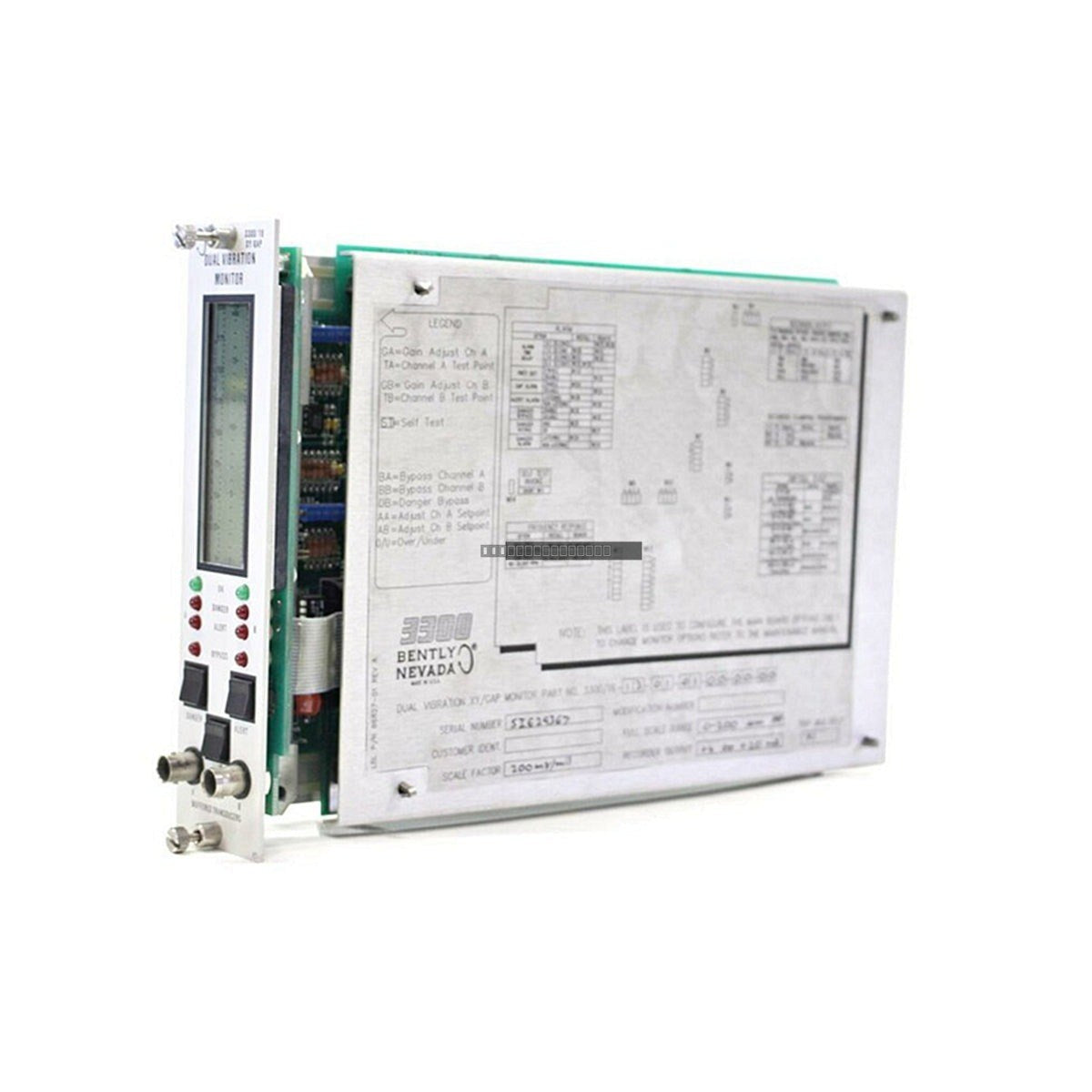

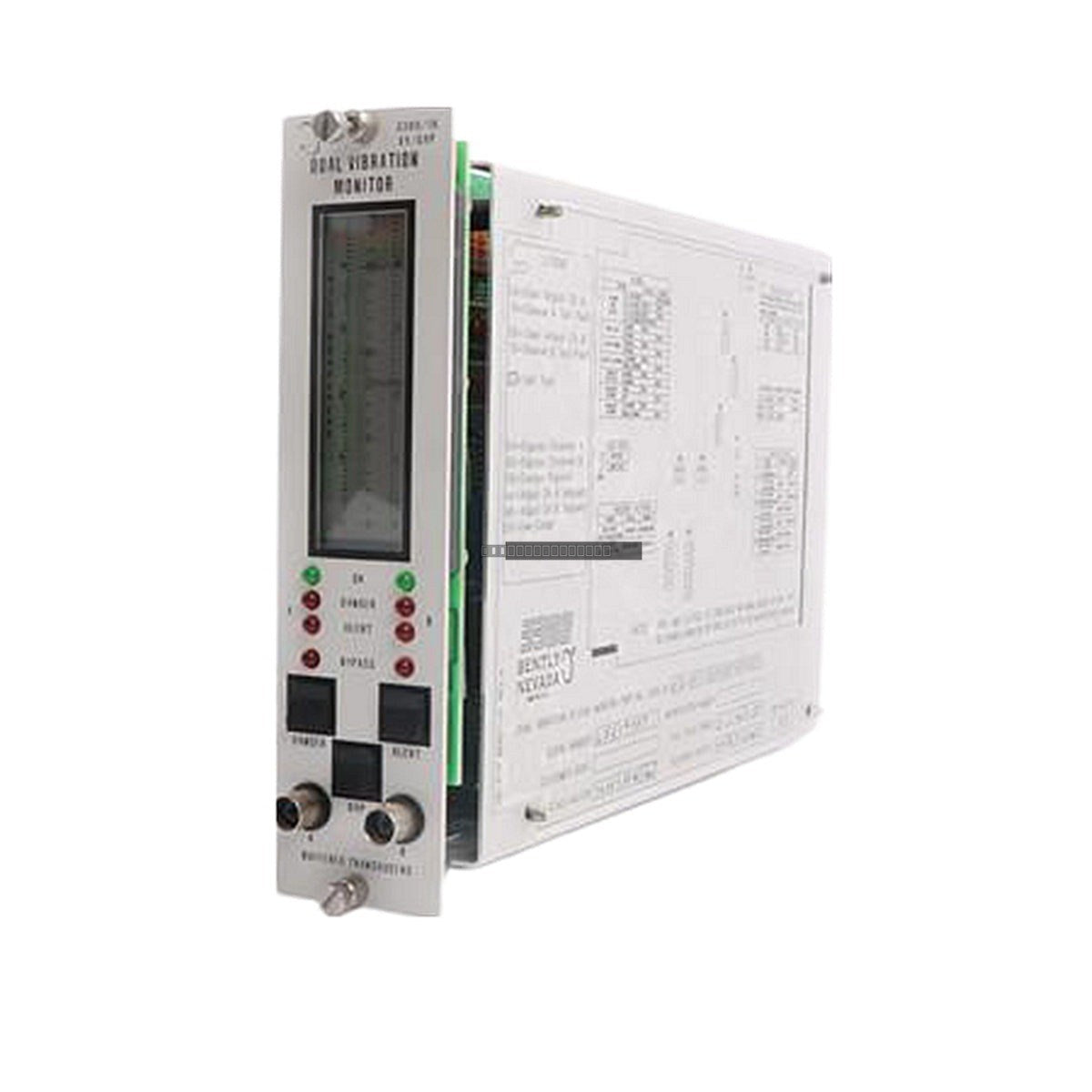

Bently Nevada 3300/16-13-01-01-00-00-00 XY/Gap Dual Vibration Monitor

Description

The Bently Nevada 3300/16 XY/Gap Dual Vibration Monitor is a specialized rack-mounted module designed for the 3300 Monitoring System. It provides simultaneous measurement of radial shaft vibration and probe gap voltage. By continuously monitoring these parameters against user-defined alarm setpoints, the module provides critical protection for rotating machinery, including industrial turbines, centrifugal compressors, and large pumps. This unit supports predictive maintenance strategies by delivering reliable, high-resolution displacement and vibration data to the control system.

Features

• Dual-channel monitoring capability for XY vibration and gap voltage.
• Continuous signal processing with integrated Alert and Danger alarm logic.
• Compatible with standard Bently Nevada proximity probe and Proximitor sensor systems.
• Front-panel LED status indicators for OK, Bypass, Alert, and Danger conditions.
• Configurable output options including 4-20 mA, 1-5 VDC, and 0 to -10 VDC signals.
• Designed for seamless integration into existing 3300 series rack environments.

Applications

• Radial shaft vibration monitoring for fluid-film bearing machines.
• Proximity probe gap voltage monitoring for machine health diagnostics.
• Critical asset protection in petrochemical, power generation, and oil and gas facilities.
• Integration with DCS or PLC systems for automated machinery shutdown and data logging.

Technical Specifications

Installation Guidelines

• Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
• The module must be installed in a clean, dry environment within the specified temperature range.
• Use shielded twisted-pair cabling for all transducer inputs to minimize EMI/RFI interference.
• Ensure proper grounding of the 3300 rack system per Bently Nevada installation manuals to maintain signal integrity.
• Verify that all field wiring is correctly terminated at the rack backplane before applying power.
• Confirm that the configuration switches/jumpers match the specific transducer and range requirements for the application.

FAQ

What is the primary function of the 3300/16 monitor?

The 3300/16 is designed to monitor radial shaft vibration and probe gap voltage simultaneously, providing essential data for machinery protection and condition monitoring.

Is this module compatible with existing 3300 series racks?

Yes, this module is specifically engineered for the 3300 rack system and is fully compatible with standard 3300 backplanes.

What do the status LEDs on the front panel indicate?

The LEDs provide visual confirmation of the module's operational status, including OK (system health), Bypass (maintenance mode), and Alert/Danger (alarm thresholds exceeded).
