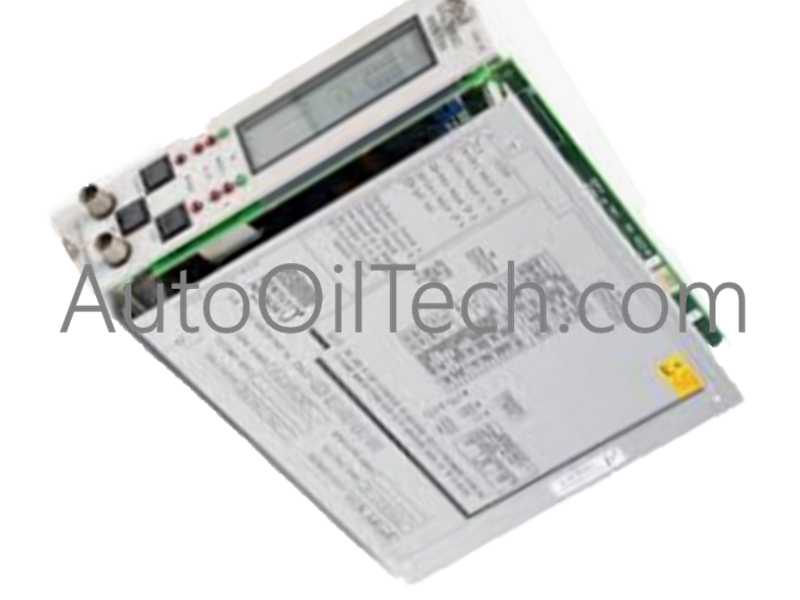

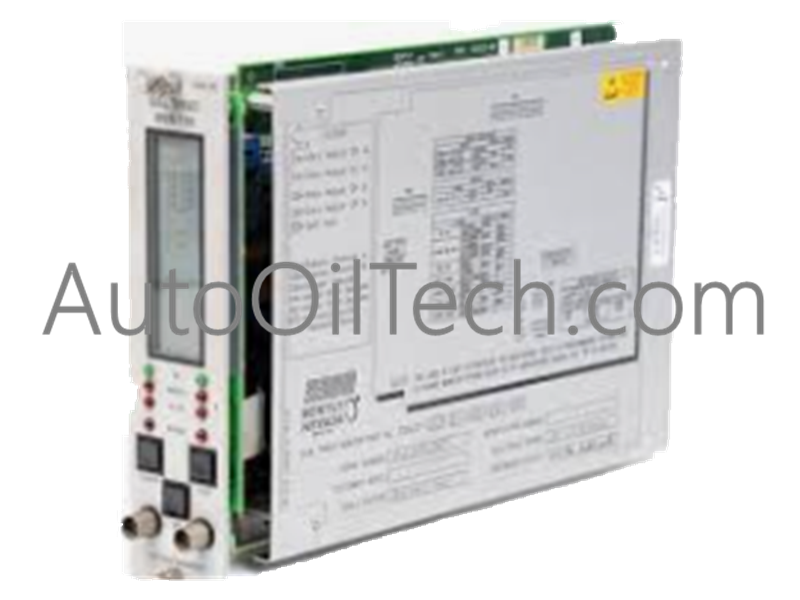

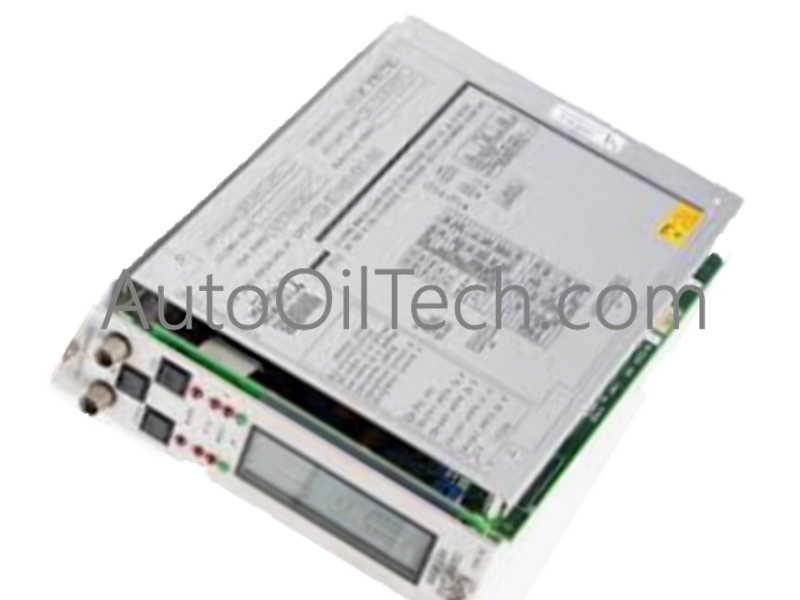

Bently Nevada 3300/16-12-01-02-01-02-00 Machinery Protection System

Product Overview

The Bently Nevada 3300/16-12-01-02-01-02-00 is a dual-channel vibration monitor designed for the continuous protection of high-value rotating assets. It accepts inputs from two Proximitor® systems to measure radial vibration and shaft position (gap).

Technical Specifications

• Model Number: 3300/16-12-01-02-01-02-00.

• Type: XY / Gap Dual Vibration Monitor.

• Input Type: Dual Proximitor® Sensor Systems.

• Relay Type: Hermetically Sealed Relay Outputs.

• Approvals: CSA / NRTL / C certified for industrial safety.

• Dimensions: 19.8 cm x 16.2 cm x 10.8 cm.

• Weight: 1.2 kg.

• Compliance: Fully API 670 compliant machinery protection.

Key Features and Engineering Advantages

• Dual Monitoring Modes: Supports independent X/Y channel monitoring or dual radial measurements on a single shaft, providing flexibility for various machine configurations.

• Integrated Gap Diagnostic: Dedicated shaft position (gap) measurement allows engineers to monitor shaft centerline tracking, essential for identifying alignment issues.

• Electrical Robustness: Features hermetically sealed relays that prevent contact oxidation, ensuring the module can trigger emergency trips reliably in corrosive or harsh industrial atmospheres.

• Enhanced Protection Logic: Includes sophisticated voting logic and "OK" circuit supervision to prevent false trips while maintaining high sensitivity to real mechanical faults.

• Legacy Compatibility: Designed for seamless integration into existing 3300 series rack infrastructures, making it an ideal choice for both new installations and lifecycle upgrades.
