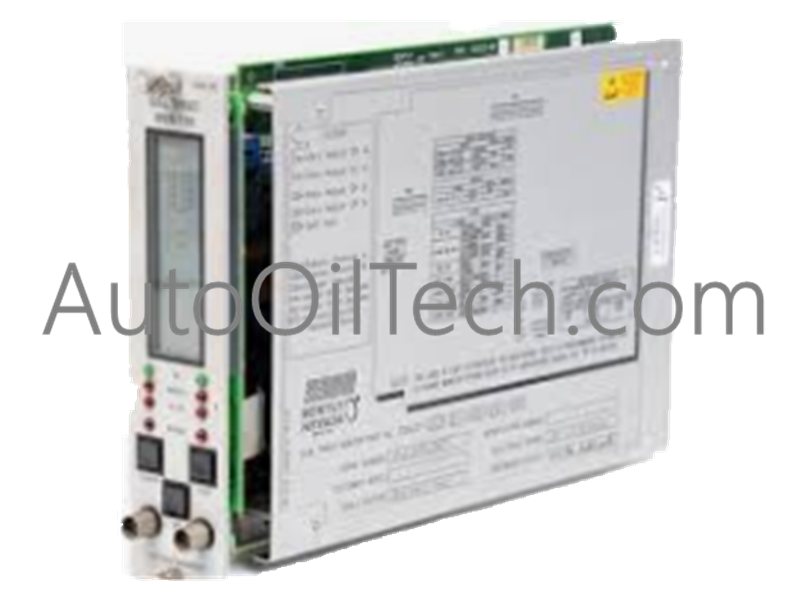

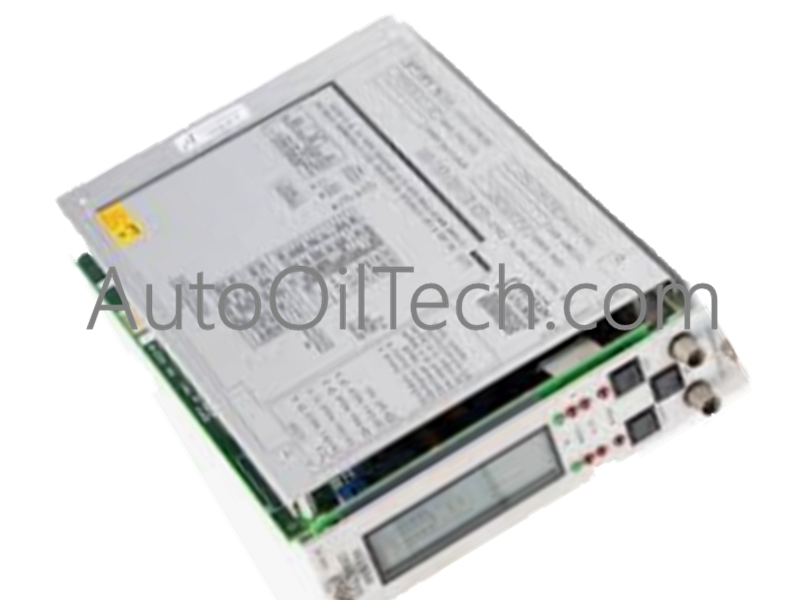

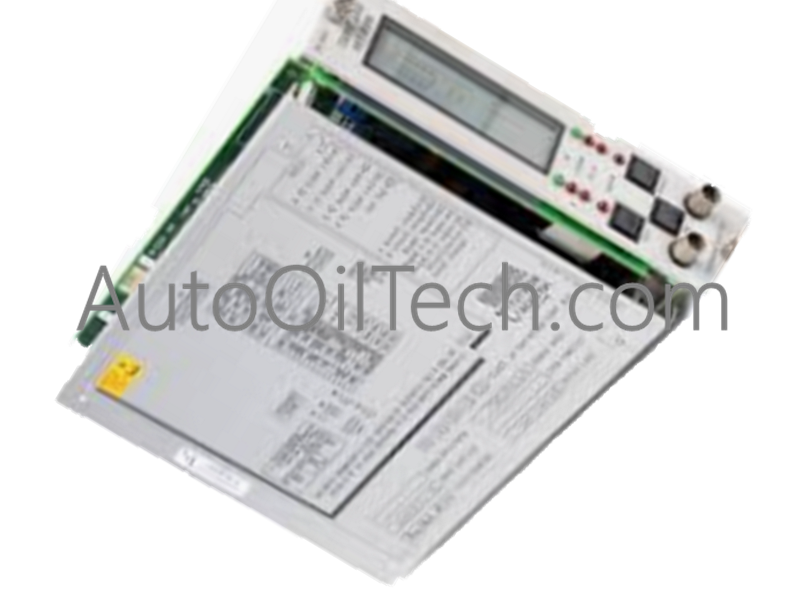

Bently Nevada 3300/16-12-01-02-00-00-00 Dual Vibration Monitor

Product Overview

The Bently Nevada 3300/16-12-01-02-00-00-00 is a high-reliability dual-channel monitoring module designed for the continuous protection of rotating machinery. It provides two independent channels for measuring radial vibration and average shaft position (gap).

Technical Specifications

• Model Number: 3300/16-12-01-02-00-00-00.

• Module Type: Dual Vibration Monitor (XY/Gap).

• Measurement Channels: 2 Independent Channels.

• Input Type: Proximitor® and Eddy-Current Proximity Probes.

• Full Scale Range: Determined by the -12 configuration.

• Power Supply: 120V AC.

• Operating Temperature: -40°C to +70°C (-40°F to +158°F).

• Dimensions: 5.7 cm x 20.3 cm x 33.0 cm.

• Weight: 1 kg.

Model Breakdown (Options)

• 3300/16: Dual Vibration Monitor Base.

• -12: Specific Full Scale Range.

• -01: Standard Transducer Input type.

• -02: Equipped with Alarm Relay Option.

• -00: No Agency Approvals.

• -00: No Safety Barriers.

• -00: No Trip Multiply option included.
