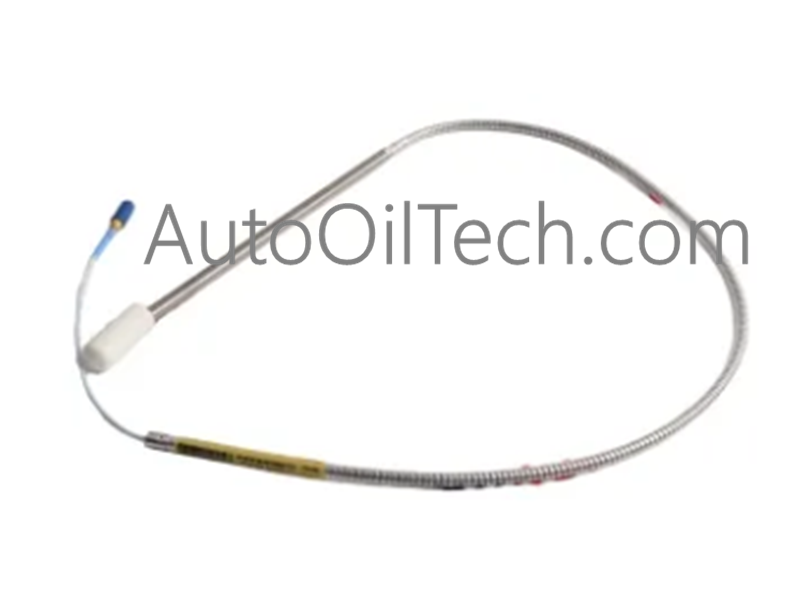

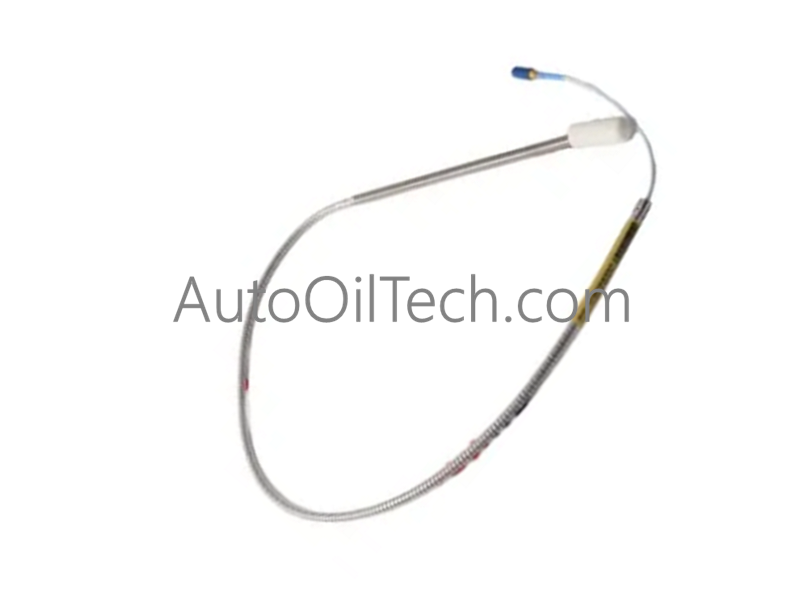

Bently Nevada 30909-00-99-10-02-00 series

Product Overview

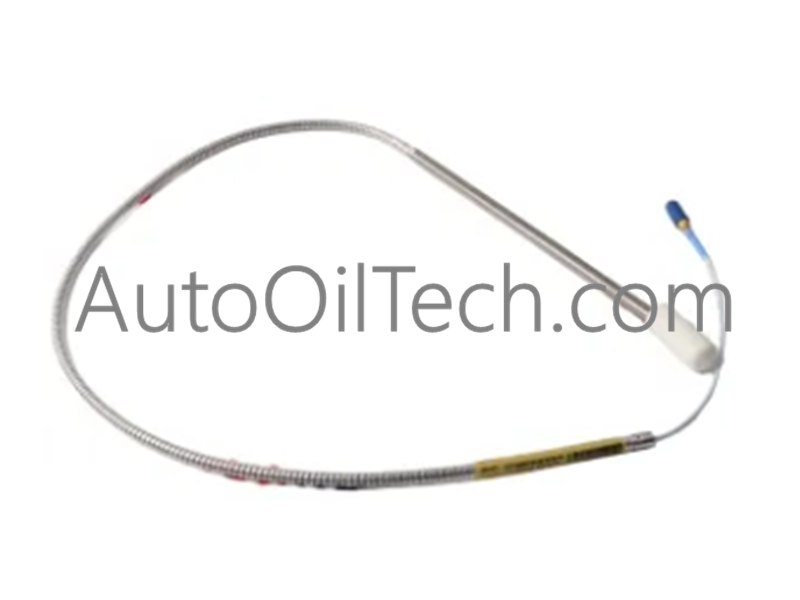

The 330909-00-99-10-02-00 is an engineered proximity probe for the Bently Nevada 3300 XL NSv (Near-field) series. It addresses signal degradation issues common when monitoring small-diameter shafts with standard sensors. By utilizing a tightly focused electromagnetic field, this transducer delivers precise sub-micron displacement and radial vibration data, serving as a critical diagnostic tool for the health of high-speed rotating equipment in confined spaces.

Detailed Technical Specifications

• System Series: 3300 XL NSv Proximity Transducer

• Probe Model: 330909-00-99-10-02-00

• Origin: USA (Authentic)

• Operating Range: 10 mm

• Detection Accuracy: +/- 0.5 mm

• Operating Voltage: 12 to 30 VDC

• Current Consumption: 20 mA (Maximum)

• Communication Interface: RS-485 Modbus RTU

• Operating Temperature: -40°C to +85°C

• Thread Size: 3/8-24 UNF

• Total Cable Length: 1.0 meter (39 in)

• Weight: 0.18 kg (Delivery weight)

Model Code Breakdown

The configuration 330909-00-99-10-02-00 is decoded as follows:

• 330909: Specifies the 3300 NSv series proximity probe with 3/8-24 UNF threads and armor.

• 00: Indicates zero unthreaded case length.

• 99: Confirms an overall physical case length of 9.9 inches.

• 10: Defines the total integrated system cable length as 1.0 meter.

• 02: Denotes a Miniature Coaxial ClickLoc connector with integrated cable armor.

• 00: Specifies standard regulatory compliance (no additional approvals required).
