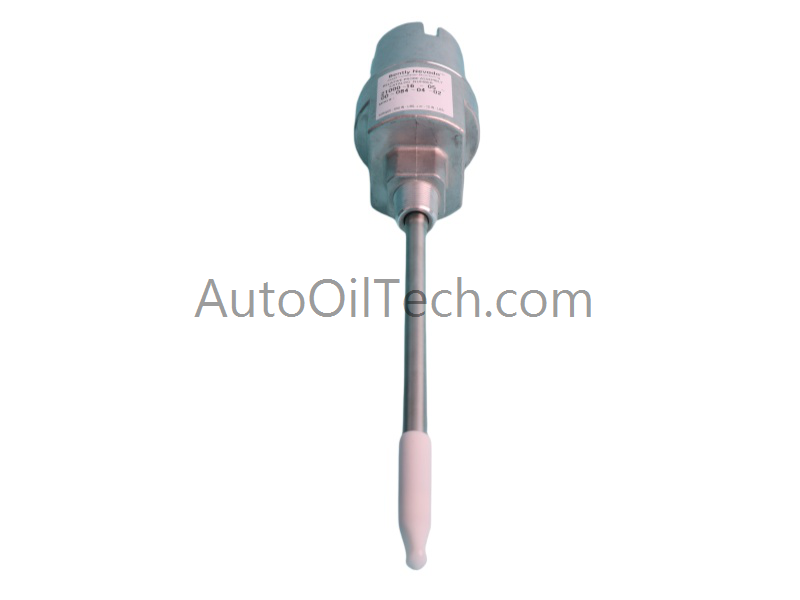

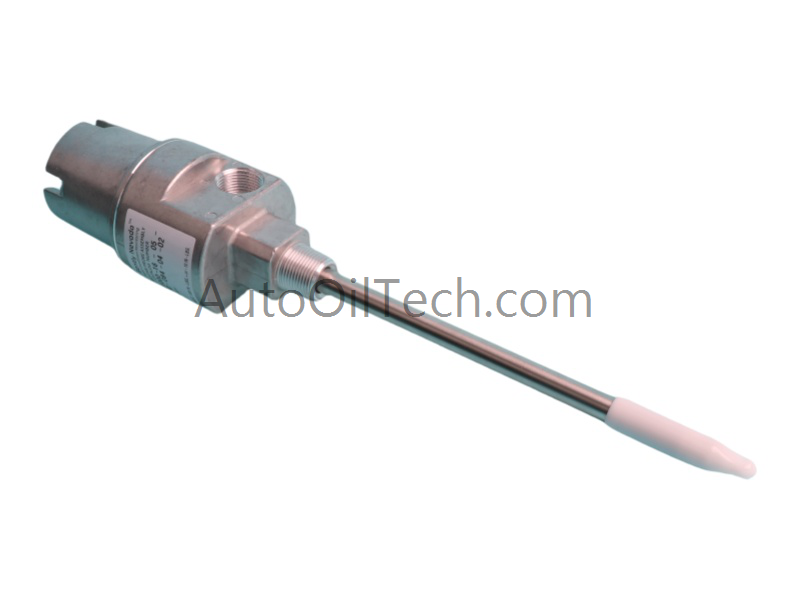

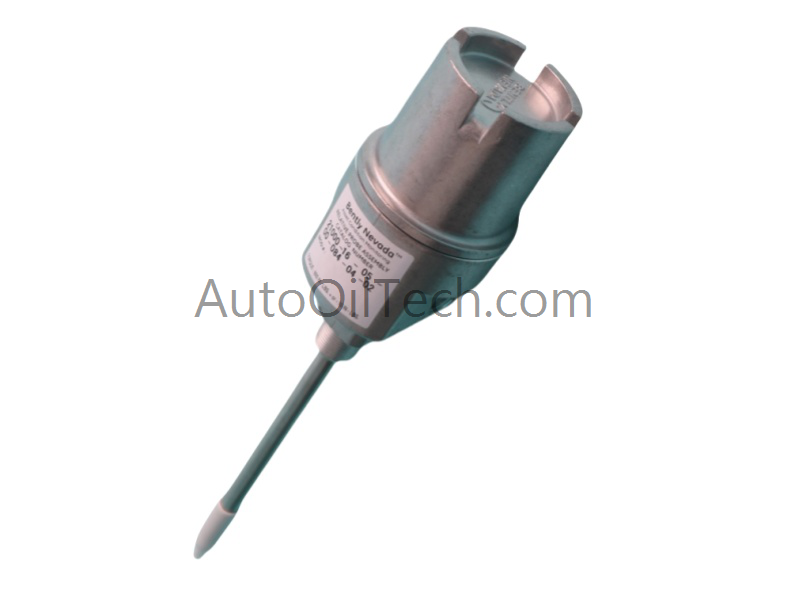

Bently Nevada 21000-16-05-15- 098-03-02 Proximity Probe Housing Assembly

Product Description

The 21000-16-05-15-098-03-02 is a high-performance external mounting solution designed for the Bently Nevada 3300 XL 8mm proximity probe series. This housing assembly provides a specialized protective environment for sensors in critical machinery applications, featuring a 1.5-inch standoff adapter and a 9.8-inch probe penetration depth. Built to withstand the rigors of industrial automation, it ensures precise sensor alignment while offering robust explosion-proof protection for hazardous locations.

Technical Specifications

• Manufacturer: Bently Nevada

• Full Model Number: 21000-16-05-15-098-03-02

• Housing Type: Proximity Probe Housing Assembly (21000 Series)

• Probe Configuration: Compatible with 3300 XL 8mm Probe with Connector (-16)

• Internal Cable Length: 0.5 m (20 in) (-05)

• Standoff Adapter Length: 1.5 in (38 mm) (-15)

• Probe Penetration Depth: 9.8 inches (-098)

• Body Material: Marine-grade Aluminum

• Sleeve Material: 304 Stainless Steel

• Mounting Thread: 3/4-14 NPT (-02)

• Included Fittings: NPT plug, reducer, and multi-size cable seal with grommets (-03)

• Thermal Range: -50°C to +80°C

• Safety Ratings: CSA Certified (Class I & II, Div 1 & 2); CSA Type 4 Enclosure

• Regulatory Compliance: FCC Part 15; RoHS Directive 2011/65/EU

• Unit Weight: Approximately 1.1 kg (2.4 lbs)

Operational Applications

This assembly is engineered for seamless integration into:

• API 670 Machinery Protection: Standardized external mounting for radial vibration and axial position monitoring.

• Hazardous Environments: Certified for use in explosive atmospheres where robust shielding is mandatory.

• Machine Case Mounting: Ideal for centrifugal pumps, motors, and compressors requiring specific standoff distances to clear insulation or external obstacles.
