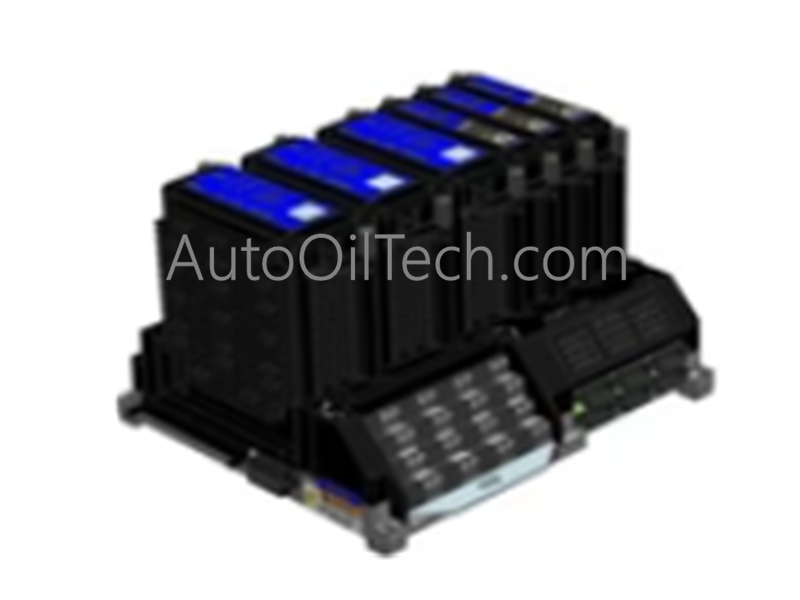

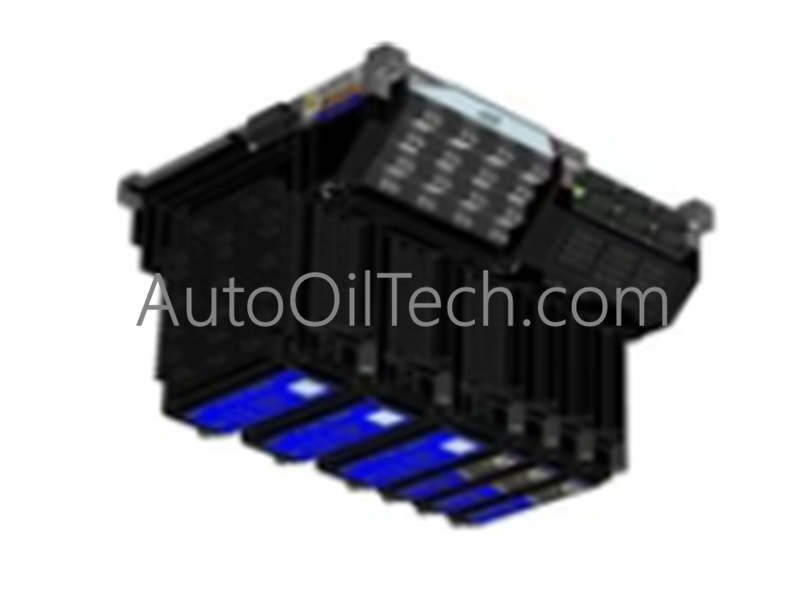

Bently Nevada 177989-01 PAV Input Module

Product Overview

The Bently Nevada 177989-01 is a high-performance Prox Accel Velom (PAV) input module specifically engineered for the ADAPT 3701/44 Machinery Dynamics Monitor. This versatile module serves as the primary interface for various sensor types, enabling the monitoring of complex rotating assets like turbines, compressors, and high-speed gearboxes.

Technical Specifications

• Part Number: 177989-01

• Module Type: Prox Accel Velom (PAV) Module

• System Compatibility: Bently Nevada ADAPT 3701/44

• Input Channels: 6 Vibration Channels + 1 Keyphasor/Speed Input

• Sensor Support:

• Proximity Probes (-24V) for radial/axial position

• 3-wire Accelerometers (-24V) for absolute casing vibration

• Velomitors (2-wire constant current) for velocity measurement

• Signal Processing: Real-time Acceleration-to-Velocity conversion and dynamic filtering

• Power: 24 V DC (Supplied via the ADAPT system base)

• Operating Temperature: -20°C to +65°C

• Mounting: Flexible Panel or Skid-mount configurations

Key Features & Engineering Advantages

• Universal Input Flexibility: The PAV module allows for a mix of sensor types on a single unit, enabling engineers to monitor shaft relative vibration and casing absolute vibration simultaneously without needing separate hardware sets.

• Advanced Dynamic Processing: Features high-fidelity signal conditioning that handles the integration of acceleration to velocity in real-time, providing the precise data needed for accurate vibration severity assessment.

• High Channel Density: With 6 channels in a single compact module, the 177989-01 is ideal for monitoring complex machine trains (e.g., a motor-gearbox-pump set) where space is limited.

• Ruggedized for the Field: Specifically designed for "skid-mounting," meaning it can be installed directly on the machine package, reducing long cable runs to the control room and enhancing signal-to-noise ratios.

• Native Speed Integration: The integrated Keyphasor channel allows for phase-synchronous data acquisition, which is essential for diagnosing unbalance, misalignment, and other phase-related mechanical faults.
