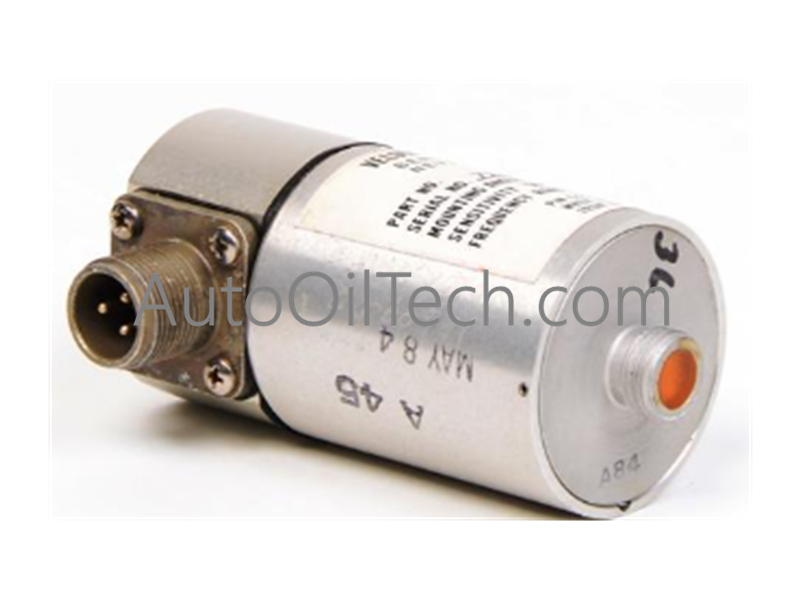

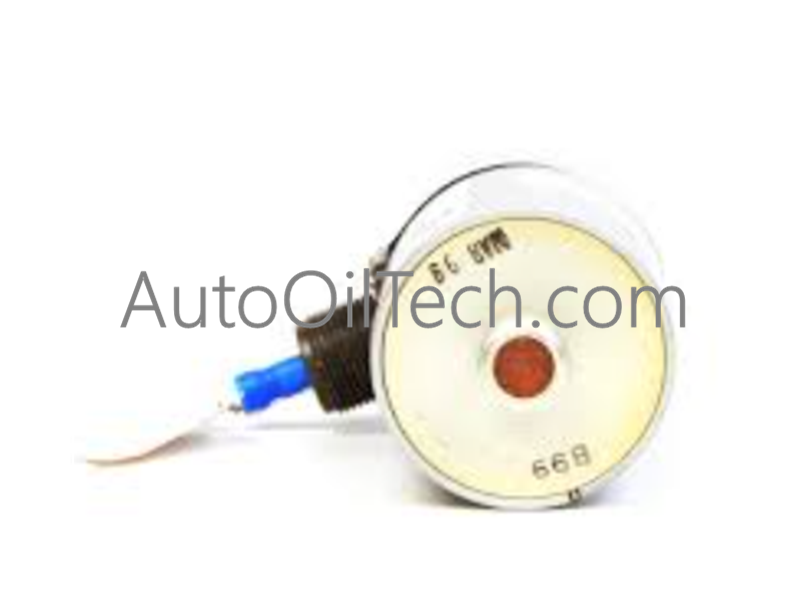

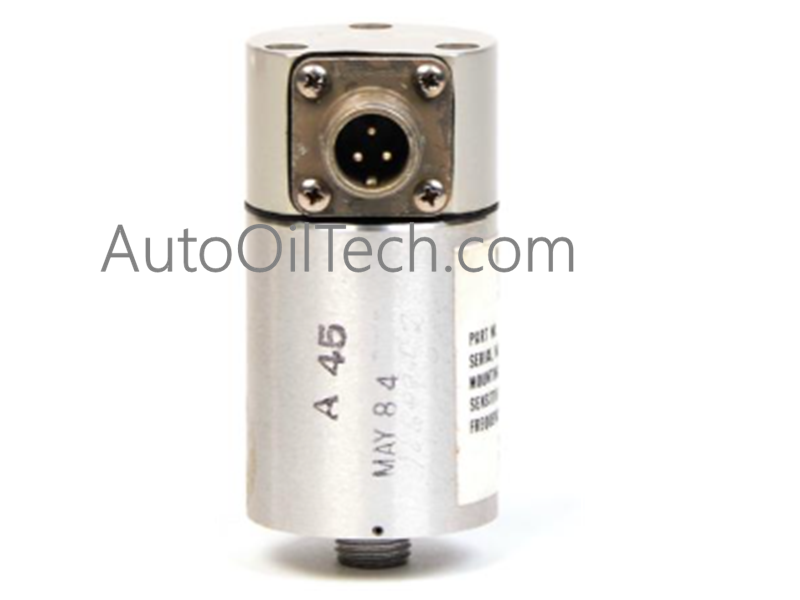

Bently Nevada 16699-10-02-01 Velocity Seismoprobe

Quick Overview

The 16699-10-02-01 is a high-precision Velocity Seismoprobe designed for measuring absolute casing vibration on critical rotating machinery. Utilizing a piezoelectric transducer, it converts mechanical motion into a high-output voltage signal proportional to velocity.

Technical Data

• Model Number: 16699-10-02-01

• Measurement Principle: Piezoelectric Velocity Transducer

• Frequency Range: 10 Hz to 1,000 Hz

• Sensitivity: 4.0 V/in/sec ±10%

• Output: Voltage proportional to vibration velocity

• Operating Temp: -35°C to +120°C

• Cable Length: 10 m (33 ft)

• Weight: 0.5 kg

• Housing Material: Industrial-grade Stainless Steel

Key Features

• Extended 10m Cable: The generous 33-foot integrated cable provides maximum flexibility for routing through cable trays and large machine skids without the need for immediate intermediate connectors.

• High-Accuracy Diagnostics: Optimized to detect the most common mechanical faults, including unbalance, shaft misalignment, and structural looseness, by providing a clean, high-amplitude signal.

• Rugged Stainless Steel Housing: The sensor is encased in a heavy-duty stainless steel shell, protecting the internal piezoelectric elements from the corrosive chemicals and physical impacts found in heavy manufacturing.

• Thermal Endurance: Engineered to operate reliably at temperatures up to +120°C, allowing for permanent installation on hot machine casings in power generation and petrochemical facilities.

• Simplified Integration: Designed for direct "plug-and-play" compatibility with Bently Nevada 3500 series monitoring racks and other standard industrial velocity interface modules.
