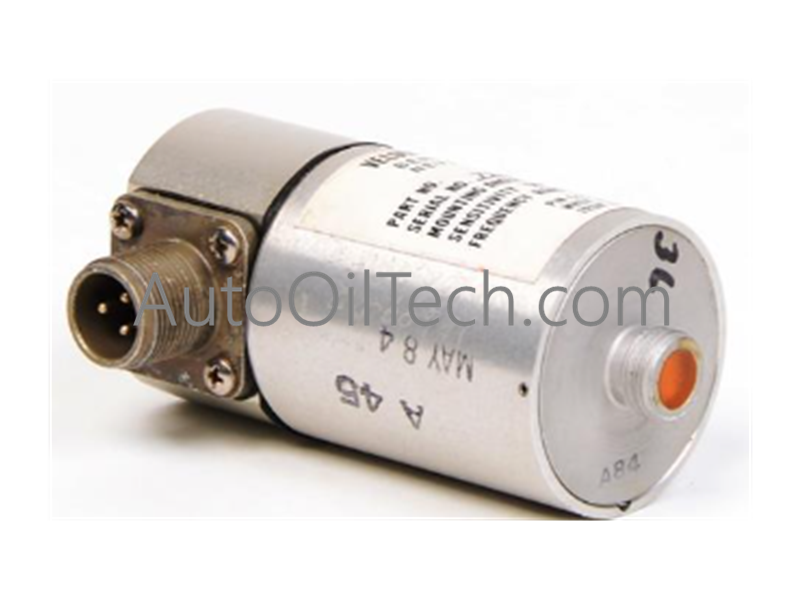

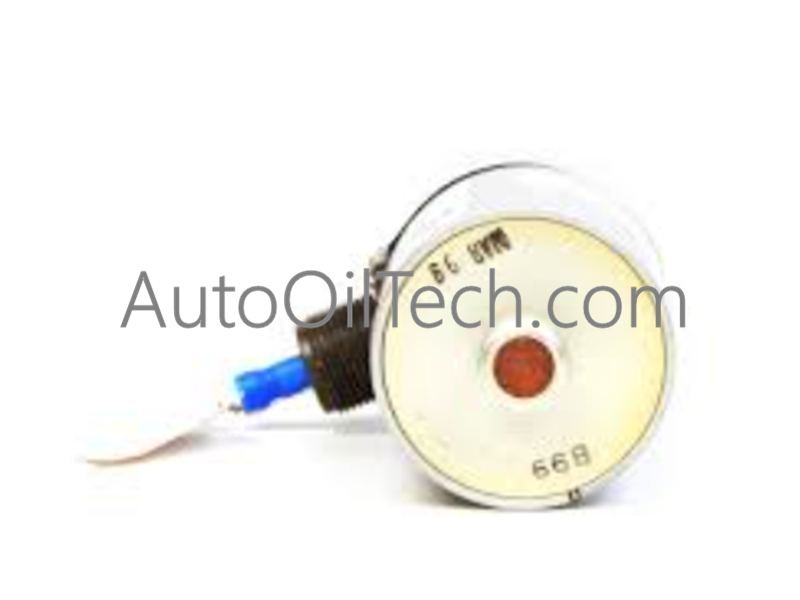

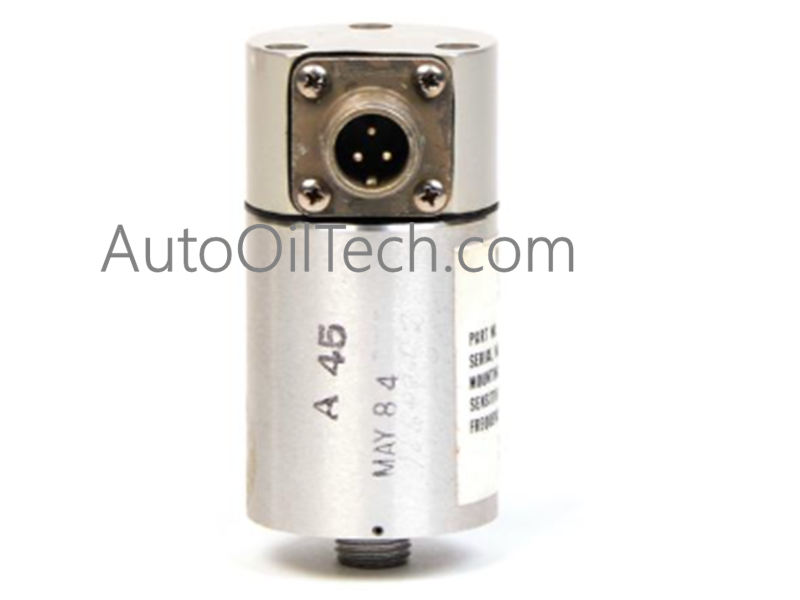

Bently Nevada 16699-03-02-02 Piezoelectric Velocity Seismoprobe

Quick Overview

The 16699-03-02-02 is a high-performance Velocity Seismoprobe designed for measuring absolute casing vibration on critical rotating assets. Utilizing piezoelectric sensing technology, it converts mechanical vibration into a high-output analog voltage signal proportional to velocity.

Technical Data

• Model Number: 16699-03-02-02

• Measurement Principle: Piezoelectric Velocity Sensing

• Frequency Range: 10 Hz – 1,000 Hz

• Sensitivity: 4.0 V/in/sec ±10%

• Output Signal: Analog Voltage (Proportional to Velocity)

• Operating Temp: -35°C to +120°C

• Cable Length: 3 meters (approx. 10 ft)

• Weight: 0.5 kg

• Housing Material: Industrial-grade rugged metal

Key Features

• Extended Cable Reach: Features a 3-meter (10 ft) integrated cable, providing additional flexibility for routing through conduits and reaching junction boxes in large turbine or compressor decks.

• Superior Sensitivity: Delivers a robust 4.0 V/in/sec output, ensuring that the vibration signal remains strong and clear even over long cable runs to the monitoring rack.

• Ruggedized Enclosure: Built with an industrial-grade metal housing designed to withstand the high-temperature and chemically aggressive environments typical of petrochemical and power generation facilities.

• Optimized Frequency Response: The 10–1,000 Hz range is specifically calibrated to ignore high-frequency "noise" while capturing the critical 1X and 2X rotational frequencies that indicate machinery health.

• High Thermal Stability: Capable of operating continuously at temperatures up to +120°C, making it ideal for direct mounting on hot steam turbine or gas generator casings.

• Plug-and-Play Integration: Fully compatible with Bently Nevada 3500 Series monitors and other standard velocity interface modules.
