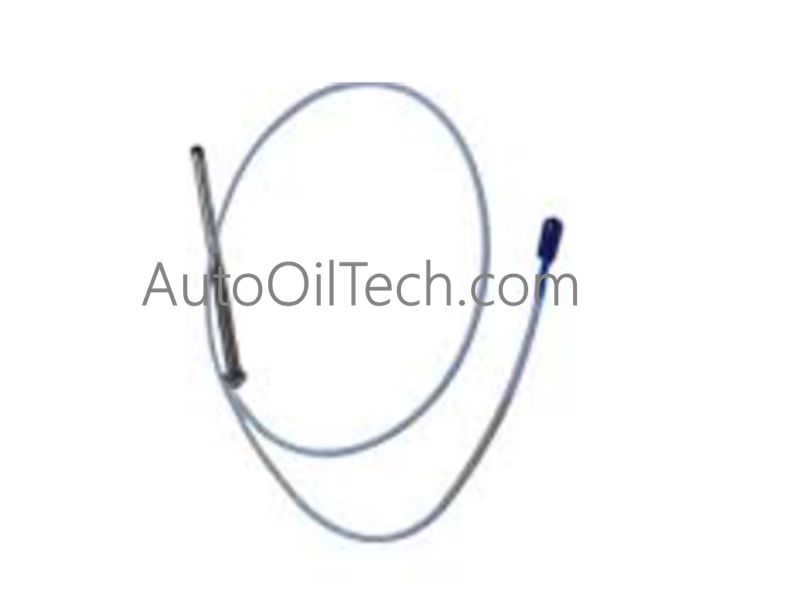

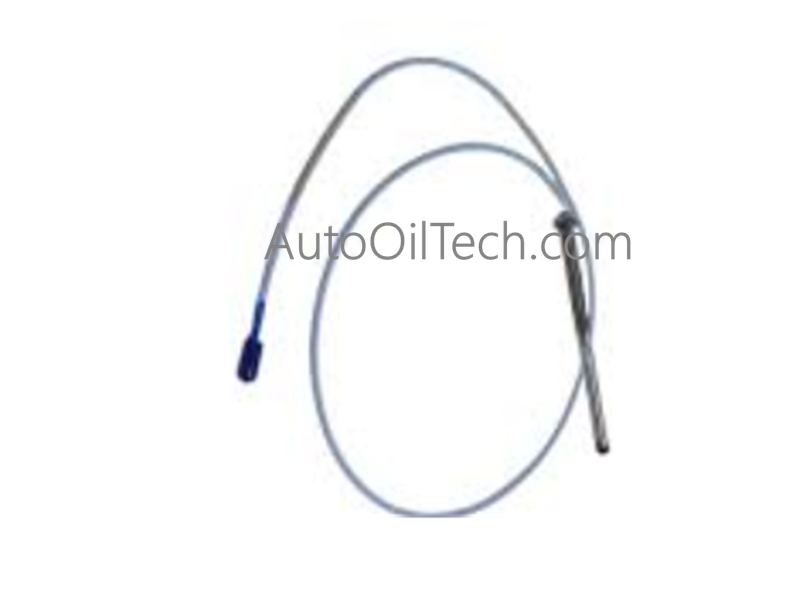

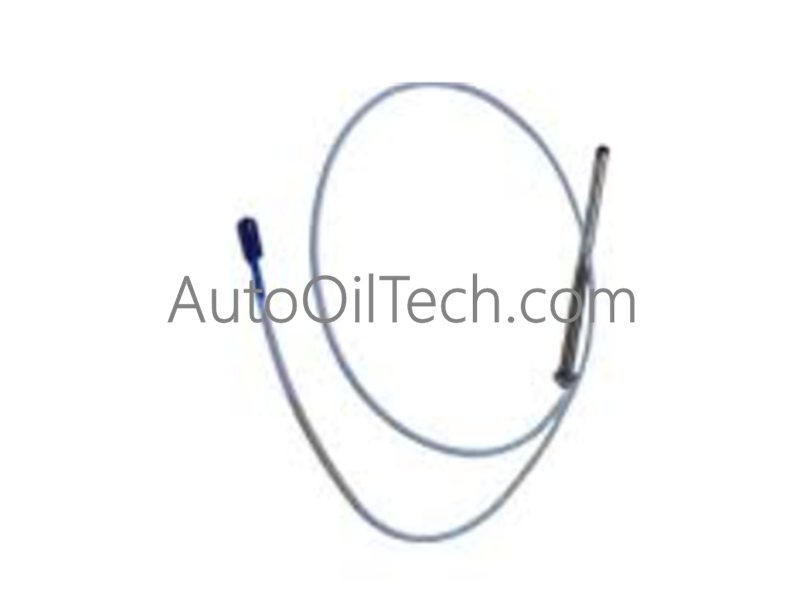

The165844-14is aHigh-Precision Proximity Probeengineered for non-contact measurement of shaft vibration and displacement in critical rotating machinery. Utilizing eddy current technology, this probe delivers exceptionally high resolution and sensitivity, making it an essential component for monitoring fluid-film bearing machines such as large turbines and compressors.
Technical Data
Model Number:165844-14
Measurement Range:0 to 1,000 μm (0 to 39,370 μin)
Resolution:0.1 μm (4 μin)
Sensitivity:10 mV/μm (254 mV/mil)
Frequency Response:5 Hz to 10 kHz
Operating Temp:-40°C to +85°C (-40°F to +185°F)
Protection Class:IP65
Material:Stainless Steel
Weight:800 g (1.76 lbs)
Key Features
High-Resolution Sensing:Provides 0.1 μm resolution, allowing for the detection of extremely subtle mechanical changes before they develop into major faults.
Rugged Stainless Steel Housing:Designed to resist corrosion and physical impact, ensuring the probe's longevity when mounted inside or near heavy machinery.
PTFE Cable Protection:The integrated cable is jacketed in PTFE (Teflon), providing superior resistance to industrial chemicals, oils, and high temperatures.
Non-Contact Reliability:By measuring displacement without touching the shaft, the probe avoids wear and tear, maintaining constant accuracy over years of continuous operation.
Flexible Mounting:Supports multiple installation configurations, including bulkhead screws for machine casing mounting and DIN rail clips for specialized bracket setups.
Broad Frequency Range:Captures vibration data from 5 Hz up to 10 kHz, covering both slow-roll sub-synchronous issues and high-frequency mechanical noise.
