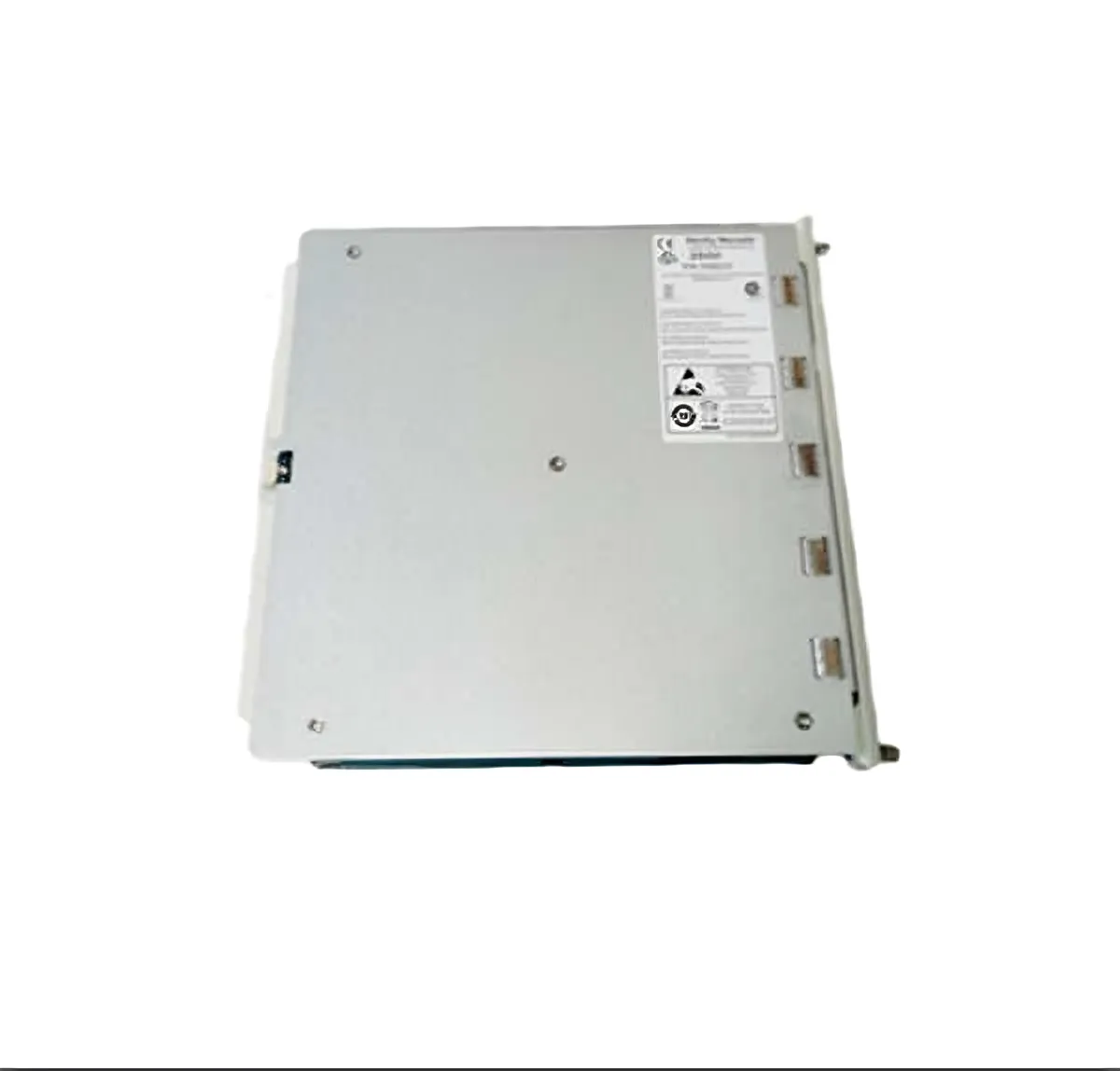

Bently Nevada 161204-01 | 3500/91 EGD Gateway Module (Spare)

In stock!
  • Part Number: 161204-01
  • Brand: Bently Nevada
  • Type: 3500/91 EGD Gateway Module
  • Dimensions: 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in)
  • Country of Origin: USA
  • Barcode: 161204-01

Additional Specifications

Color / Pattern
  • Gray
Tags: 3500/91 , EGD Gateway Module , TSI

Product Description

Overview

The Bently Nevada 161204-01 (3500/91 EGD Gateway Module) enables Ethernet-based communication for the 3500 machinery monitoring system. It allows real-time data exchange of rack-monitored values and statuses over Ethernet Global Data (EGD) networks, ensuring fast, reliable integration with compatible controllers. Supporting IEEE 802.3 Ethernet standards, it provides flexible connectivity through both copper (10BASE-T/100BASE-TX) and fiber-optic (100BASE-FX) interfaces.

Key Features

  • Provides Ethernet Global Data (EGD) communication for the 3500 system.
  • Supports EGD v2.01 and Ethernet UDP/IP protocols.
  • Enables controller-level data exchange with low response times.
  • LED indicators show operational status and communication activity.
  • Compact design suitable for full-height front and rear rack slots.

Technical Specifications

General Specifications
Model 161204-01 (3500/91 EGD Gateway Module)
Supported Protocols EGD v2.01, Ethernet UDP/IP
Ethernet Standard IEEE 802.3, 10BASE-T / 100BASE-TX (Twisted Pair)
Power Consumption 7.4 W typical
Connections RJ-45 (10BASE-T/100BASE-TX) or MT-RJ (100BASE-FX)
Front Panel Indicators OK LED, TX/RX LED
Environmental Limits
Operating Temperature -30°C to +65°C (-22°F to +150°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing
Physical Specifications
Main Module Dimensions 241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in)
Main Module Weight 0.79 kg (1.75 lbs)
I/O Module Dimensions 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in)
I/O Module Weight 0.39 kg (0.85 lbs)
Rack Requirements 1 full-height front slot (Main Module), 1 full-height rear slot (I/O Module)

Ordering Information

  • 161204-01 — Bently Nevada 3500/91 EGD Gateway Module (Spare)
