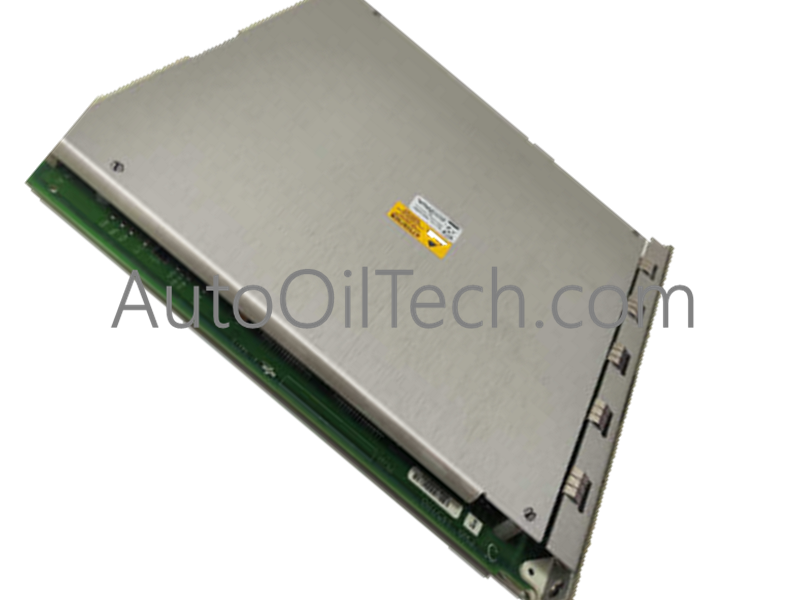

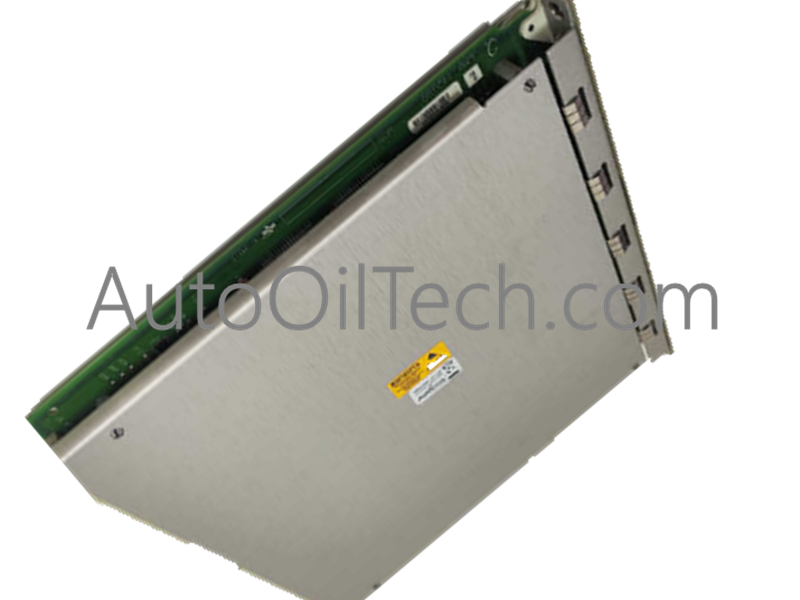

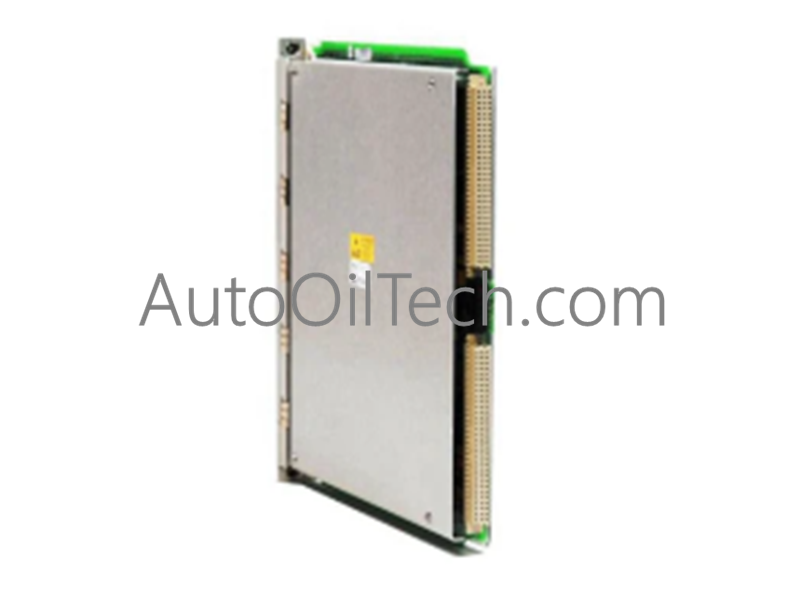

Bently Nevada 145988-01 VGA Display Main Module

Product Overview

The Bently Nevada 3500/94-145988-01 is a specialized display module designed to provide a high-resolution visual interface for the 3500 machinery protection system. It translates internal rack data into a standard VGA format, allowing operators to view critical machinery measurements on a color monitor with Touch Screen technology.

Technical Specifications

• Part Number: 3500/94-145988-01.

• Series: Bently Nevada 3500.

• Function: VGA Display Main Module.

• Display Type: Standard Color VGA.

• Input Technology: Touch Screen.

• Mounting Distance: Up to 10 m (33 ft) from the rack.

• Indicators: OK and Bypass LEDs.

• Software Requirement: 3500 Rack Configuration Software.

Key Features and Engineering Advantages

• Flexible Customization: Operators can locally configure up to nine custom screens. This allows for the grouping of specific data types, such as 1X measurements, Gap values, or specific machine train arrangements.

• API-670 Compatibility: Includes a dedicated screen mode that displays a "3300-style" bargraph and numerical values, ensuring compliance with industry-standard machinery protection requirements.

• Remote Visibility: The ability to mount the monitor up to 10 meters from the rack provides flexibility in control room or field-side panel layouts.

• Interactive Control: Touch Screen technology eliminates the need for external mice or keyboards, simplifying the operator's interaction with the machinery data.

• Modular Setup: The two-part design (Module/IO card + Monitor) allows for easier maintenance and the ability to swap monitors without disturbing the internal rack wiring.
