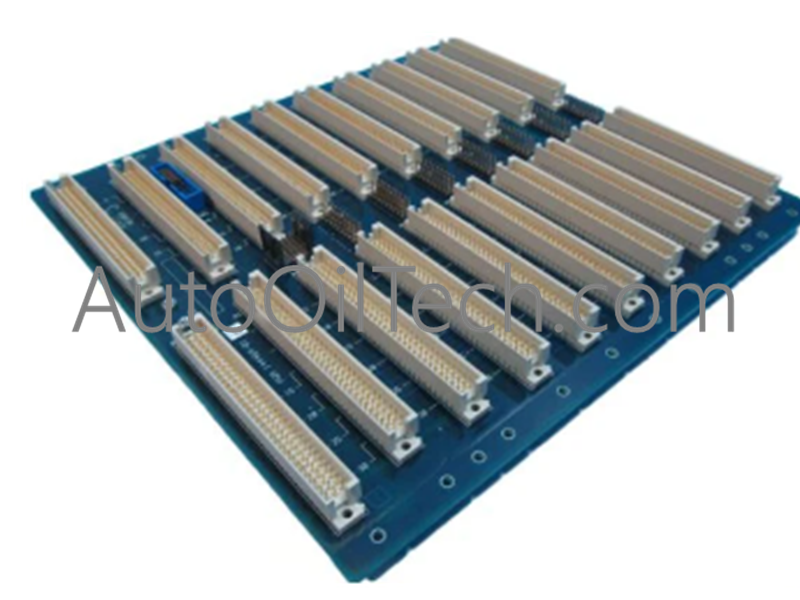

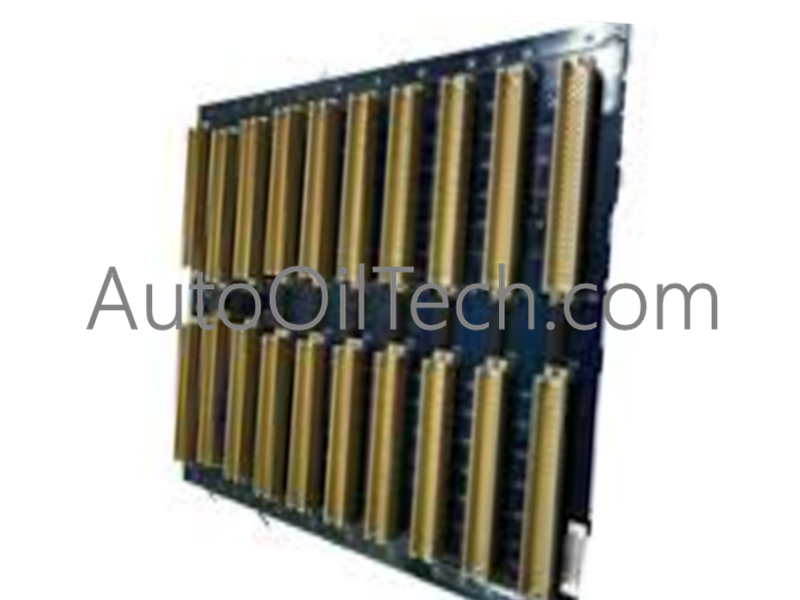

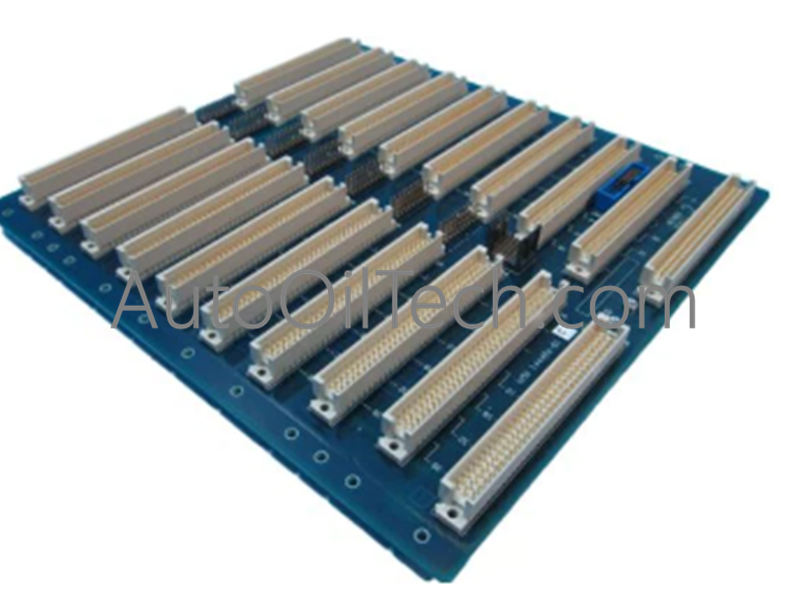

Bently Nevada 144464-01 Rack Component

Quick Overview

The 144464-01 is a foundational Backplane component for the Bently Nevada 3500/05 Rack System. Acting as the "nervous system" of the machinery protection rack, it provides the electrical and communication pathways that connect power supplies, monitor modules, and I/O cards.

• Part Number: 144464-01

• Rack Series: 3500/05

• Chassis Size: 10-Slot (Mini-Rack)

• Type: System Backplane

• Function: Power Distribution & Signal Communication

• Compatibility: 3500 Series Power Supplies, Monitors, and I/O Modules

Key Features

• 10-Slot Optimization: Specifically engineered for the 3500 "Mini-Rack," providing a compact footprint while still accommodating a full suite of power, interface, and monitoring modules.

• Mission-Critical Reliability: Built to survive the electrical noise and thermal stresses of industrial environments, ensuring that machinery protection signals are never interrupted.

• Passive Architecture: Designed as a passive electronic component to maximize Mean Time Between Failures (MTBF), as there are no active processors on the backplane itself to fail.

• Unified Communication Path: Facilitates high-speed proprietary bus communications between the Rack Interface Module (RIM) and individual monitors for synchronized data acquisition.

• Power Redundancy Support: Configured to handle dual power supply inputs, allowing for redundant power distribution across all installed modules in the rack.
