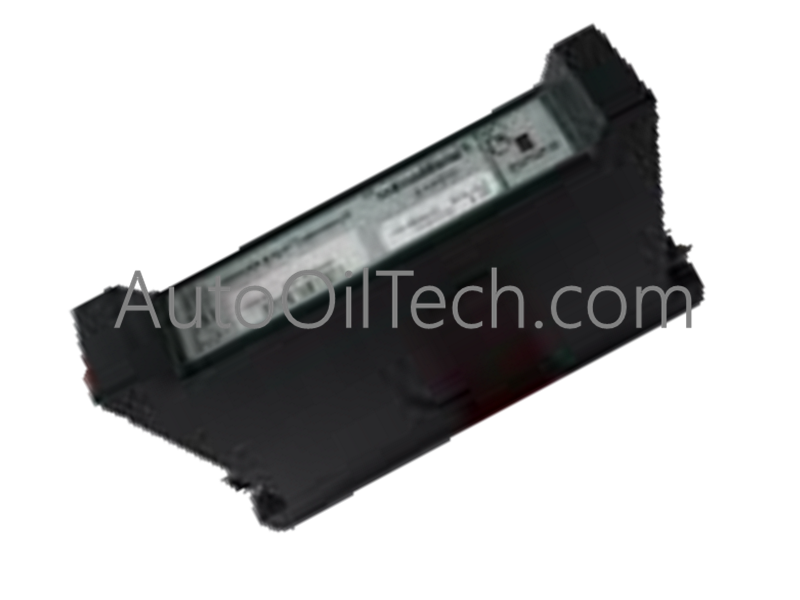

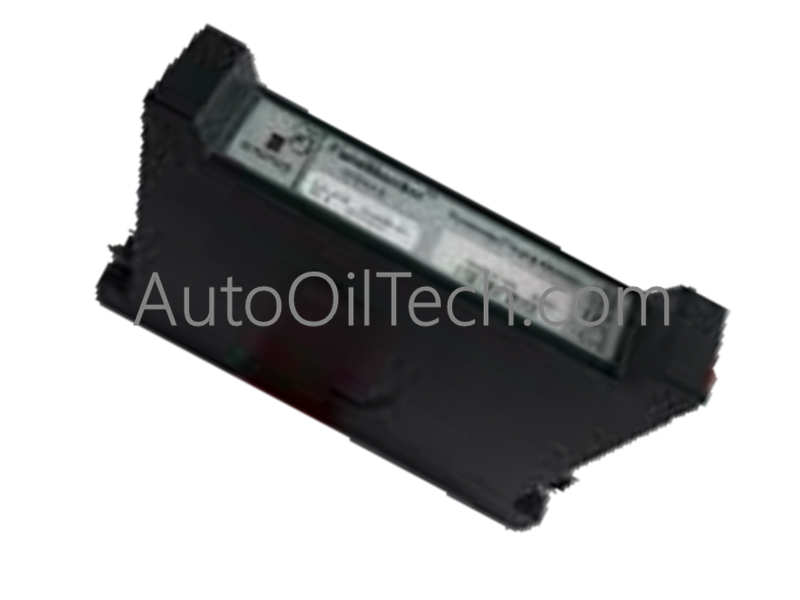

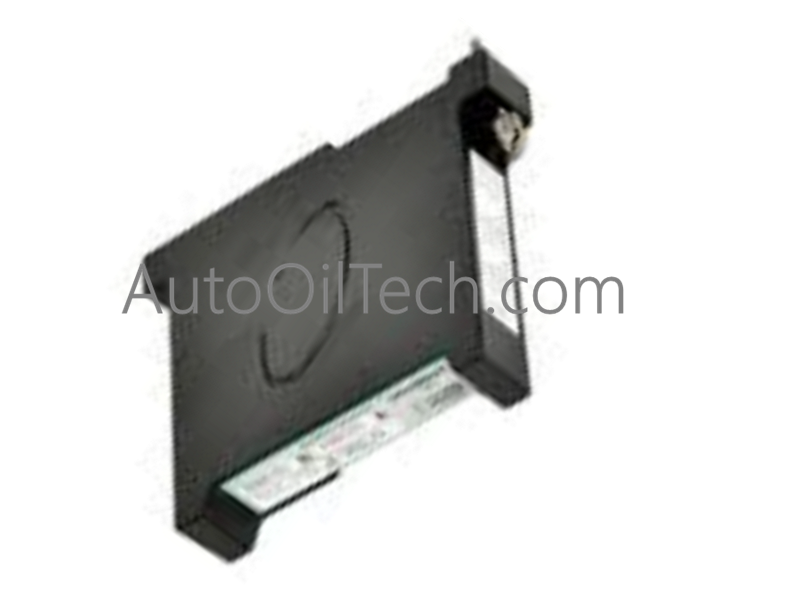

Bently Nevada 141379-01 Proximitor Signal Interface Module

Quick Overview

The 141379-01 is a high-performance Proximitor Input Module designed to bridge the gap between field sensors and the monitoring system. Engineered for the Bently Nevada FieldMonitor 1701/15 and 3500 series architectures, this module provides the precision needed for monitoring shaft position and vibration.

Technical Data

• Model Number: 141379-01

• Input Voltage: 18–32 VDC

• Output Voltage: 0–10 VDC

• Frequency Response: 10 Hz – 10 kHz

• Accuracy: ±1% Full Scale

• Operating Temp: -30°C to +65°C (-22°F to +150°F)

• Vibration Resistance: 2 g peak, 10–500 Hz

• Shock Resistance: 30 g, 11 ms

• Wiring Termination: Screw terminals (18–22 AWG)

• Weight: 200 g

Key Features

• Hot-Swappable Functionality: Enables seamless module replacement while the system remains energized, ensuring zero downtime for your machinery protection environment.

• Multi-Channel Versatility: Supports two- or four-channel configurations, allowing for simultaneous monitoring of multiple vibration points from a single module footprint.

• Integrated Diagnostics: Features built-in self-test capabilities that automatically monitor the health of the module and sensor loop, significantly reducing manual maintenance requirements.

• FieldMonitor Compatibility: Fully compatible with all FieldMonitor 1701/15 systems, providing a flexible deployment path for decentralized monitoring.

• Industrial Durability: Built to withstand extreme shocks and environmental stress, maintaining a stable 0–10 VDC output even in high-vibration factory settings.

• Simple Installation: Utilizes standard screw-terminal wiring for 18–22 AWG cables, facilitating quick and reliable field connections.
