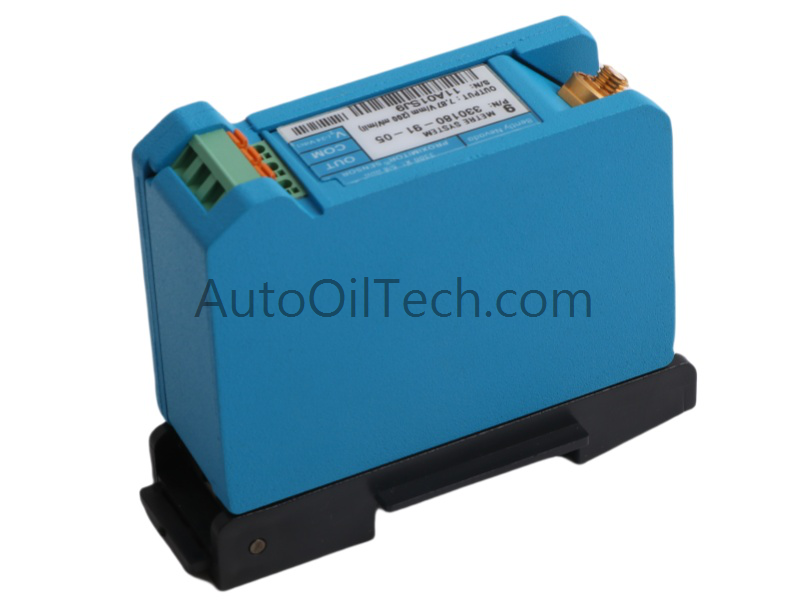

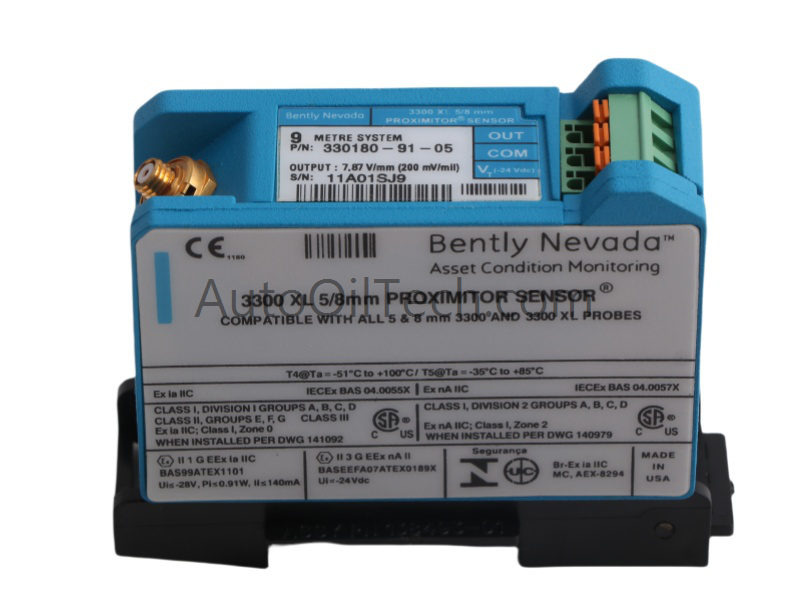

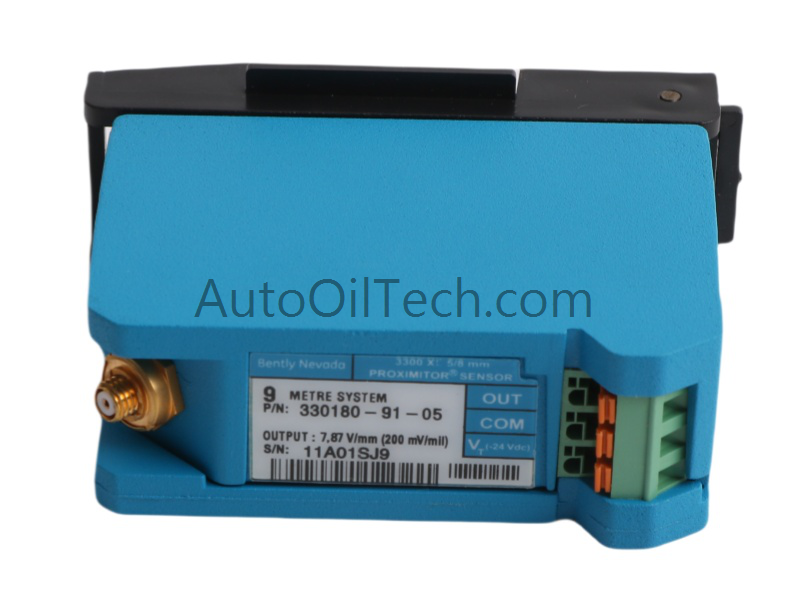

The Bently Nevada 138493-01 Replacement DIN-Mount Mounting Pad is a precision-engineered component for high-temperature proximity transducer systems. Designed for differential and rotor expansion monitoring, it supports large-diameter probes and extended-range measurements in steam turbines and compact compressors.
Technical Specifications
Parameter
Value
Model Number
138493-01
Manufacturer
Bently Nevada
Module Type
DIN-Mount Mounting Pad
System Compatibility
TSI, 3300 XL Series
Dimensions
8.5 cm × 8.5 cm × 30.5 cm
Weight
1.08 kg
Probe Support
50 mm Proximitor Sensor
Linear Range
27.9 mm (single), 56 mm (dual)
Communication
Ethernet router
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order Qty
1
Origin
USA
Lifecycle Status
Active
Application & Compatibility
The 138493-01 pad supports both single-side and dual-transducer DE configurations, enabling precise thermal growth tracking in steam turbines. Its NSv variant fits tight spaces and small shafts under 51 mm, supporting radial vibration, axial position, and Keyphasor measurements. This model replaces older 3300 RAM and 3000/7000-series setups, offering backward compatibility with enhanced signal stability.
