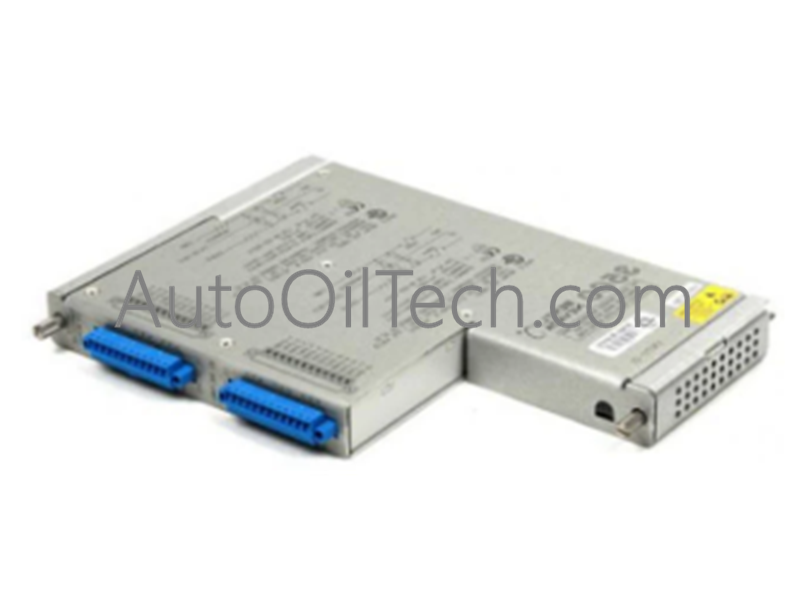

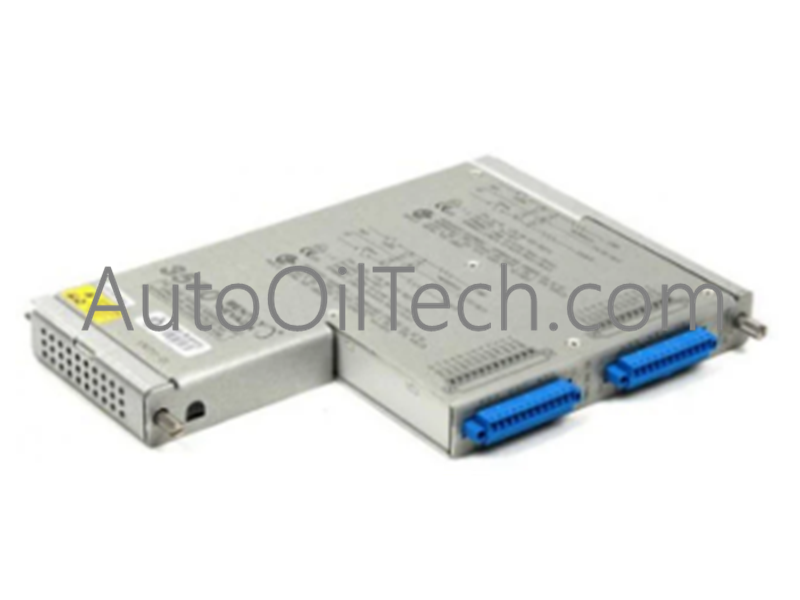

Bently Nevada 135799-02 Display Interface

Quick Overview

The 135799-02 is a specialized Display Interface Module (DIM) designed for the Bently Nevada 3500 Machinery Protection System. It acts as the critical communication bridge between the 3500 rack and a local display unit, providing operators with a direct visual window into system health. This module enables real-time monitoring of alarms, channel data, and system event lists, ensuring that site personnel have immediate access to vibration metrics and relay status without needing a separate computer.

Technical Data

• Model Number: 135799-02

• Product Type: Display Interface Module

• System Series: 3500 Machinery Protection System

• Dimensions: 241.3 mm (H) x 24.4 mm (W) x 241.8 mm (D)

• Weight: 0.82 kg

• Power Consumption: Up to 15.5 W (includes Display Unit)

• Operating Temp: -40°C to +85°C (-40°F to +185°F)

• Certifications: CSA/NRTL/C Class I, Division 2

Key Features

• Comprehensive Real-Time Monitoring: Provides a centralized view of critical data, including Keyphasor® signals, tachometer readings, and detailed alarm/event logs.

• Versatile Mounting Options: Supports face-mount (directly on the rack), panel-mount, or remote mounting. Standard remote cables reach up to 100 ft, with extensions up to 4000 ft available using external power.

• Extreme Environmental Resilience: Engineered to function in a wide temperature range from -40°C to +85°C, making it suitable for unconditioned industrial shelters and outdoor enclosures.

• Slim Form Factor: The compact, single-slot design allows for easy installation into any standard 3500 rack without displacing essential monitoring modules.

• Operational Oversight: Enhances site safety by offering a user-friendly interface that clearly visualizes shaft and bearing conditions for rapid diagnostic assessments.
