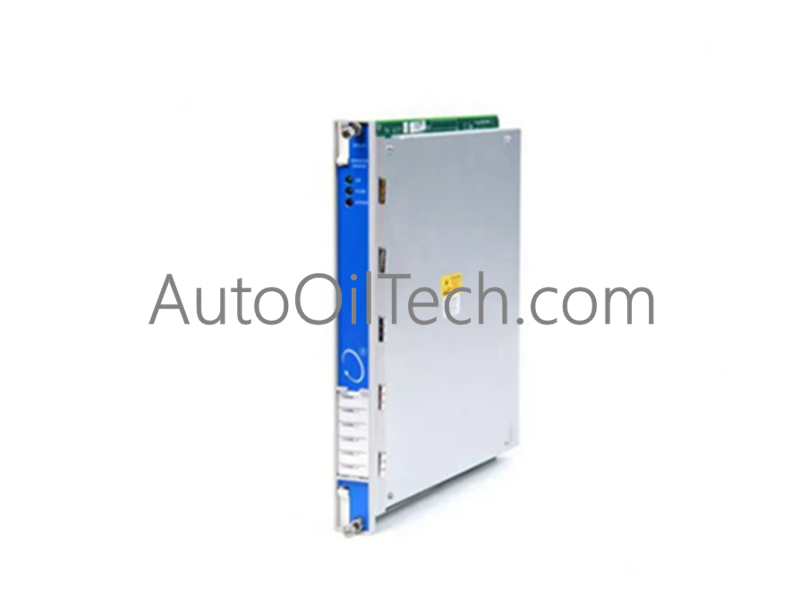

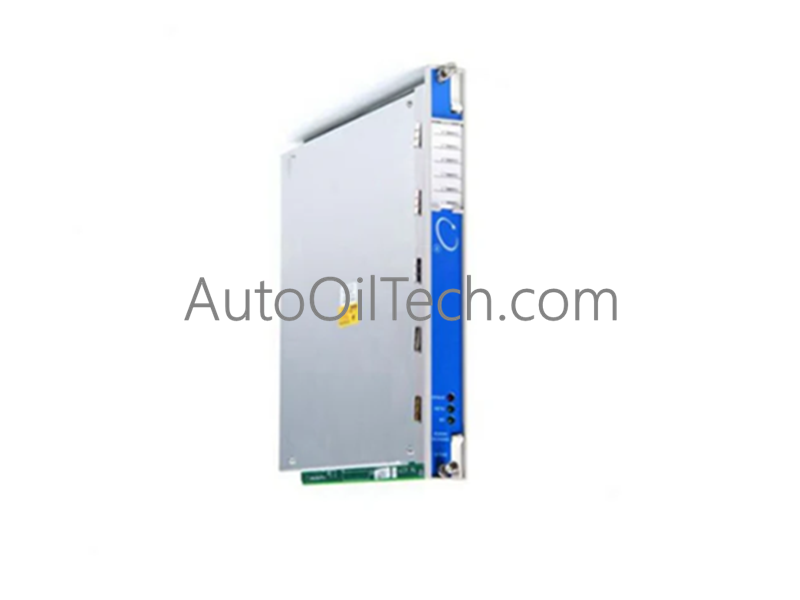

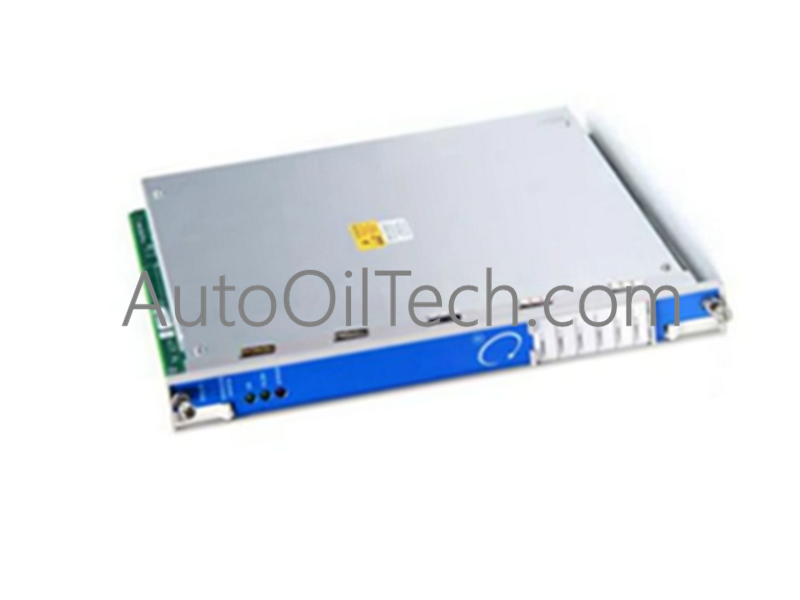

Bently Nevada 126623-01 Vibration I/O Module

Quick Overview

The 126623-01 is a high-precision Vibration I/O Module specifically engineered for the Aero GT monitoring system. This specialized module captures high-resolution dynamic signals from accelerometers and proximity probes, converting raw data into actionable insights like frequency spectra and phase information.

Technical Data

• Resolution: 16-bit

• Communication: RS-485 Interface

• Operating Temp: -40°C to +85°C

• Enclosure Rating: IP67 (Dust & Water Ingress Protection)

• Dimensions: 12.0 cm (L) x 6.2 cm (W) x 1.5 cm (H)

• Weight: 0.4 kg

• Compatibility: Bently Nevada Aero GT System

Key Features

• Advanced Signal Processing: Utilizes specialized digital algorithms to extract critical machinery features, including time waveforms and orbit data, directly from raw vibration inputs.

• Aero GT Optimization: Seamlessly integrates with the Aero GT architecture, providing a unified platform for monitoring aeroderivative gas turbines and auxiliary equipment.

• Industrial Hardening: The IP67-rated enclosure ensures reliable operation in areas exposed to dust, moisture, and high-pressure washdowns, common in power generation and offshore sites.

• Flexible Sensor Support: Capable of interfacing with a variety of transducer types, allowing for simultaneous monitoring of casing vibration and shaft relative motion.

• Space-Efficient Design: Its extremely compact form factor enables installation in tight spaces, facilitating decentralized monitoring closer to the actual sensor locations.
