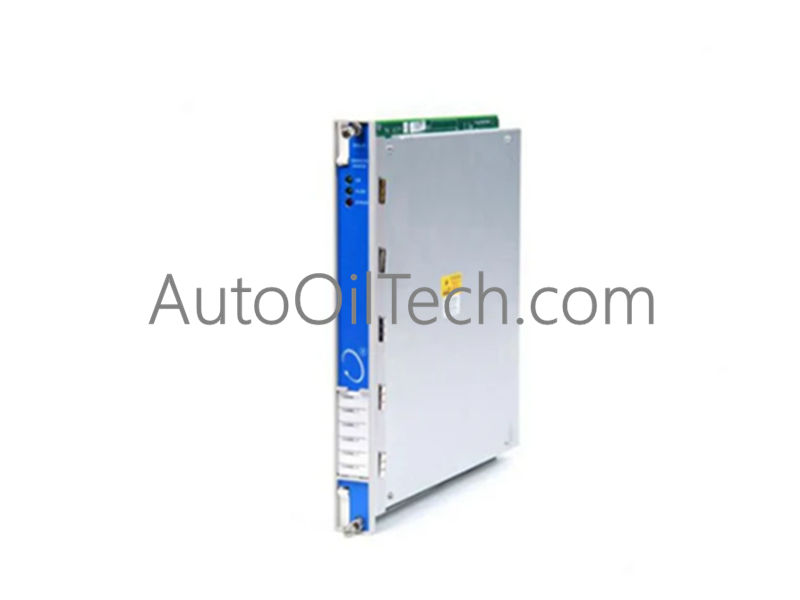

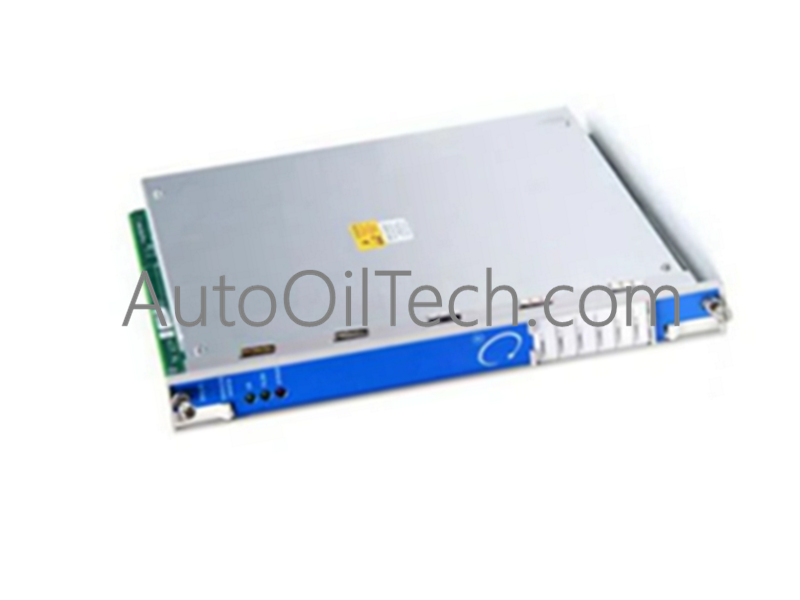

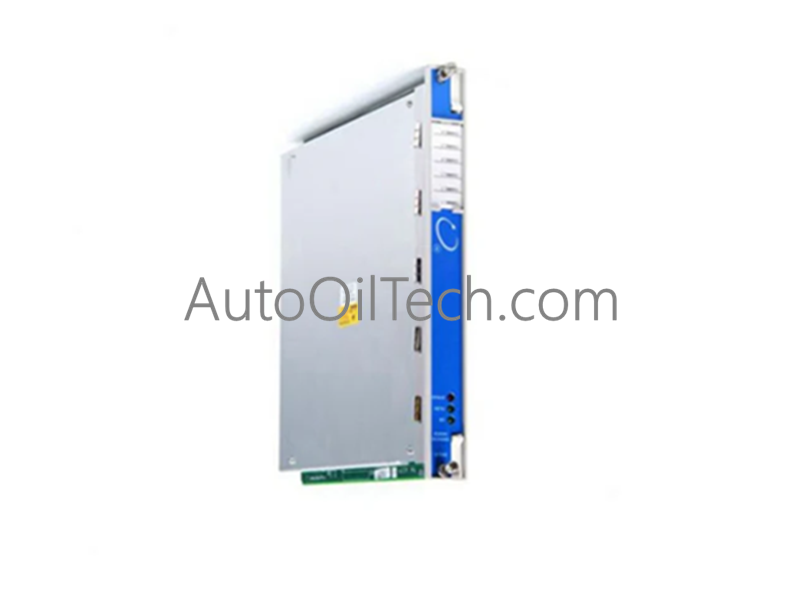

The125744-01is aTMR Rack Interface Module (RIM)designed for the Bently Nevada 3500 Machinery Protection System. Specifically engineered forTriple Modular Redundancy (TMR)setups, it serves as the primary gateway for rack configuration and machinery data retrieval. While it is not part of the critical monitoring path, it is a mandatory component for system health, providing the essential logic needed to compare monitor channels and flag discrepancies in redundant configurations.
Technical Data
Part Number:125744-01
System Series:Bently Nevada 3500/20
Redundancy Type:TMR (Triple Modular Redundant)
Operating Temp:-30°C to +65°C (-22°F to +150°F)
Storage Temp:-40°C to +85°C (-40°F to +185°F)
Slot Requirement:Occupies Slot 1 (adjacent to Power Supplies)
Key Features
TMR Channel Comparison:In TMR configurations, the module performs real-time comparison between monitor outputs, identifying and flagging any data discrepancies to maintain high-integrity protection.
Primary Configuration Hub:Acts as the essential interface for connecting the 3500 Rack Configuration Software, allowing for full system setup and parameter adjustments.
Machinery Data Retrieval:Facilitates the extraction of static and dynamic machinery data for use in Bently Nevada diagnostics and management software.
Processor Compatibility:Seamlessly integrates with advanced Bently Nevada processors including TDXnet, TDIX, and DDIX for efficient data handling.
System Integrity Support:Provides essential rack-level functions such as system-wide alarm resets and status monitoring, ensuring the rack operates as a unified protection unit.
