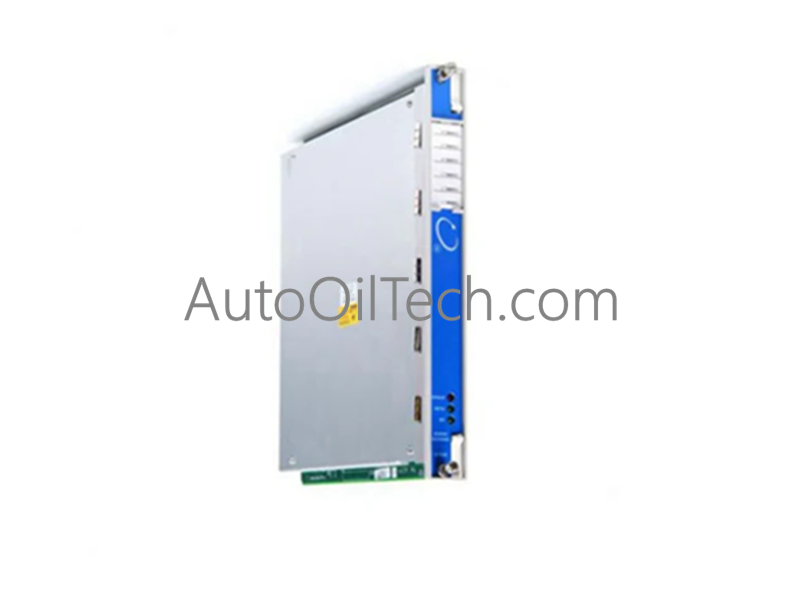

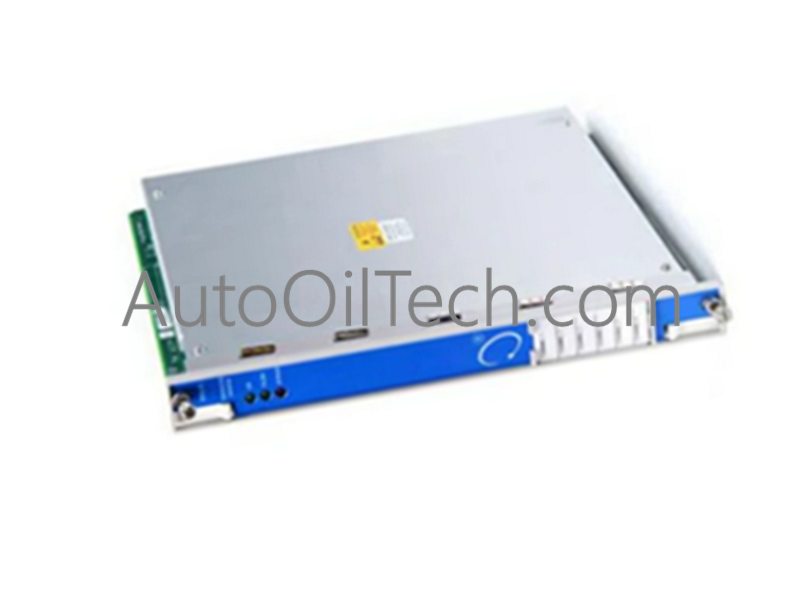

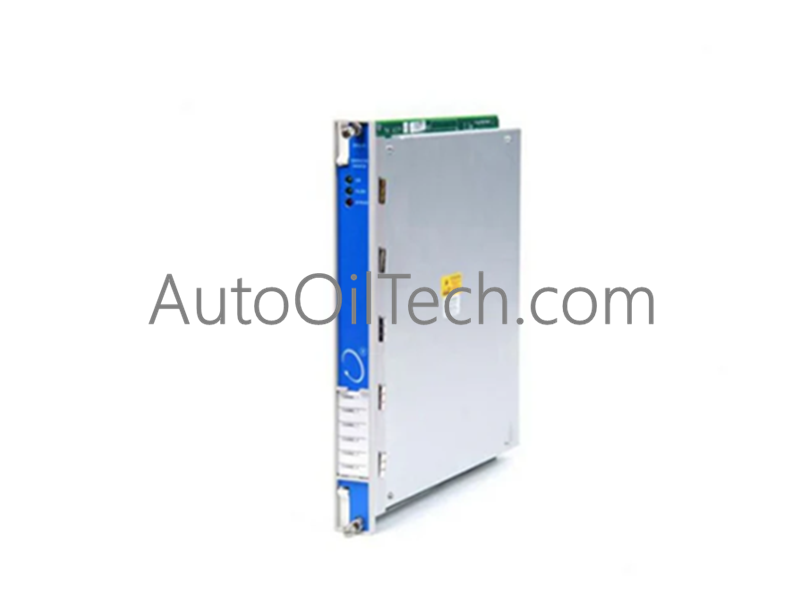

Bently Nevada 124240-01 Seismic Monitoring I/O Module

Quick Overview

The 124240-01 is a high-performance Seismic Monitor I/O Module designed for the Bently Nevada 3500 Series machinery protection system. This module serves as the critical interface between the field sensors and the monitor, specializing in seismic data acquisition.

Technical Data

• Model: 124240-01

• Input Channels: 4 Independent Channels

• Input Signal Types: Proximity & Seismic Transducers

• Output Signal: 4-20 mA Loop

• Operating Temp: -40°C to +85°C (-40°F to +185°F)

• Dimensions: 241.3 mm (H) x 24.4 mm (W) x 99.1 mm (D)

• Rack Space: 1 Full-Height Rear Slot

• Weight: 0.20 kg (0.44 lbs)

Key Features

• Quad-Channel Monitoring: Simultaneously processes four independent inputs, allowing for comprehensive vibration surveillance of a machine train.

• Dual Transducer Support: Offers the flexibility to monitor relative shaft vibration (proximity) and absolute casing vibration (seismic) within the same I/O architecture.

• Adjustable Sensitivity: Features configurable sensitivity settings, ensuring compatibility with a wide variety of industrial vibration sensors and application requirements.

• Predictive Maintenance Catalyst: By identifying vibration anomalies in real-time, the module enables condition-based maintenance, significantly reducing unplanned downtime.

• Ruggedized Rear Design: Built to the highest industrial standards for high-temperature resilience, ensuring stable signal conditioning in demanding plant environments.
