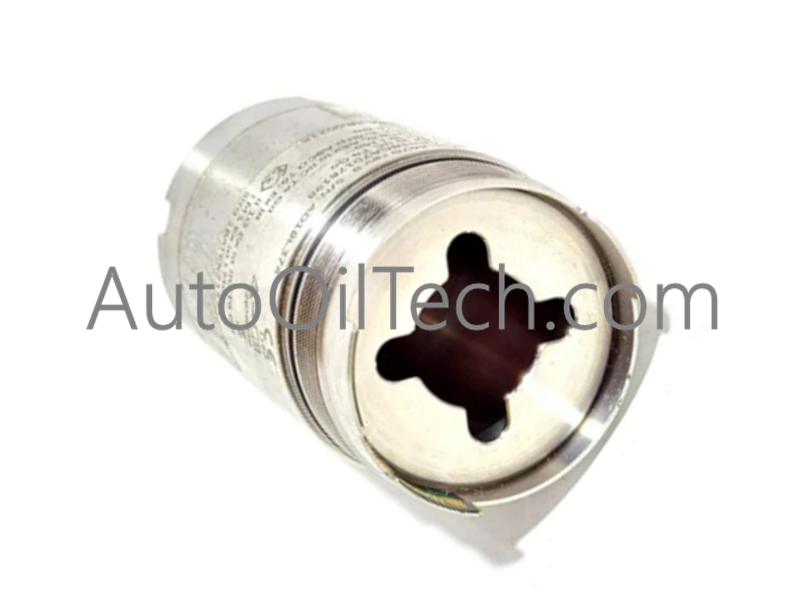

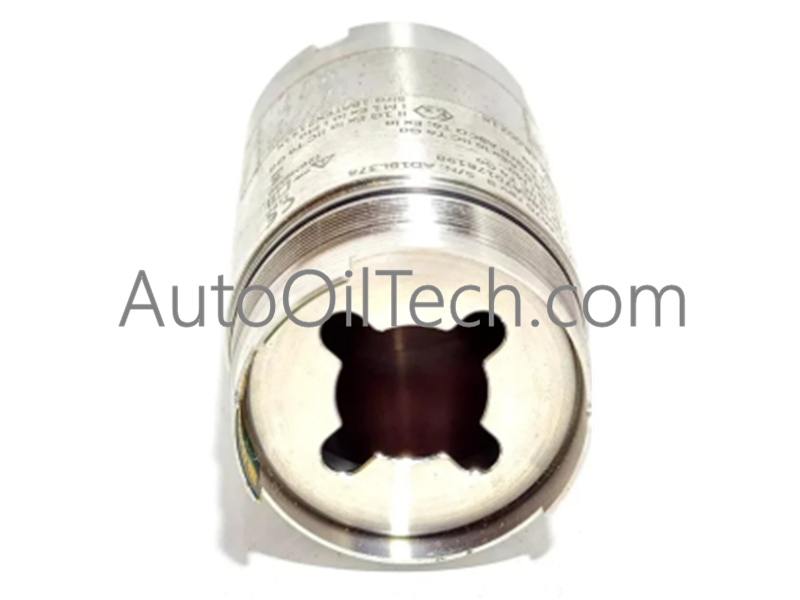

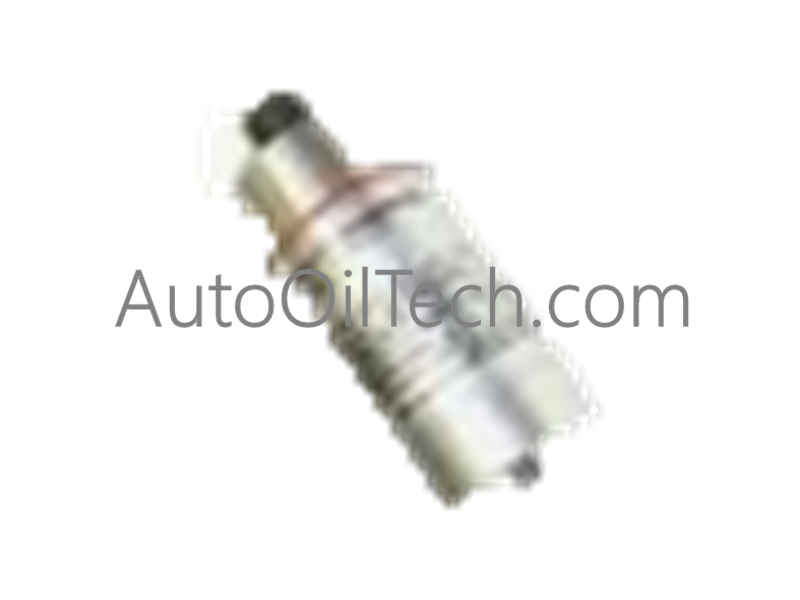

TheBently Nevada 121M6470is a high-performance, wireless triaxial vibration and temperature sensor from theRanger Proseries. It enables cost-effective, remote monitoring of rotating assets—such as motors, pumps, and gearboxes—by eliminating the need for expensive cabling infrastructure.
Technical Specifications
Model:121M6470 (Ranger Pro Series)
Measurement Type:Triaxial Vibration (X, Y, Z axes) and Casing Temperature
Wireless Protocols:Dual support for ISA100 and WirelessHART
Data Resolution:Up to 3200 spectral lines for high-precision FFT analysis
Frequency Range:5 Hz to 2000 Hz for velocity spectra
Temperature Range:-40°C to 120°C with 0.1°C resolution
Battery Life:Replaceable battery lasting up to 5 years (sampling dependent)
Environmental Rating:Intrinsically Safe (Class I, Division 1)
Weight & Size:230 grams; Approx. 88 mm x 40 mm
Interfaces:Modbus, Generic Client Interface (GCI), and HART IP via gateways
Key Features & Engineering Advantages
True Triaxial Intelligence:Monitors vibration in three orthogonal planes simultaneously, capturing complex fault signatures like unbalance, misalignment, and structural looseness that single-axis sensors might miss.
Dual-Protocol Versatility:Compatible with both ISA100 and WirelessHART standards, allowing the sensor to fit into existing industrial wireless mesh networks regardless of the manufacturer.
PeakDemod Technology:Features specialized signal processing (PeakDemod spectrum) to isolate high-frequency impact energy, making it highly effective for early-stage detection of rolling element bearing defects.
Intrinsically Safe Design:Certified for Class I, Division 1 areas, allowing for permanent installation in explosive or hazardous environments typical of oil, gas, and chemical processing.
Flexible Installation:Supports direct stud mounting for maximum frequency response or tethered mounting options for assets where surface temperatures exceed standard limits.
